Overview

An intrastate route, Interstate 45 joins Houston and the Texas Gulf Coast with the Dallas/Ft. Worth Metroplex. Beginning on Galveston Island, IH 45 replaced U.S. 75 along the Gulf Freeway, a pre-Interstate era highway constructed between Galveston and Houston. Angling northwest, the freeway passes by NASA’s Johnson Space Center toward South Houston, Park Place and Downtown Houston.

Within central Houston, IH 45 briefly runs side by side with IH 10 and U.S. 90. This will further change with the North Houston Highway Improvements Project, which relocates IH 45 into dual freeway configuration with IH 69 / U.S. 59 along the Eastex Freeway along the east side of Downtown. IH 45 will also extend further adjacent to IH 10 north of Downtown before joining the North Freeway to Westfield, Spring, The Woodlands and other northern Houston suburbs.

Beyond Conroe, IH 45 transitions to a rural freeway through Sam Houston National Forest. Exiting the forest, the freeway shifts westward from Huntsville to Madisonville while remaining rural to Coriscana. U.S. 287 combines with the freeway between Corsicana to Ennis, where it branches northwest to Waxahachie, Mansfield and Fort Worth. With increasing industrial development, IH 45 proceeds from U.S. 287 to Ennis, Ferris, Wilmer and south Dallas.

IH 45 concludes at IH 30 and U.S. 75 (Central Expressway) by Deep Ellum and Downtown Dallas. The southern 1.427 miles of U.S. 75 double as unsigned IH 345. Exit numbers continue northward along the IH 345 segment to Spur 366 (Woodall Rogers Freeway), where they reset using a sequential system along the remainder of U.S. 75 northward.

History

Approved by the Texas State Highway Commission in 1962 with 286 miles, IH 45 was an original Interstate Highway.1 Authorized in 1956, the section of IH 45 in Navarro County near Corsicana represents the first Interstate Highway contract to be let in Texas.2 However, the U.S. 75 / Gulf Freeway portion of IH 45 predated the Interstate system, which opened in September 1948. The Gulf Freeway was fully signed as IH 45 in 1971 following a series of upgrades to Interstate standards.

Construction started on the North Freeway segment of IH 45 in Houston in December 1959. It was completed north to Spring by February 1963. Succeeding sections of IH 45 were completed in the 1960s, including the stretch from Conroe to Madisonville, the section from Madisonville to Centerville, and the bypass around Corsicana.

During the early 1970s, the section from Centerville to Buffalo opened. A 12 mile segment of IH 45 between Fairfield and Streetman in Freestone County  opened to traffic on October 13, 1971. Remaining sections, including the relocated Central Expressway in Dallas and the portion of IH 45 connecting Buffalo, Richland and Fairfield, were built in the mid to late 1970s.3

Route Information

  • North End – Dallas, TX

  • South End – Galveston, TX

  • Branch Routes – 1

  • Mileage – 284.91

  • Cities – Galveston, Texas City, Houston, Huntsville, Corsicana, Ennis, Dallas

  • JunctionsI-610 I-10 I-69 I-20 I-30 I-345

Source: December 31, 2018 Interstate Route Log and Finders List

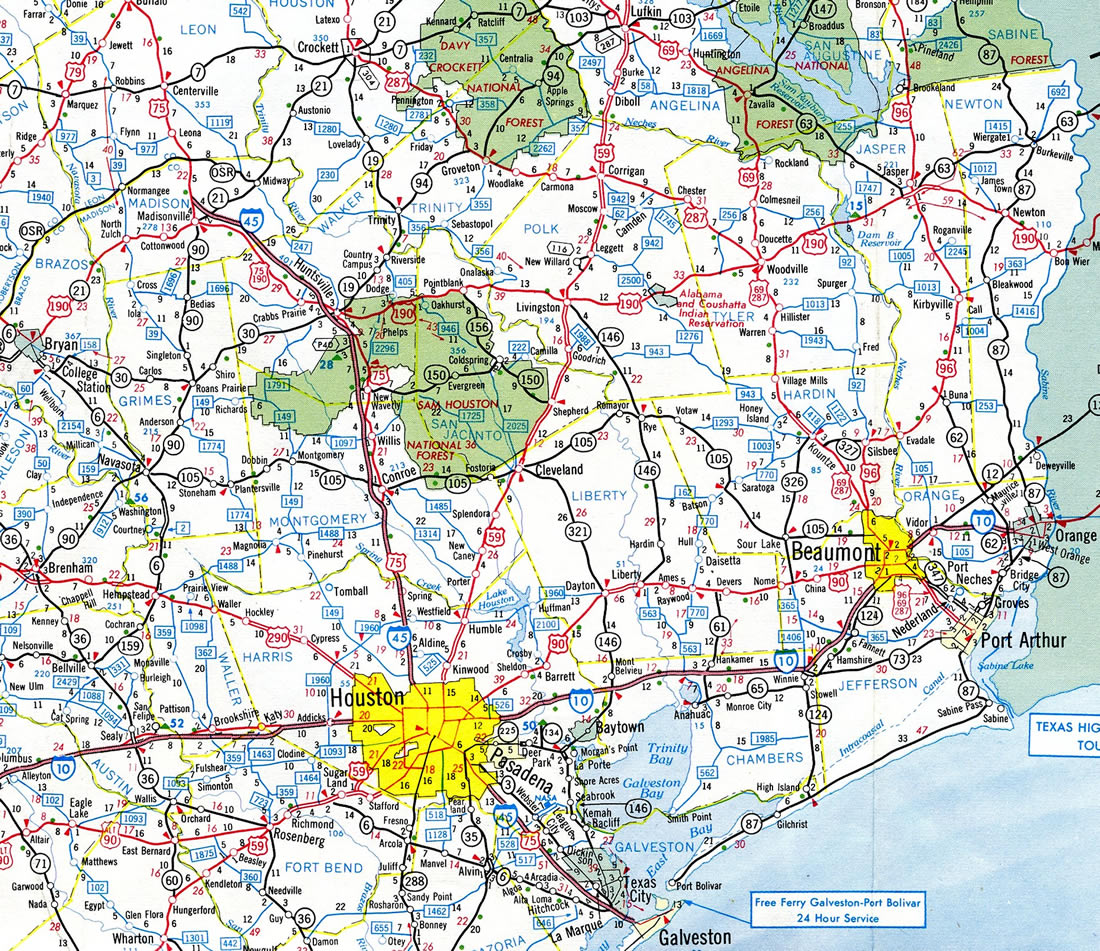

Southeastern Texas – 1967 Texas Official Highway Map

IH 45 ran north from Galveston to Madisonville by 1964. The route was extended north to Buffalo in 1971.

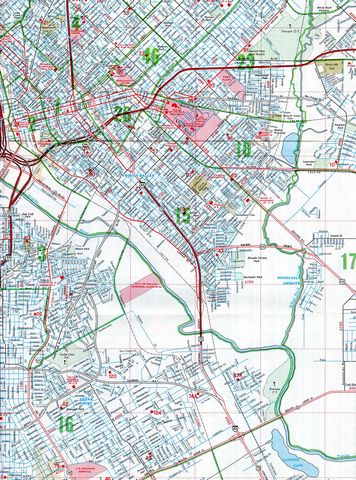

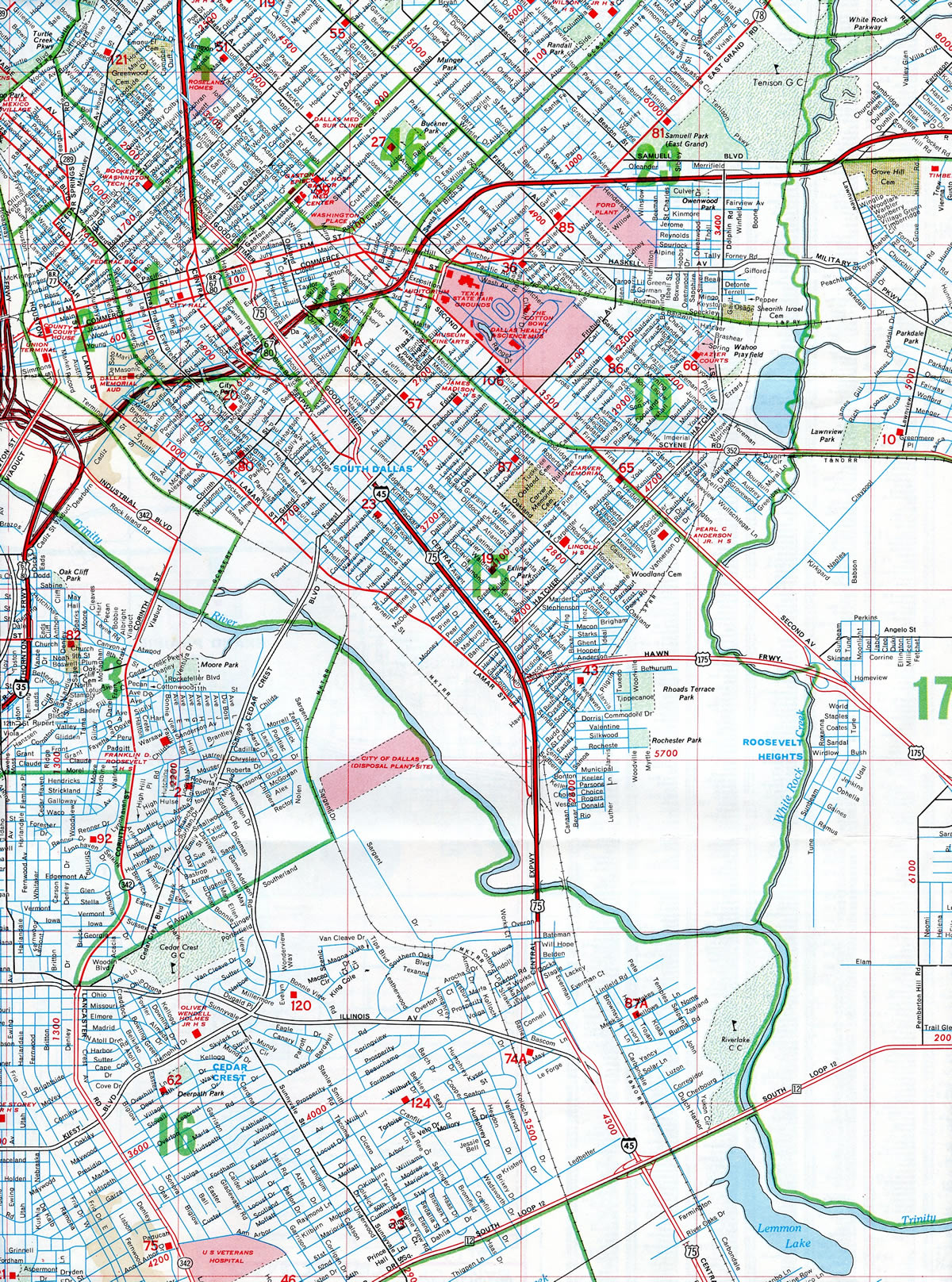

Later renamed to the S.M. Wright Freeway, IH 45 originally followed the South Central Expressway toward Downtown Dallas. The freeway between Grand Avenue and SH 310 was completed on August 15, 1956. It was bypassed by a new alignment of IH 45 in 1976. The portion of freeway north of SH 310 is slated for removal by 2020.4

Interstate 45 Extension

Despite the U.S. 75 extending north along a freeway to McKinney and U.S. 69 at Sherman, there are no formal plans to extend Interstate 45 northward from Dallas into Oklahoma. A section in the ISTEA (1991) legislation however indicated that U.S. 69 in the Sooner State would become part of the Interstate highway system once it was upgraded to Interstate standards. ISTEA Section 1074, Designation of United States Route 69, states:

Notwithstanding any other provision of law, upon the request of the Oklahoma State highway agency, the Secretary shall designate the portion of United States Route 69 from the Oklahoma-Texas State line to Checotah in the State of Oklahoma as a part of the Interstate System pursuant to section 139 of title 23, United States Code.

A subsequent unrealized plan was to construct a new segment of the Oklahoma Turnpike along the U.S. 69 corridor.

Highway Guides

North End I-30 I-345 US 75 – Dallas, Texas

IH 45 North at I-30 I-345 US 75

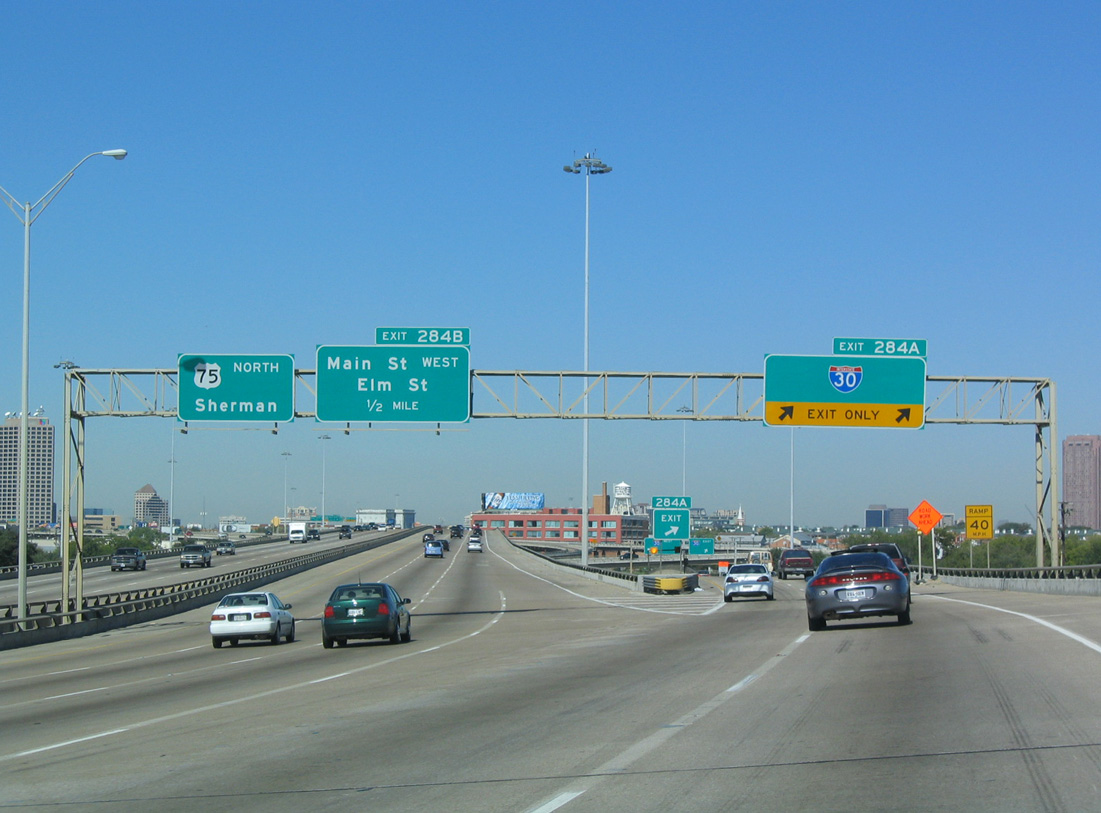

IH 45 north at IH 30/345 - Dallas, TX

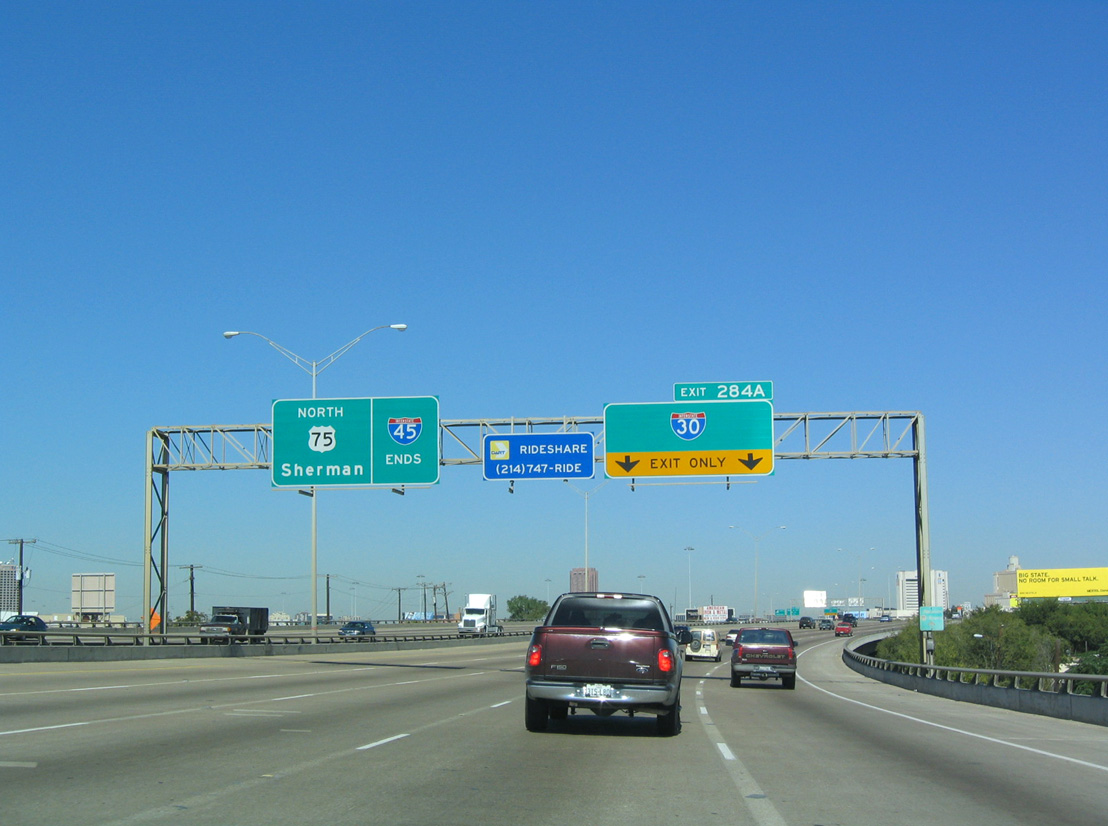

IH 45 north ends opposite U.S. 75, which extends northward along the Central Expressway toward McKinney and Sherman. Exit 284A departs next for IH 30 to Fort Worth and Texarkana. Photo taken 10/19/03.

IH 45 north at IH 30/345 - Dallas, TX

Exit 284A separates from IH 45 north as IH 345 and U.S. 75 north begin. The Central Expressway forms the east leg of an inner belt freeway network encircling Downtown Dallas. IH 30, IH 35E and SS 366 make up the other three legs. Photo taken 10/19/03.

IH 45 north at IH 30/345 - Dallas, TX

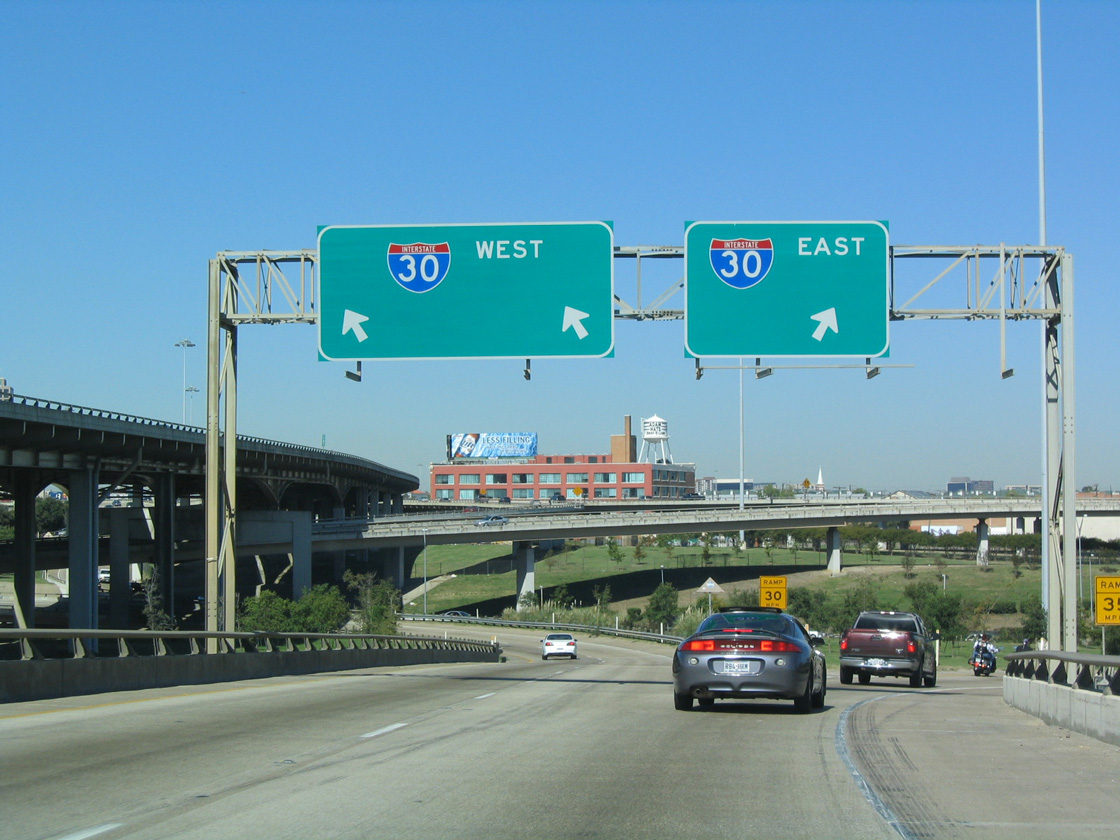

IH 30 crosses the city of Dallas west to Grand Prairie and Arlington and east to Mesquite and Lake Ray Hubbard. IH 30 connects with IH 35E (Stemmons Freeway) nearby at the Mixmaster Interchange. Photo taken 10/19/03.

I-345 US 75 South at I-30 IH 45

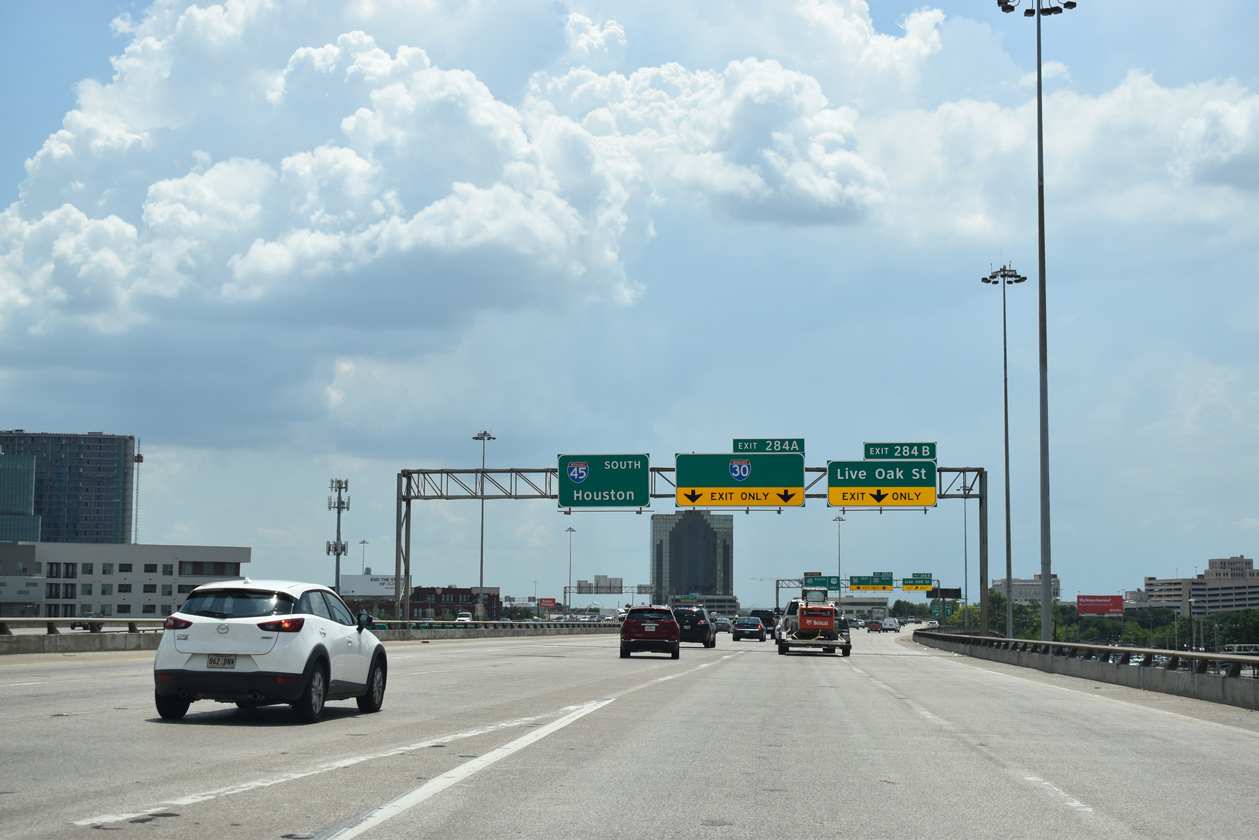

IH 345/US 75 south at IH 30/45 - Dallas, TX

The Central Expressway navigates through an elevated S-curve between Downtown and Deep Ellum, connecting with IH 30 at a symmetrical stack interchange (Exit 284A). Photo taken 08/06/19.

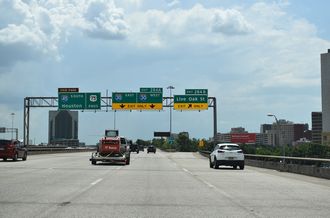

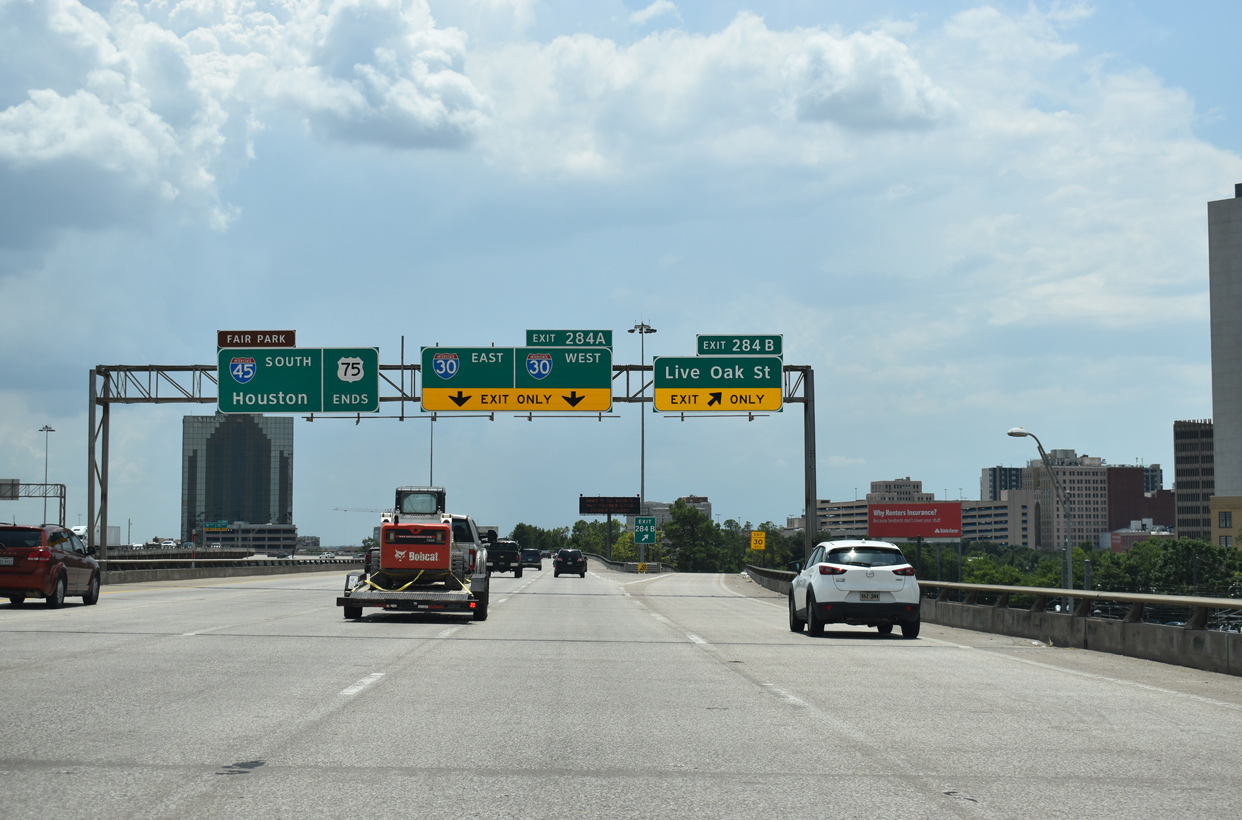

IH 345/US 75 south at IH 30/45 - Dallas, TX

IH 345 and U.S. 75 end opposite IH 45, which extends the freeway southeast along the Trinity River to the city of Hutchins Photo taken 08/06/19.

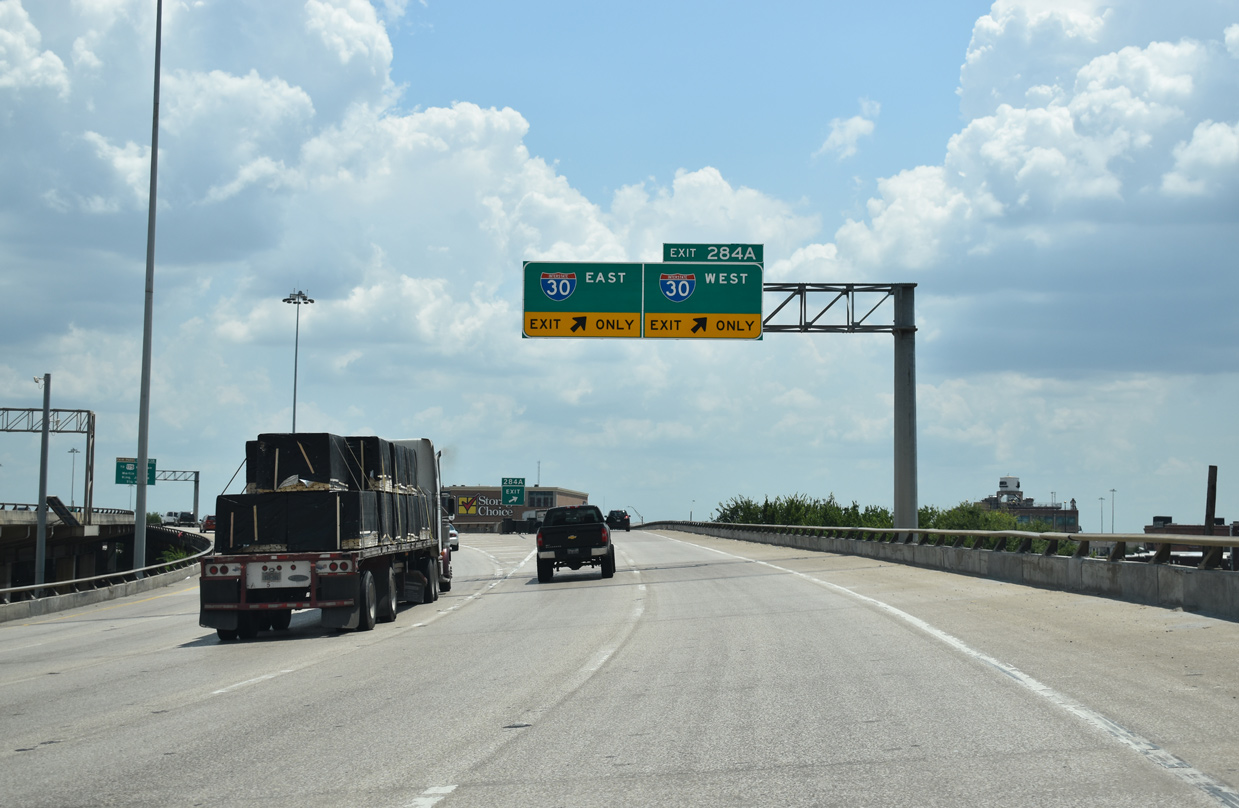

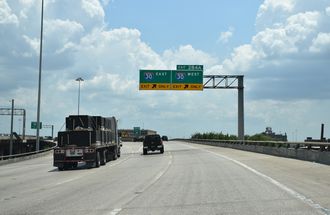

IH 345/US 75 south at IH 30/45 - Dallas, TX
IH 345/US 75 south at IH 30/45 - Dallas, TX

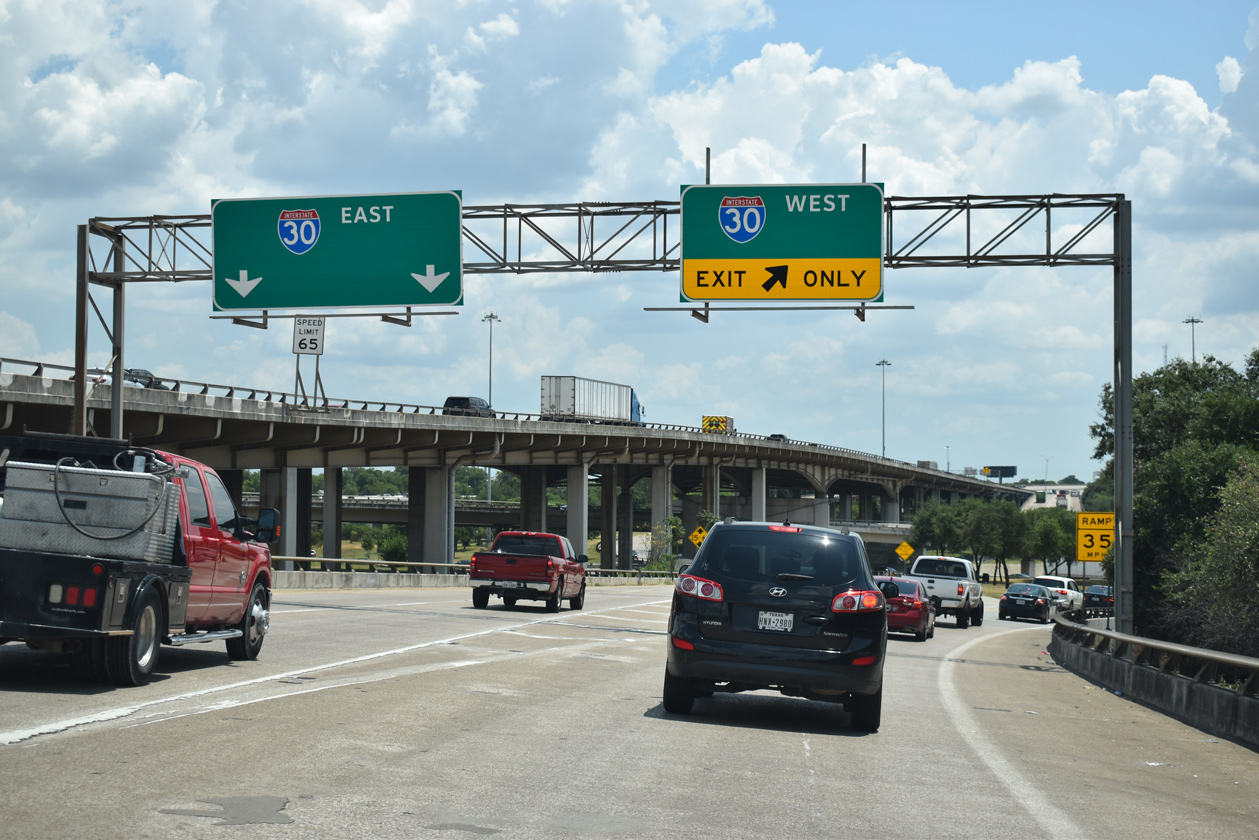

Two lanes lower from the elevated roadway for IH 30 east to Mesquite and west to Arlington and Fort Worth. Photos taken 08/06/19.

I-30 East at IH 45 I-345 US 75

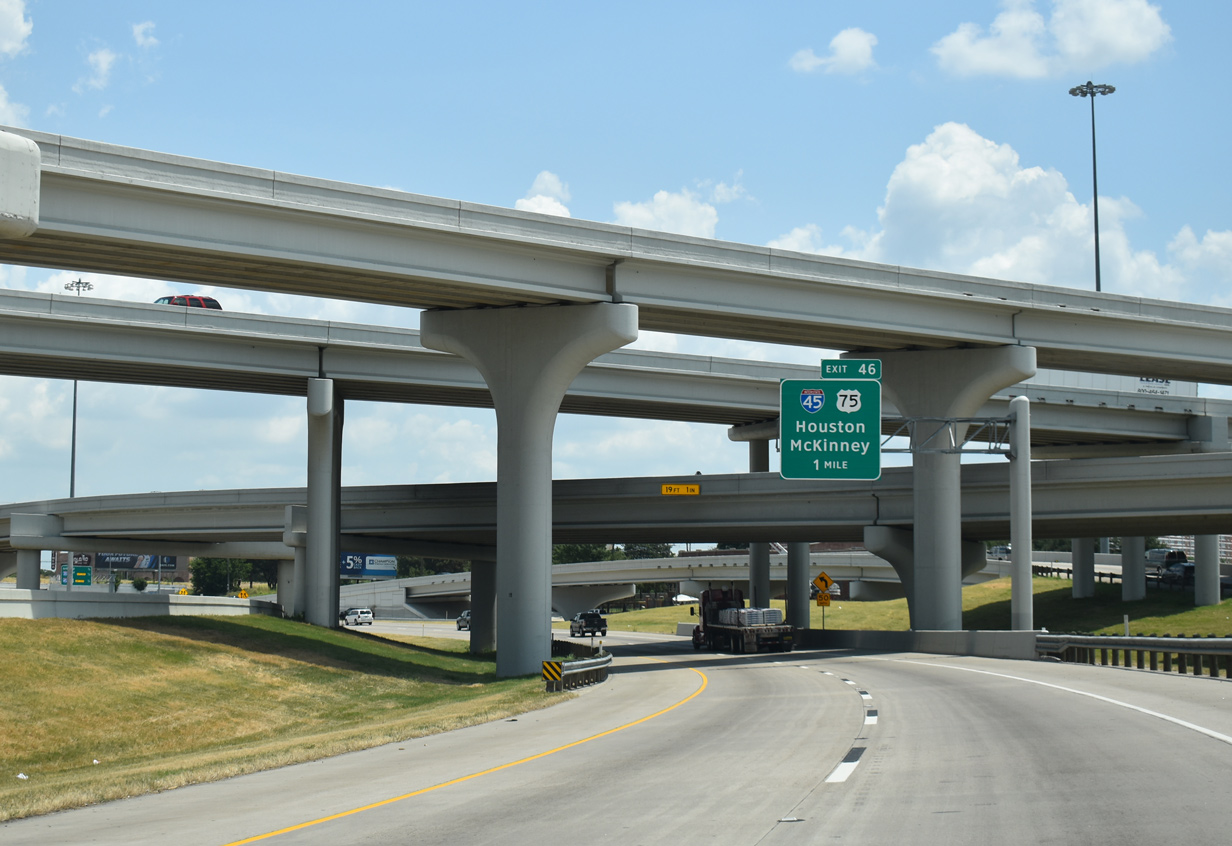

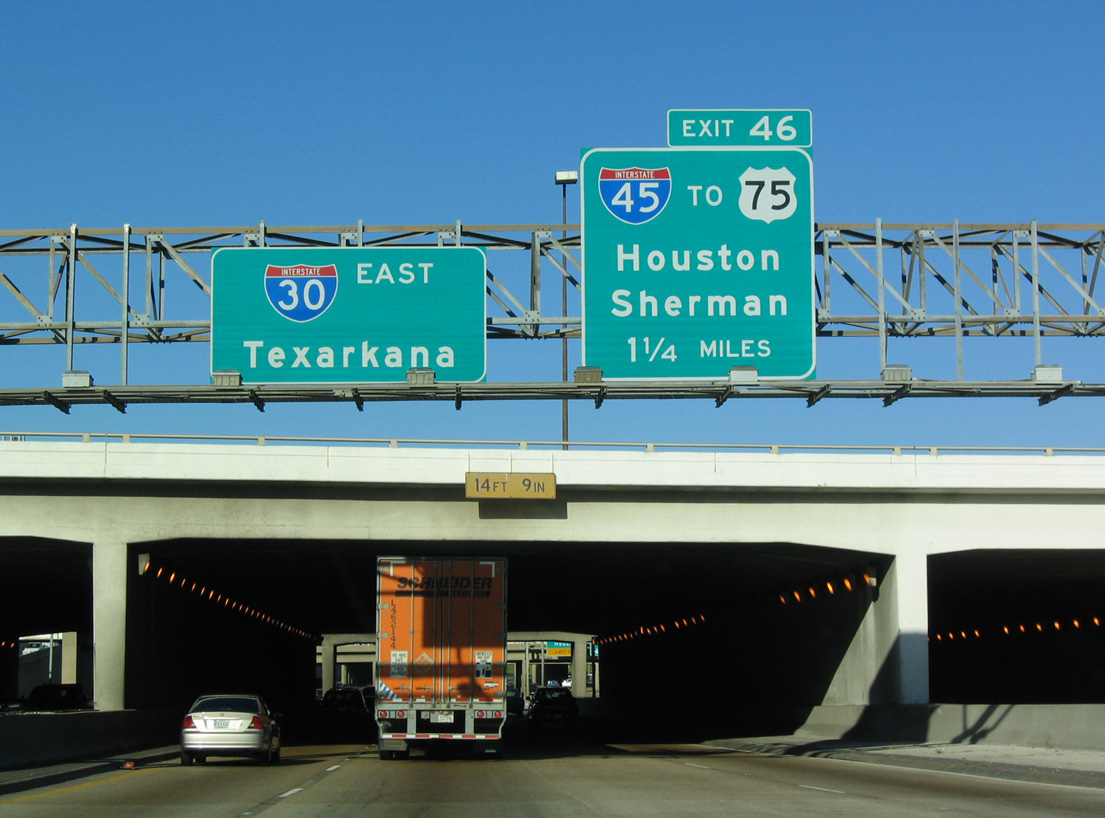

IH 30 east at IH 45/IH 345/US 75 - Dallas, TX

Leaving the Mix Master Interchange with IH 35E (Stemmons Freeway), IH 30 advances east one mile to IH 45 south and IH 345/U.S. 75 (Central Expressway) north. Photo taken 08/06/19.

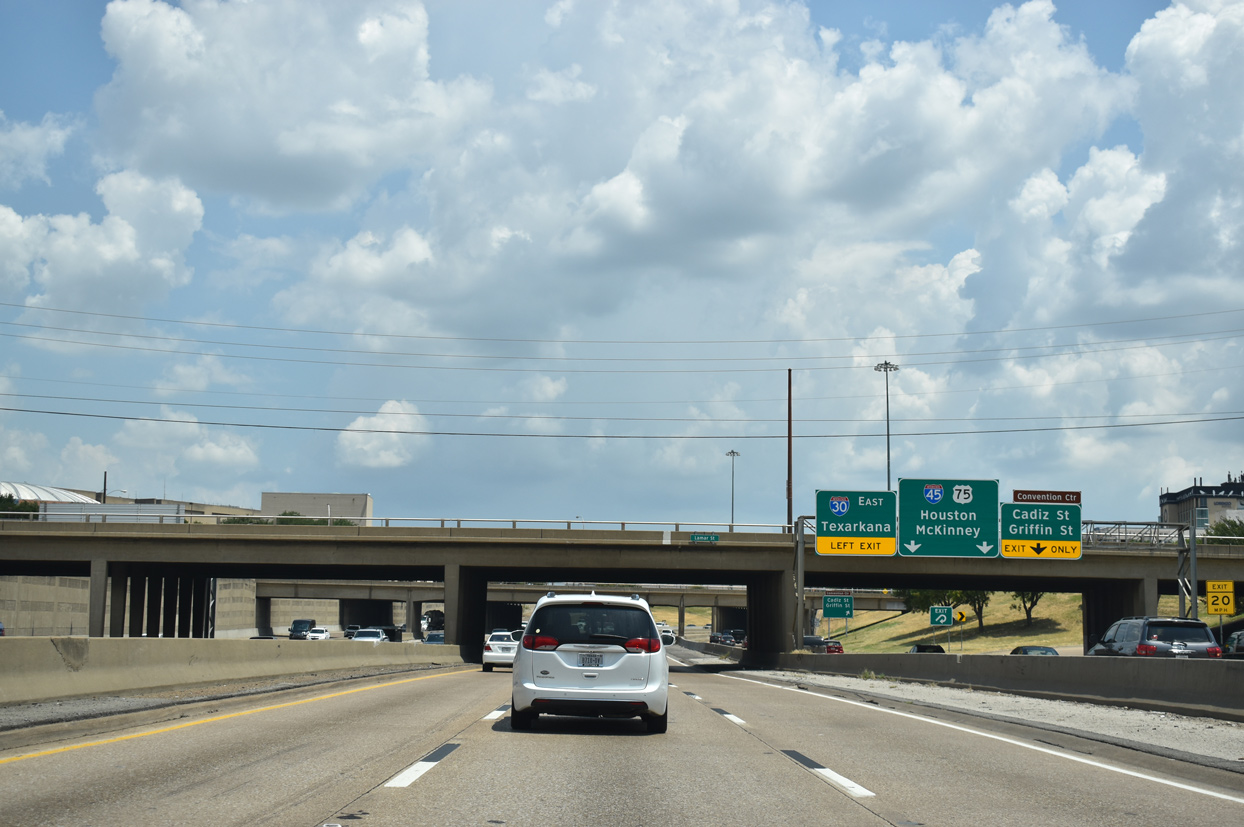

IH 30 east at IH 45/IH 345/US 75 - Dallas, TX

Collector distributor roads accompany both sides of IH 30 from the Mix Master Interchange to Cesar Chavez Boulevard. The next departure point from the mainline is for the Central Expressway north and IH 45 south. Photo taken 08/06/19.

IH 30 east at IH 45/IH 345/US 75 - Dallas, TX

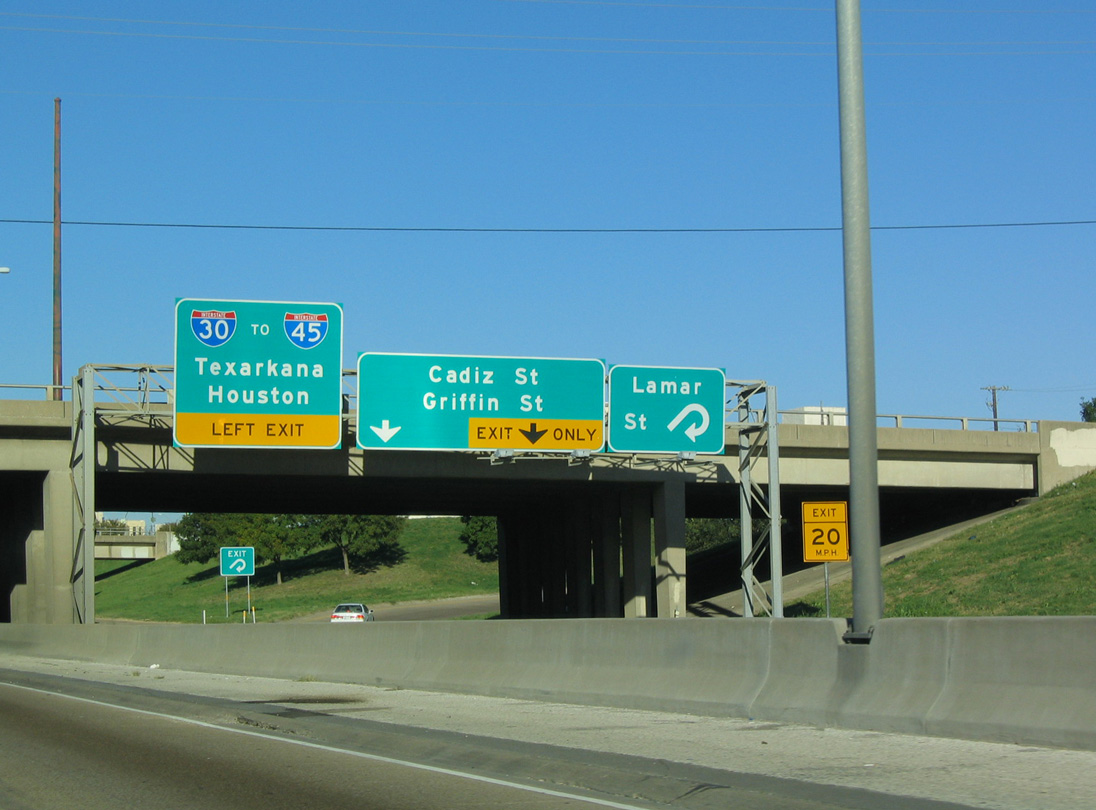

A slip ramp takes motorists on the adjacent c/d roadway onto IH 30 east at the upcoming Griffin and Ervay Street overpasses. Just a quarter mile separates the ingress point with Exit 46, resulting in a weaving traffic pattern. Photo taken 08/06/19.

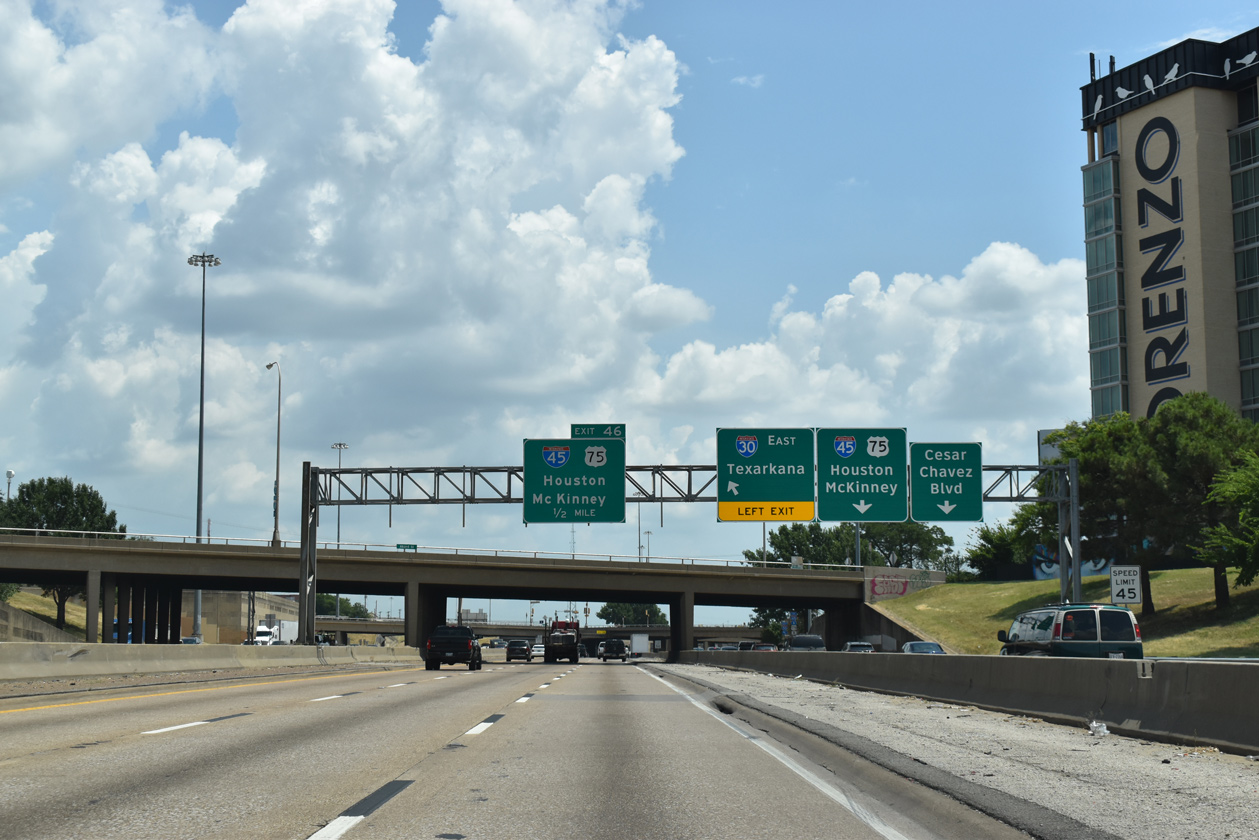

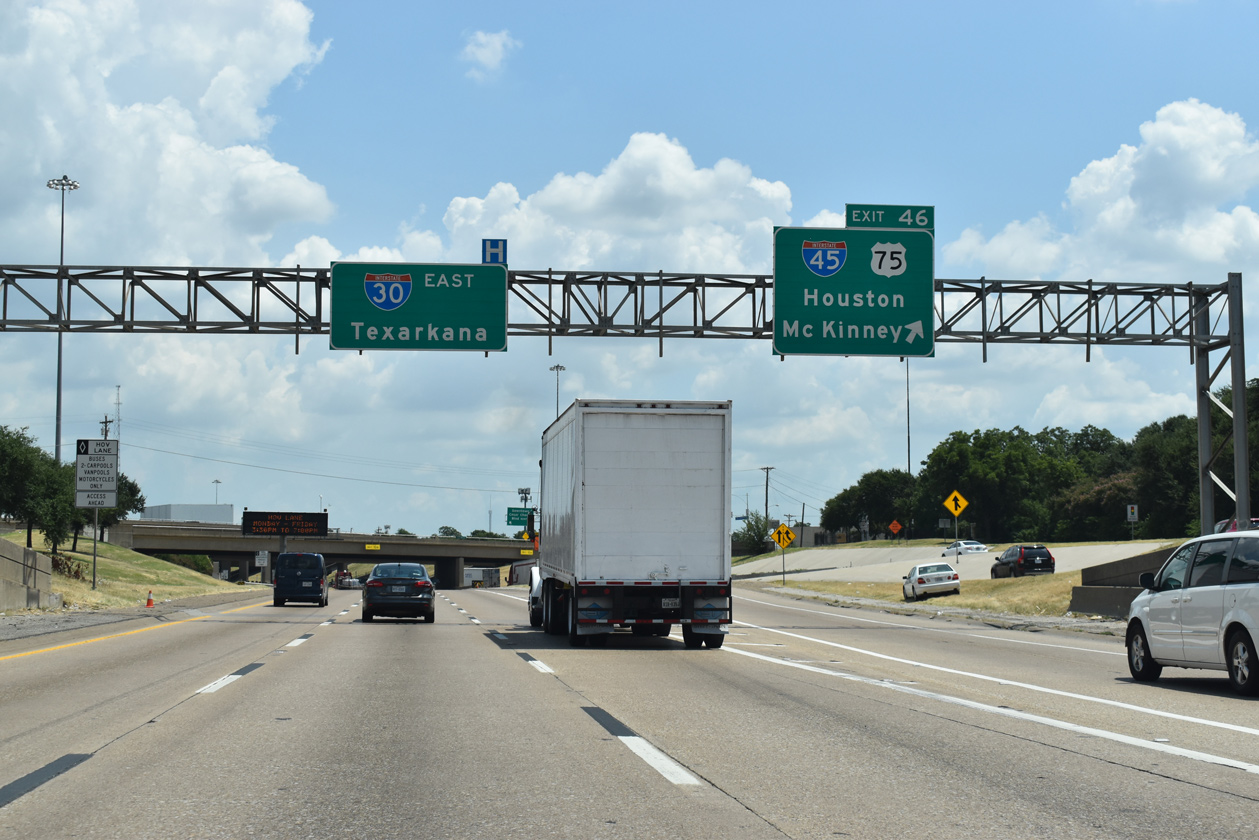

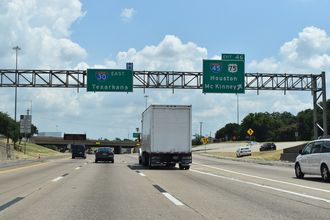

IH 30 east at IH 45/IH 345/US 75 - Dallas, TX

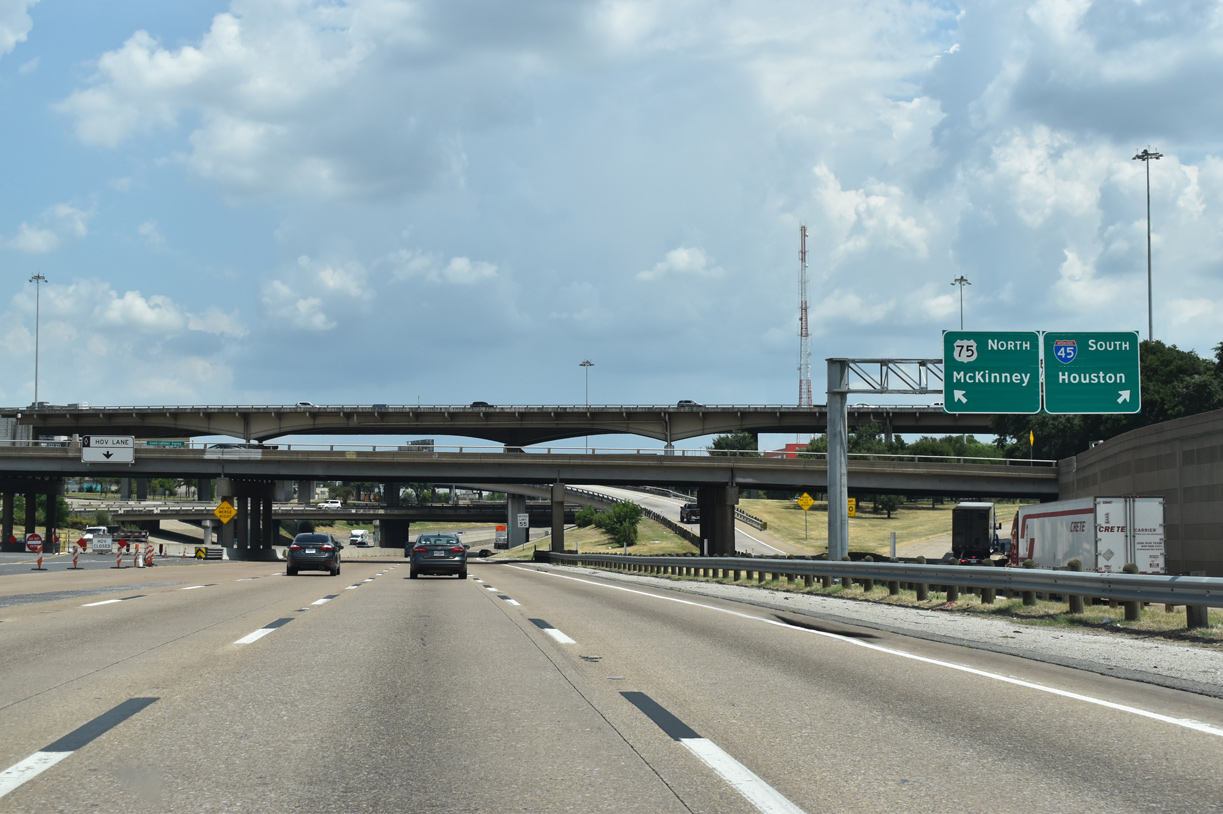

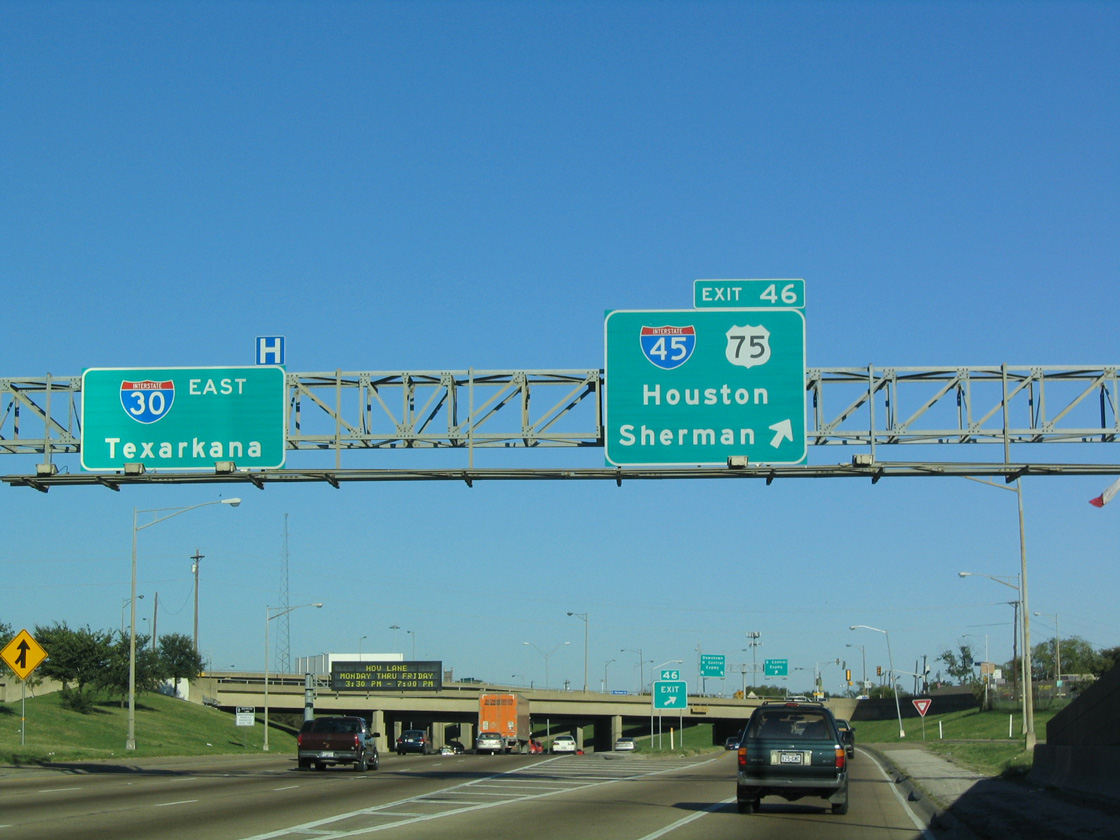

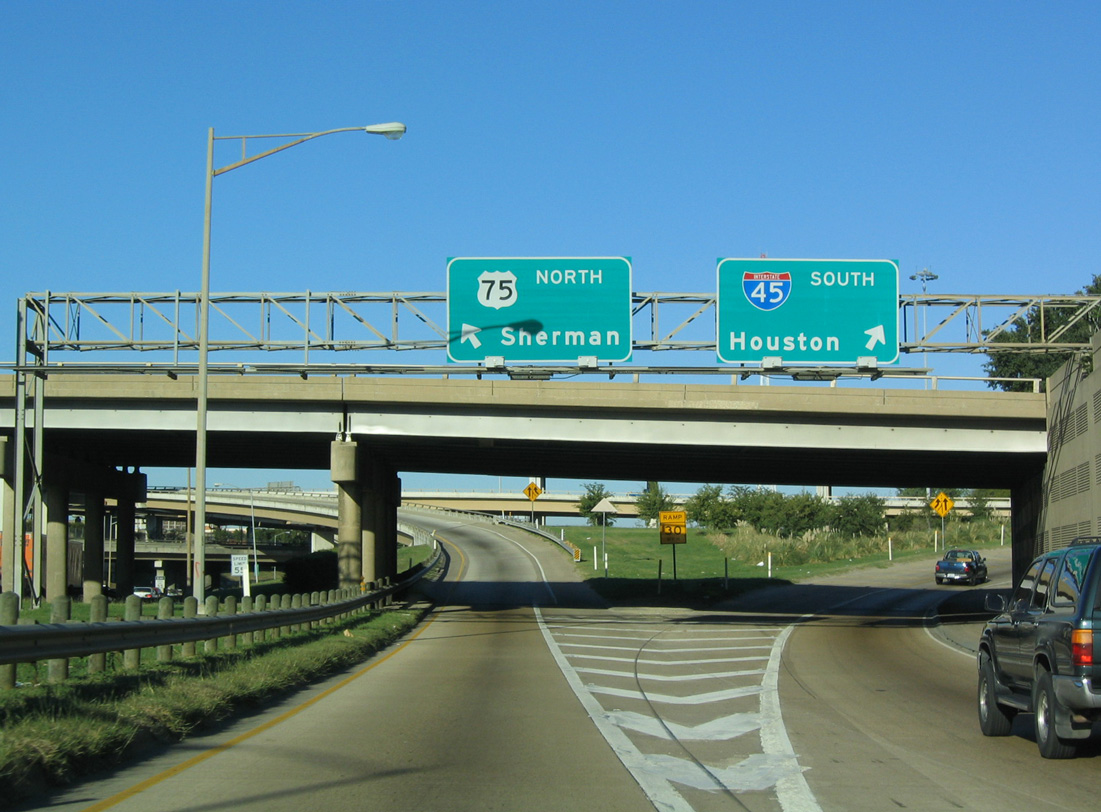

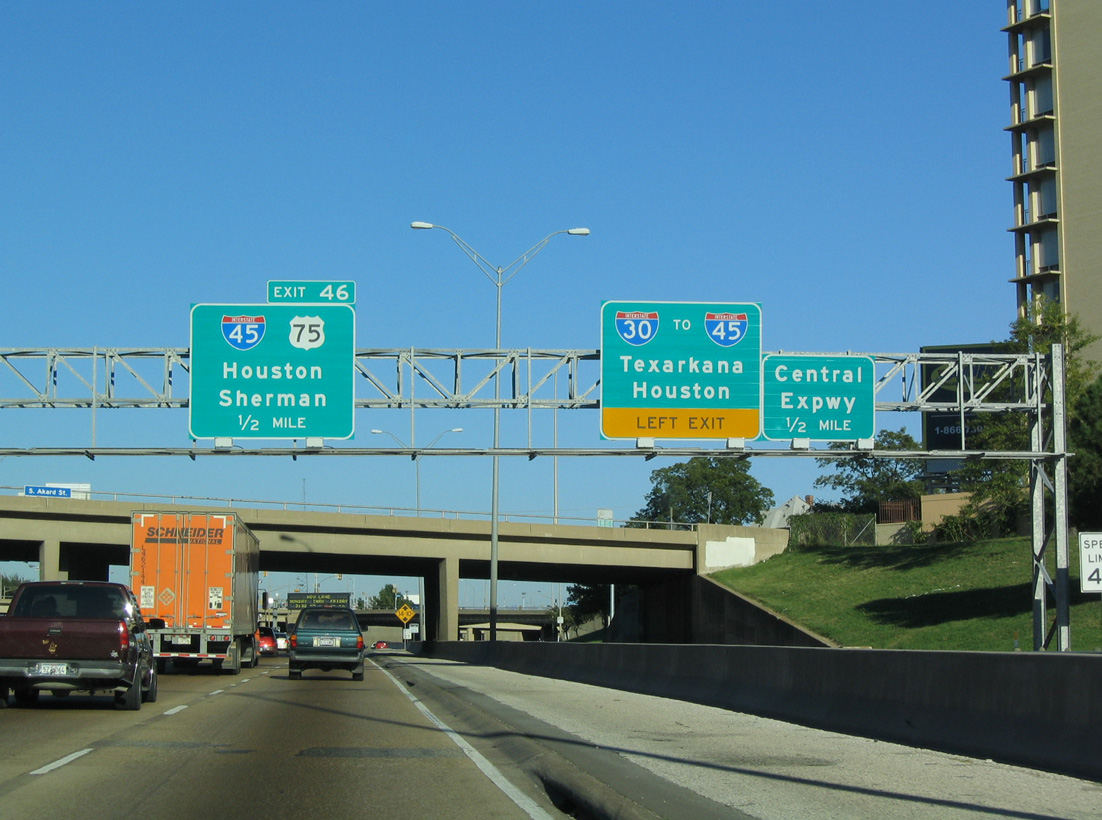

Exit 46 separates from IH 30 east for the distributor roadway to IH 45 south to Ennis, Corsicana and Houston and IH 345/U.S. 75 north to Plano, McKinney and Sherman. Photo taken 08/06/19.

IH 30 east at IH 45/IH 345/US 75 - Dallas, TX

IH 45 ends 285 miles south of the systems interchange with IH 30 in Galveston. IH 345 northbound accompanies U.S. 75 (Central Expressway) for just 1.40 miles to Spur 366 (Woodall Rogers Freeway). Photo taken 08/06/19.

I-30 West at IH 45 I-345 US 75

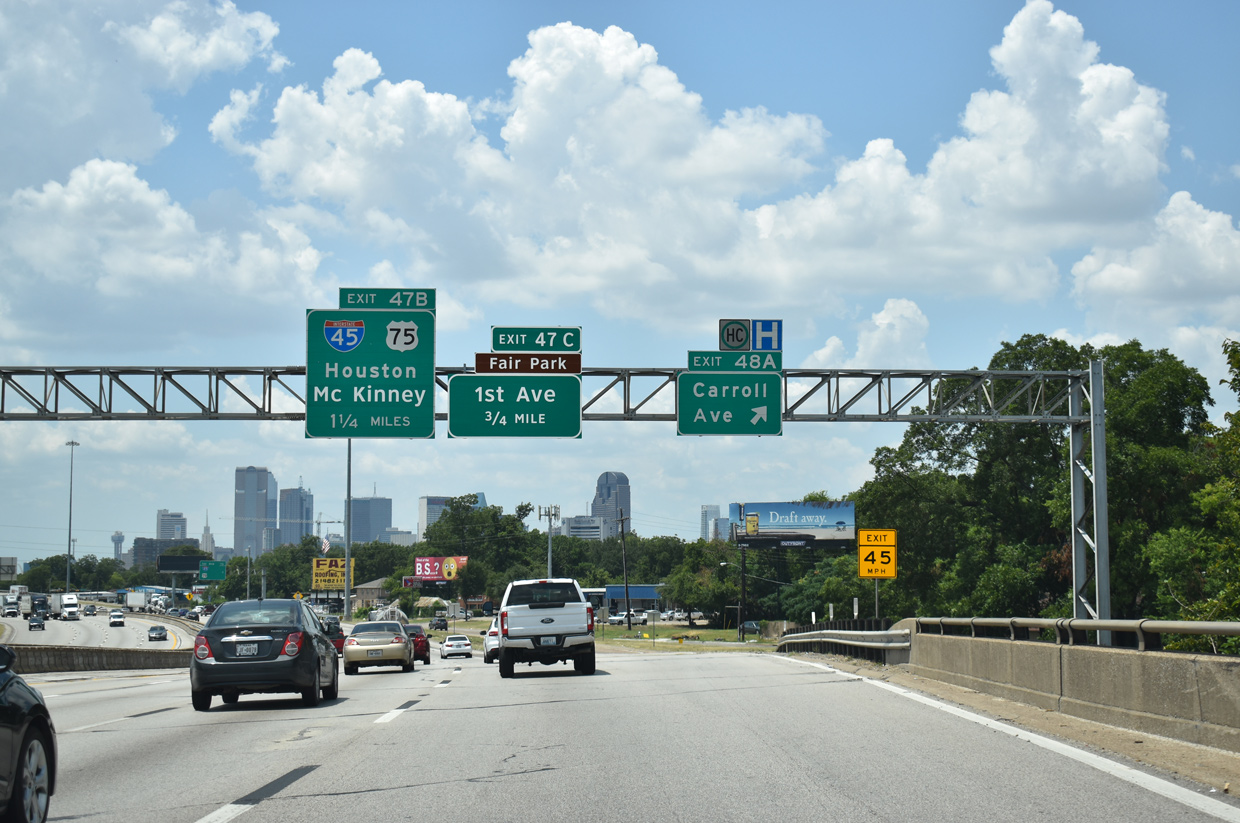

IH 30 west at IH 45/345/US 75 - Dallas, TX

IH 30 winds southwest through the Deep Ellum community on the approach to IH 45 south and U.S. 75 (IH 345) north. Photo taken 08/06/19.

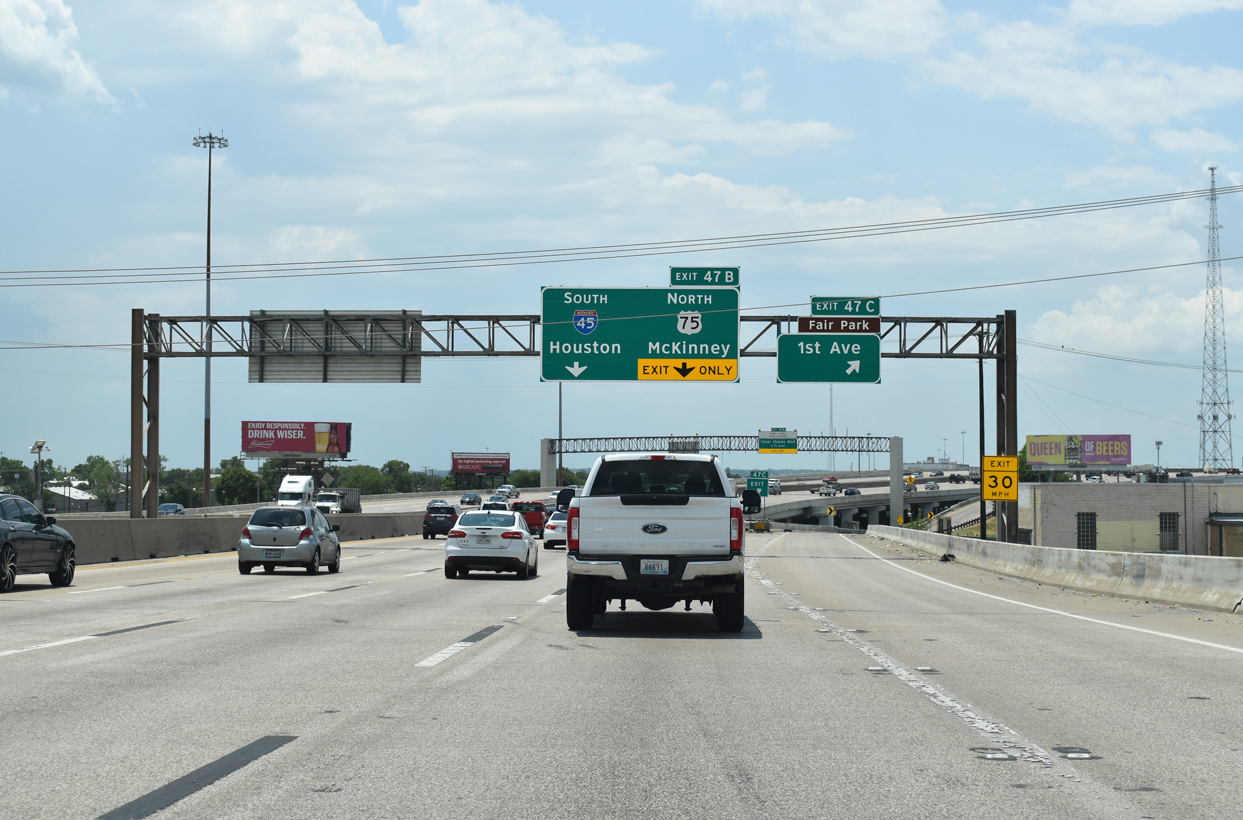

IH 30 west at IH 45/345/US 75 - Dallas, TX

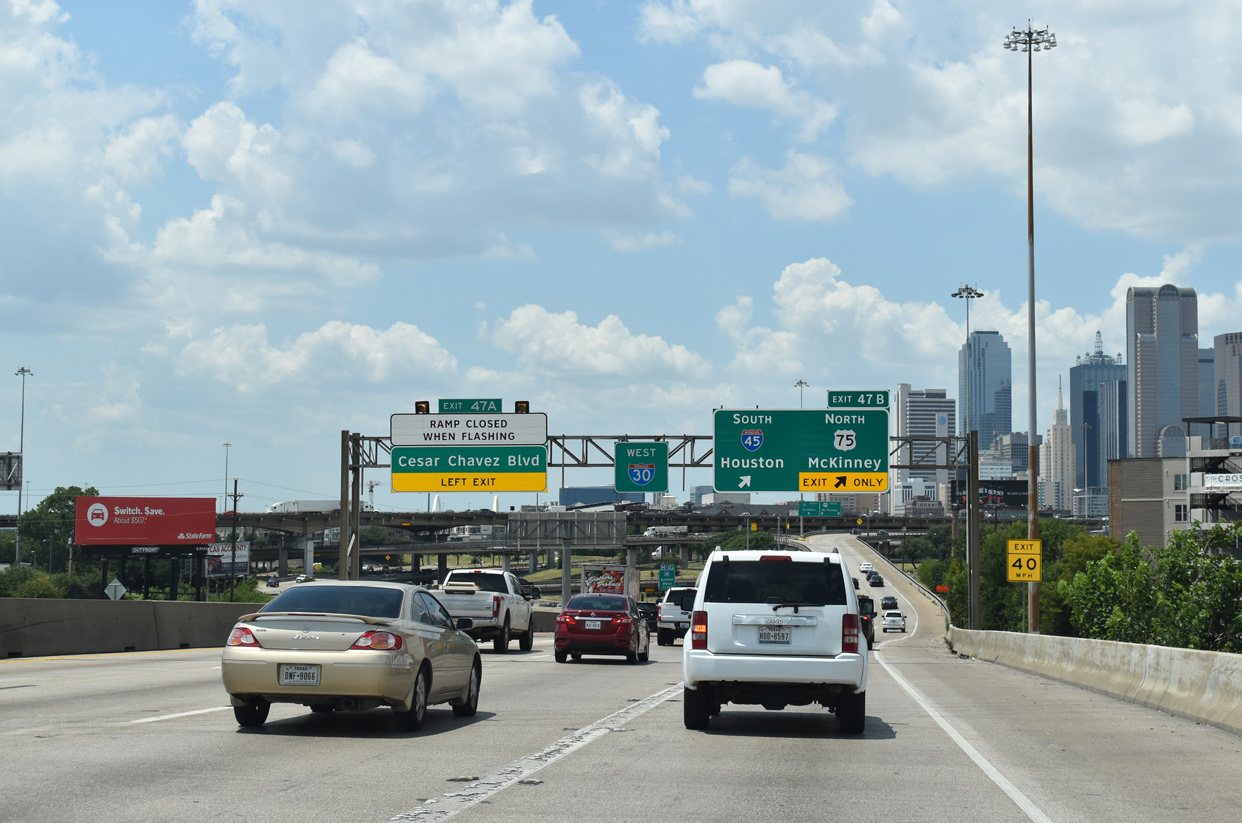

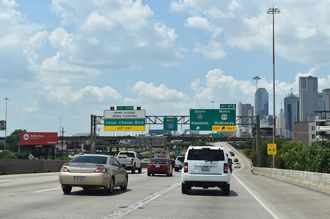

Exit 47B separates from IH 30 westbound with two lanes for IH 45 south and unsigned IH 345 & U.S. 75 (Central Expressway) north. Photo taken 08/06/19.

IH 30 west at IH 45/345/US 75 - Dallas, TX

Exit 47A follows IH 45/345 from the left side of IH 30 to Cesar Chavez Boulevard, an older section of the Central Expressway and U.S. 75 Photo taken 08/06/19.

South End SH 87 – Galveston, Texas

IH 45 South at Texas State Spur 342 SH 87

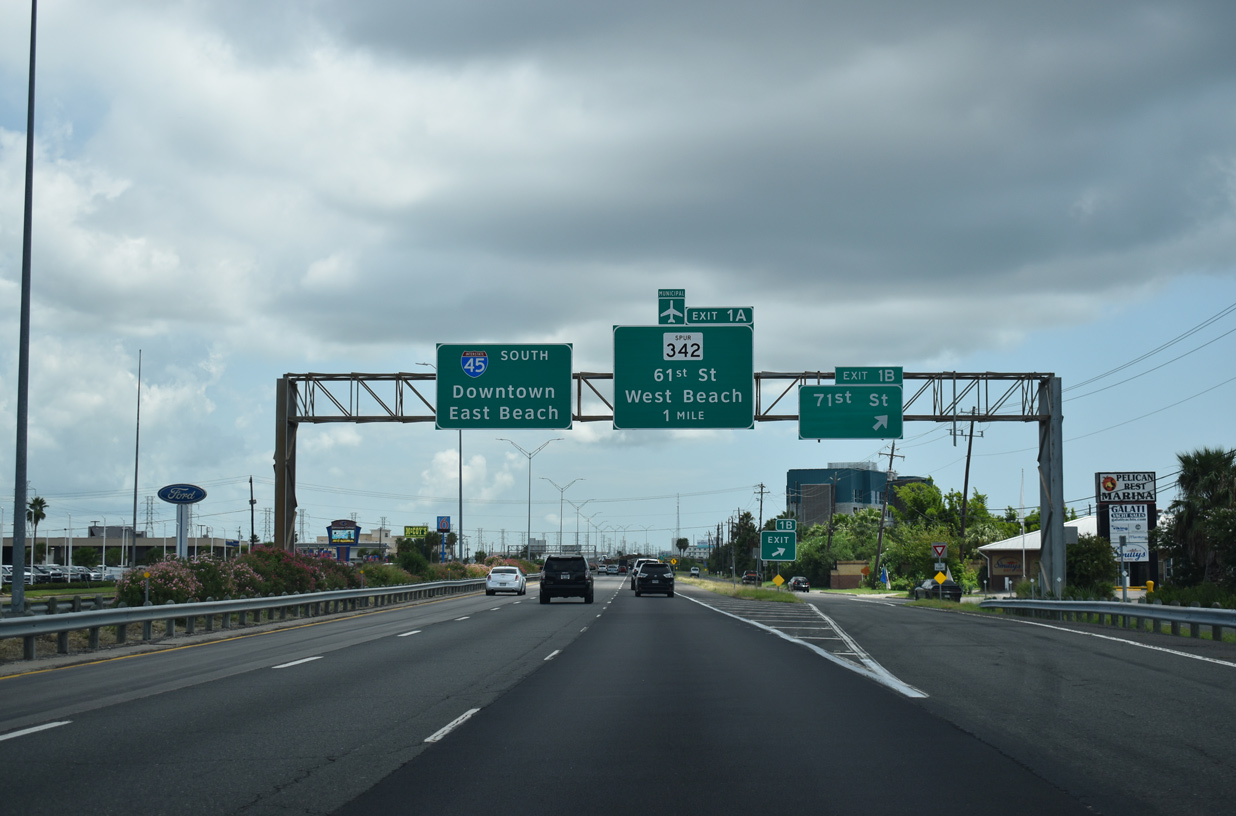

IH 45 south at 71st St - Galveston, TX

The final two interchanges of IH 45 south connect with 71st Street at Exit 1B and State Spur 342 (61st Street) at Exit 1A. Traffic interests to the Galveston beaches partition between 61st Street for the West beaches and SH 87 (Broadway Avenue) for the East beaches. Photo taken 08/02/19.

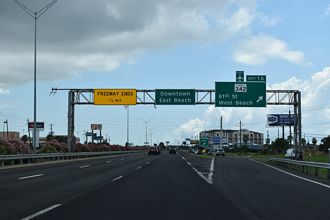

IH 45 south at Spur 342 - Galveston, TX

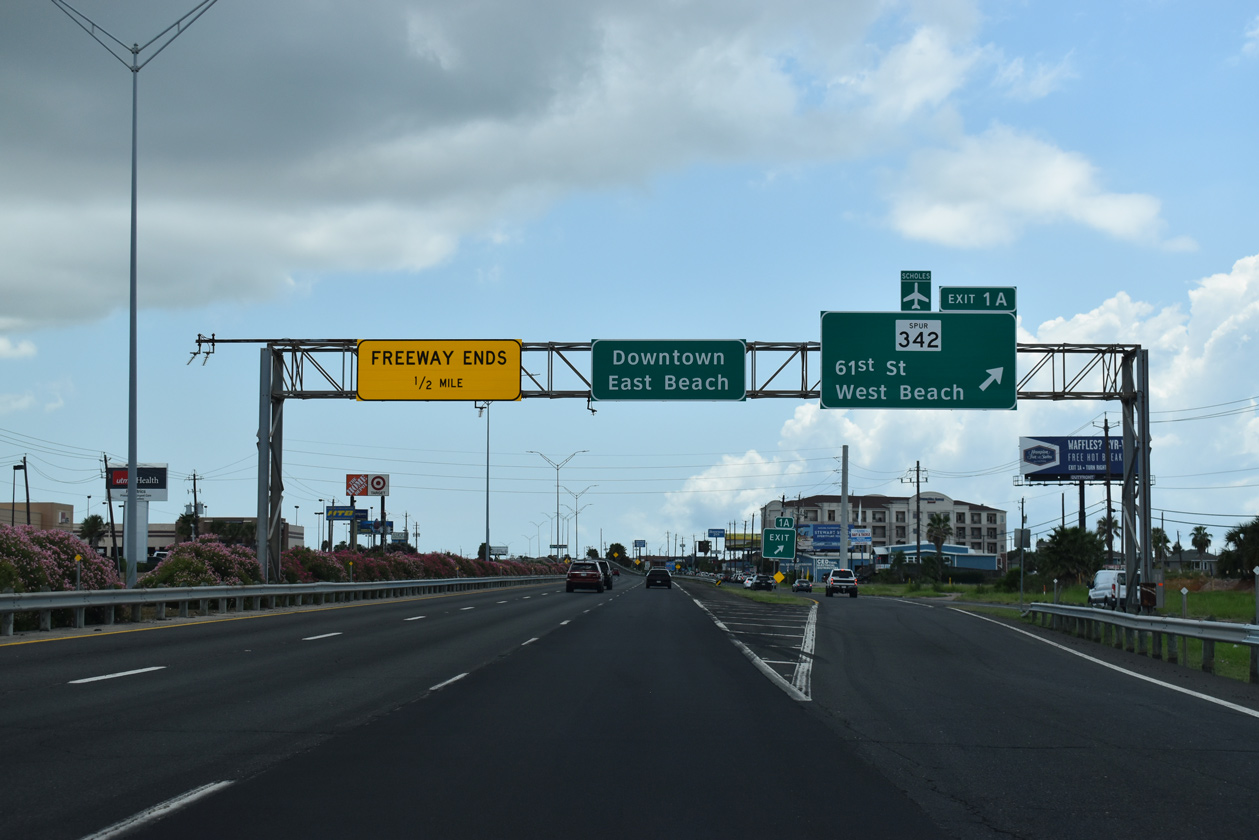

Exit 1A departs for SS 342 (61st Street) southbound to Scholes International Airport at Galveston (GLS). SS 342, in conjunction with FM 3005, provides a coastal route from Galveston southwestward to Jamaica Beach, Sea Isle, Surfside Beach and ultimately Freeport. Photo taken 08/02/19.

IH 45 south at SH 87 - Galveston, TX

The 61st Street (SS 342) north entrance ramp ties into the south end of IH 45 ahead of 59th Street along SH 87 (Broadway Avenue) northbound. SH 87 heads 5.50 miles east to the Galveston Ferry Terminal near Fort Point. Photo taken 08/02/19.

Texas State Spur 342 North at IH 45 SH 87

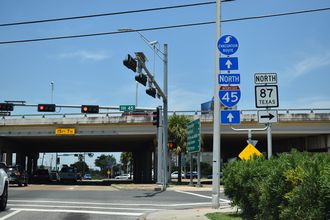

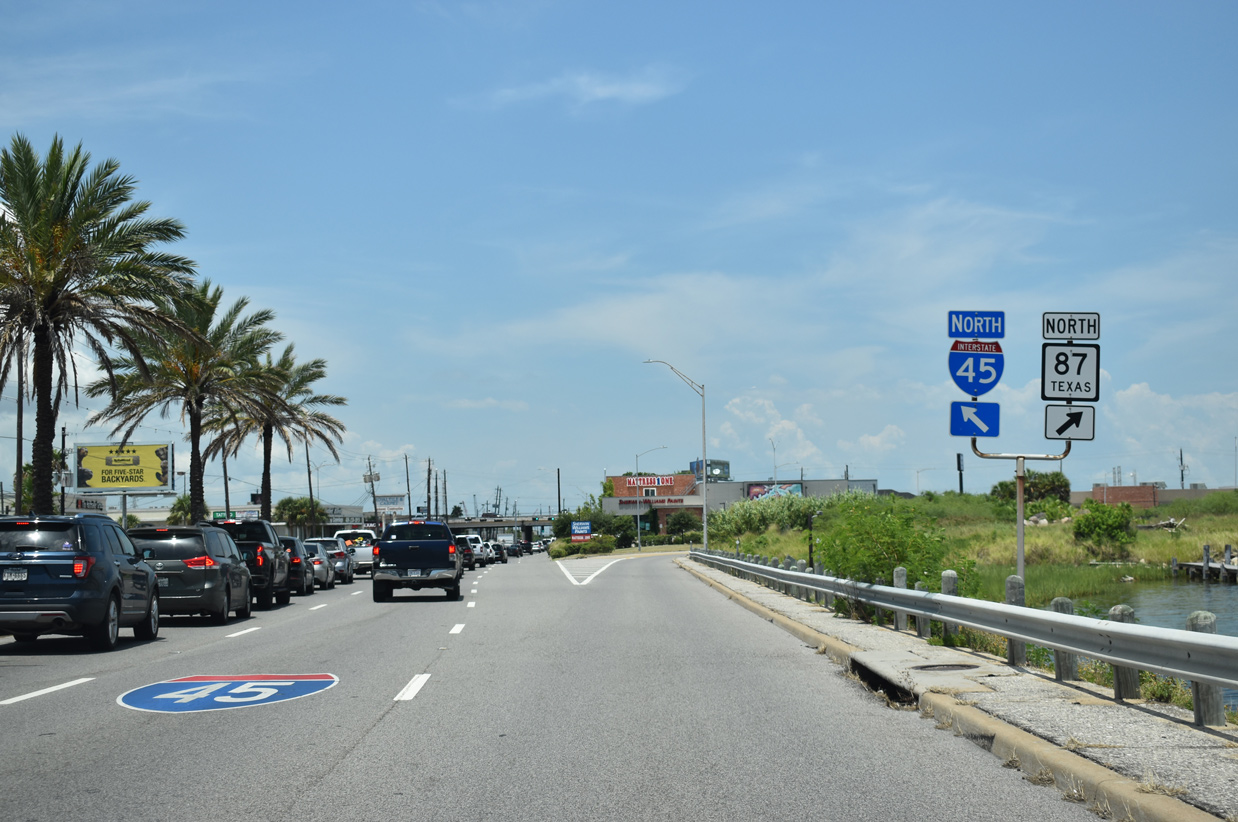

Spur 342 north at IH 45/SH 87 - Galveston, TX

Spur 342 (61st Street) leads 1.67 miles north from the Gulf of Mexico waterfront and Seawall Boulevard to the diamond interchange joining IH 45 and SH 87 (Broadway Avenue). Photo taken 08/02/19.

Spur 342 north at IH 45/SH 87 - Galveston, TX

SH 87 links IH 45 and Galveston Island with the Bolivar Peninsula and Port Bolivar via a auto ferry. The state highway is part of a longer coastal route that formerly traveled to High Island and Sabine Pass. Beach erosion however, washed away the roadway between High Island and Sabine Pass. Photo taken 08/02/19.

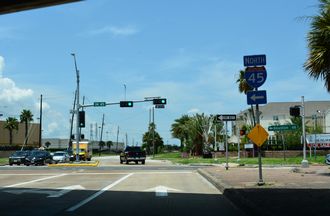

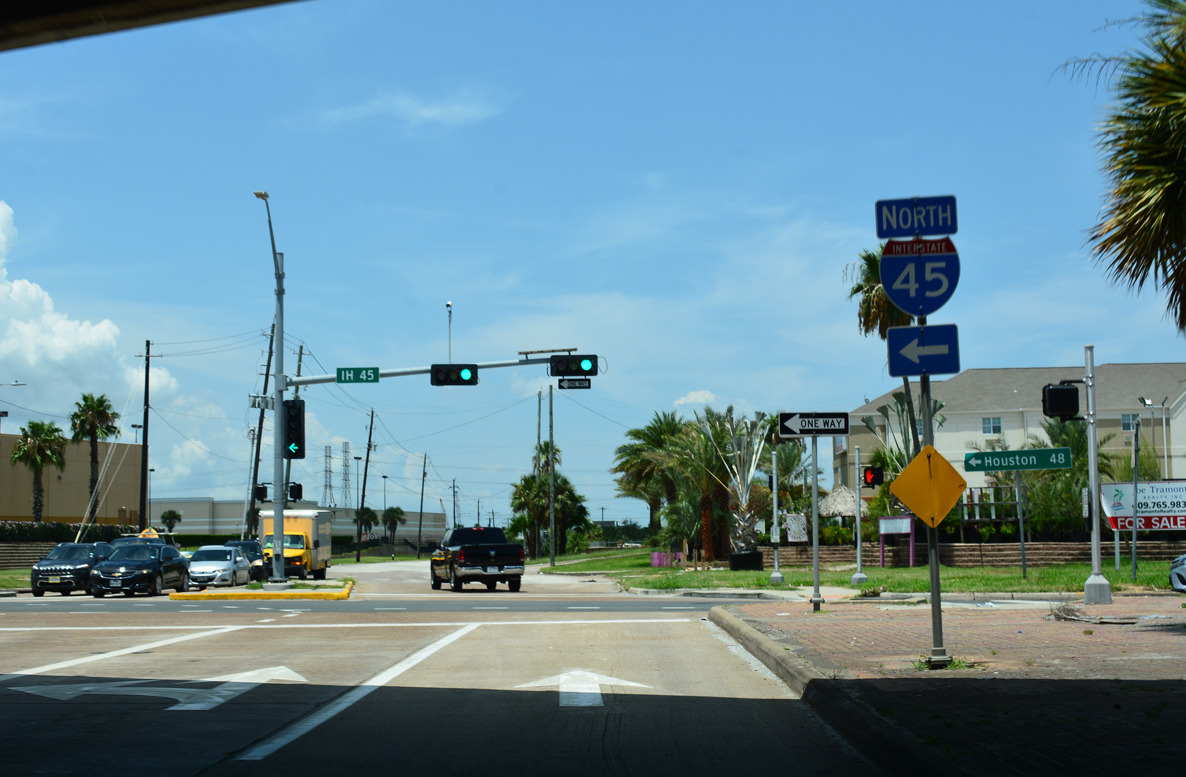

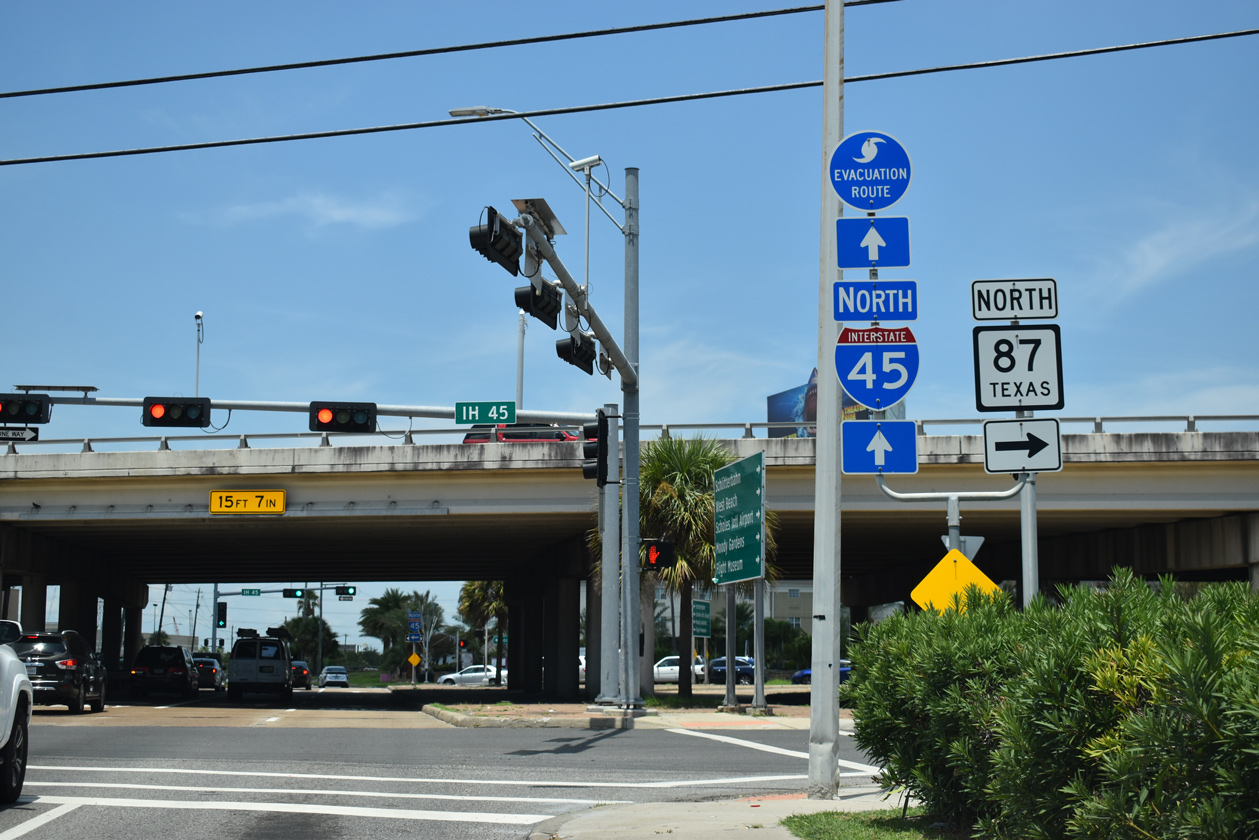

Spur 342 north at IH 45 - Galveston, TX

Traffic at the north end of SS 342 utilizes the Broadway Avenue frontage road to access IH 45 northbound. Photo taken 08/02/19.

IH 45 North

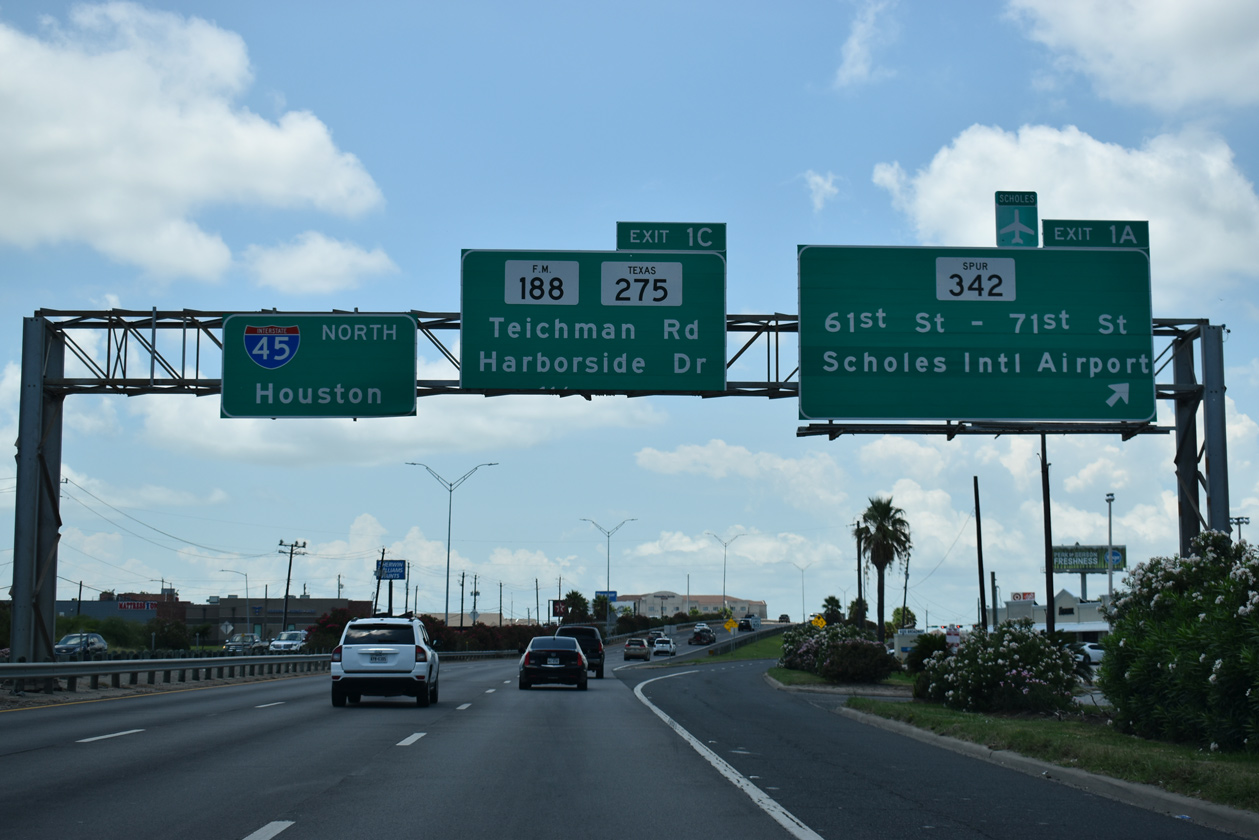

IH 45 north at Spur 342 - Galveston, TX

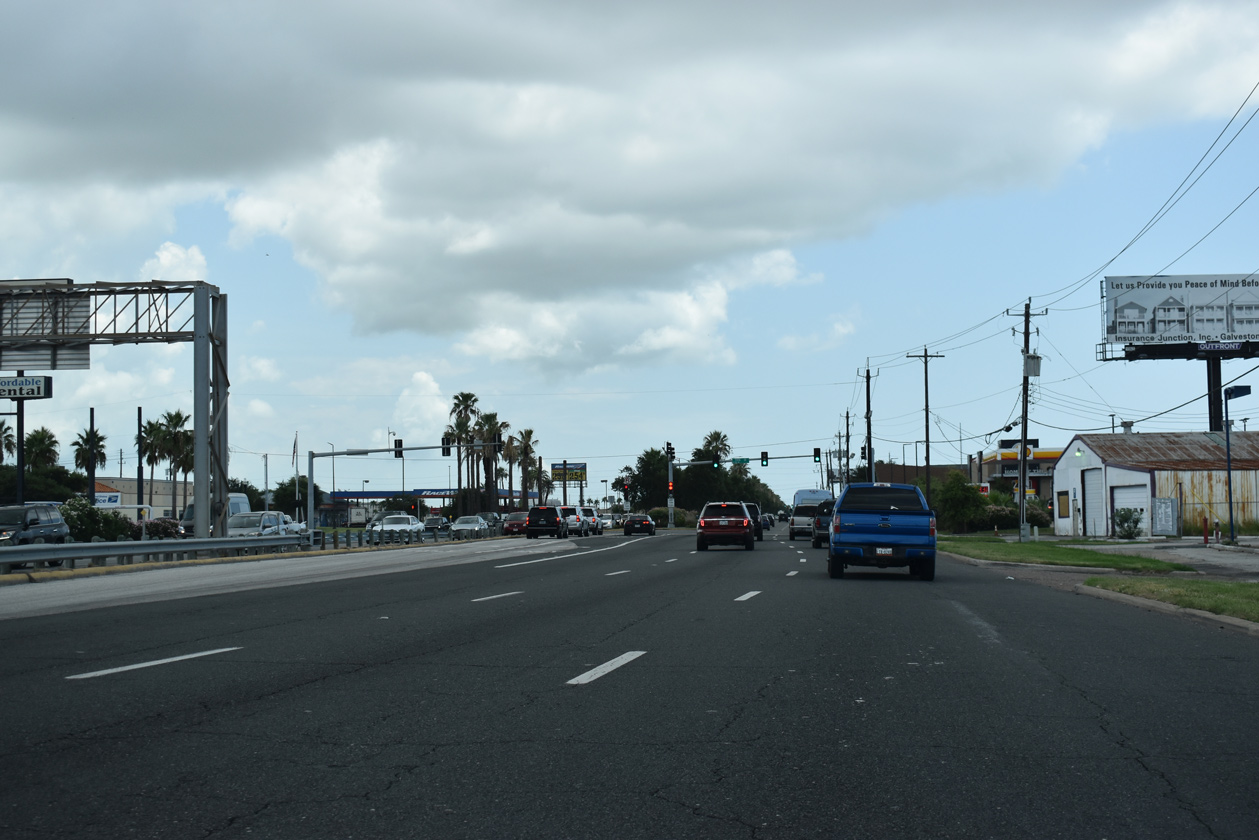

SH 87 (Broadway Avenue) transitions into IH 45 north just beyond the signal with 59th Street and an adjacent retail center. Exit 1A follows to SS 342 (61st Street). Photo taken 08/02/19.

IH 45 north at SH 275 - Galveston, TX

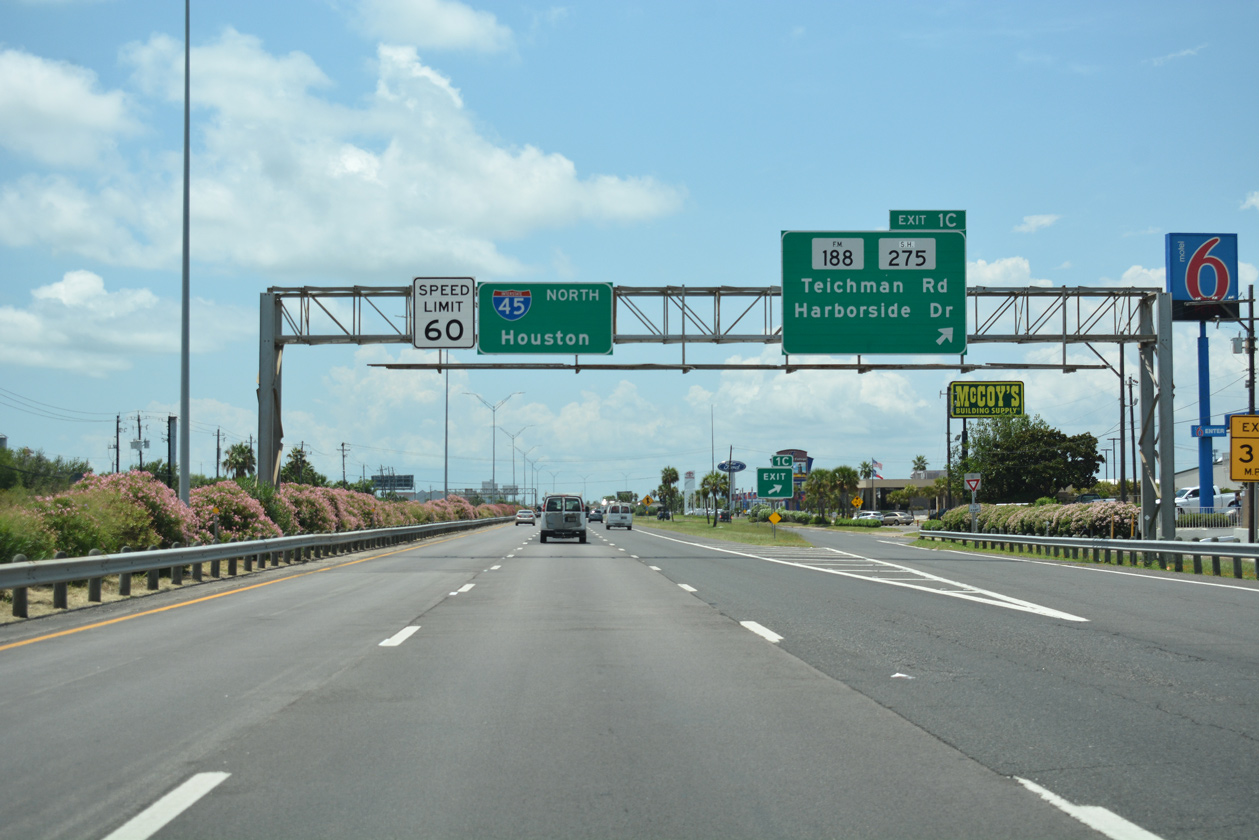

The succeeding ramp (Exit 1C) on IH 45 north connects with SH 275 (Harborside Drive), a road straddling the southern shoreline of Galveston Bay and Galveston Channel. Photo taken 08/02/19.

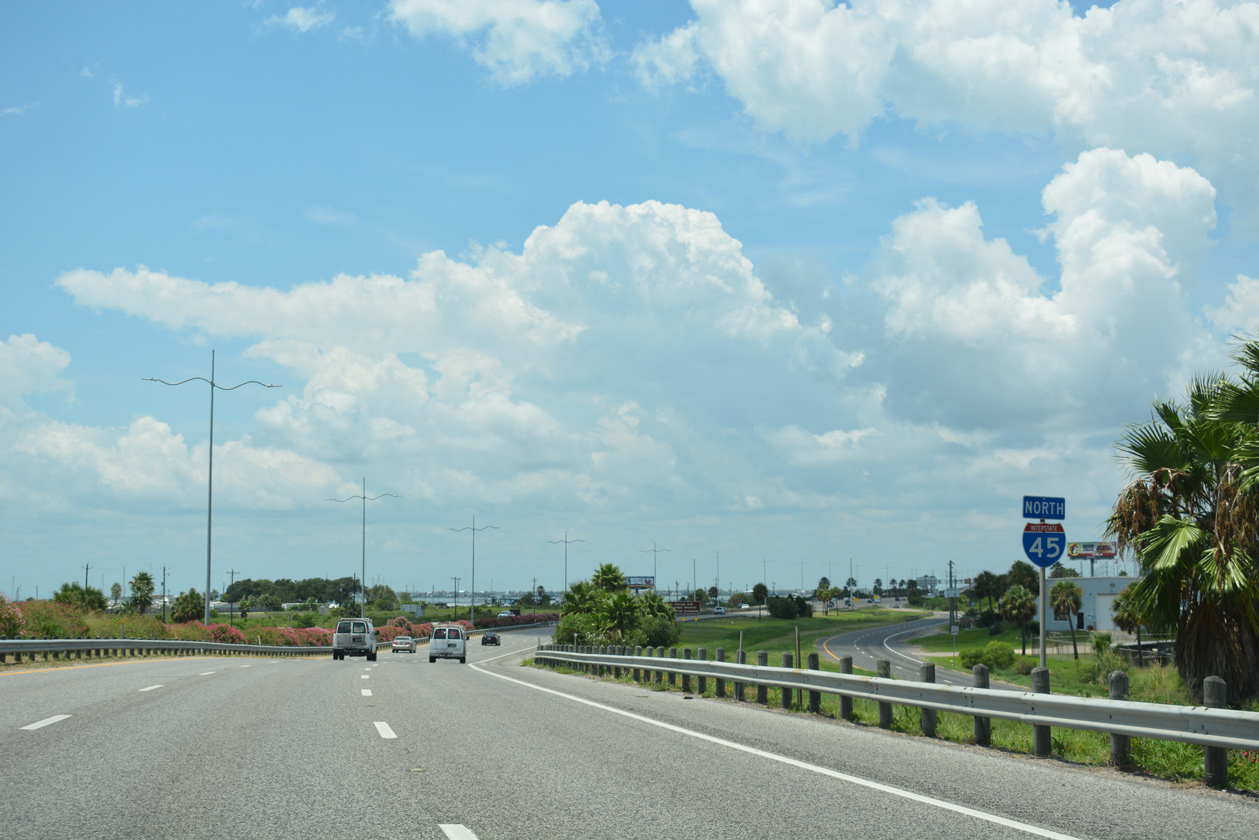

IH 45 north at SH 275 - Galveston, TX

The first confirming marker for IH 45 precedes the George and Cynthia Mitchel Memorial Causeway crossing Galveston Bay. Photo taken 08/02/19.
