Overview

Florida State Road 9B provides a cut-off between I-95 in northern St. Johns County and the Interstate 295 East Beltway at Southside Jacksonville. Opening up additional land for development, including Durbin Pavilion and the Batram Park Preserve subdivision, the commuter freeway also spurs south from I-95 to St. Johns Parkway.

Discussion in 2012 included the possibility of resigning SR 9B as Interstate 795 upon completion of the link with I-95.1 That will not be the case until FDOT District Two submits a formal application to the Federal Highway Administration (FHWA) for Interstate status along the entire SR 9B freeway.2

Construction of the I-295 Express Lanes from I-95 to SR 202 (J. Turner Butler / JTB Boulevard) modifies the northern exchange connecting SR 9B with the East Beltway. Work adds a new overpass and ramp from SR 9B to the northbound express lanes and rebuilds the SR 9B southbound ramp from I-295 to accommodate a third lane for the express lanes. The $139.9 million I-295 Express Lanes project started in Summer 2016 and runs through Summer 2019 Fall 2020.

History

Construction was completed on the first phase of State Road 9B, between U.S. 1 (Philips Highway) and I-295, on September 20, 2013. Work on the initial $75 million segment started in Summer 2010. Work commenced on Phase 2 in April 2013. Including the directional cloverleaf interchange with I-95, the $95 million project concluded on June 2016, with the southbound lanes opening to traffic on June 12 and the northbound lanes two days later.

Extending SR 9B southward to County Road 2209 (St. Johns Parkway), Phase 3 started on September 8, 2015. The $79.76 million project included construction of a single point urban interchange (SPUI) with Peyton Parkway, a new one mile connector linking SR 9B with Race Track Road. The 2.3 mile segment of SR 9B was fully opened to traffic in August 2018.

Route Information

  • North End – Jacksonville, FL

  • South End – St. Johns, FL

  • Mileage – 8.3

  • Cities – Jacksonville

  • JunctionsI-95 I-295

Source: FDOT District 2 – Active Projects web site

2019 FDOT SLDs attribute 7.077 miles to SR 9B. This does not include the roadways north of the gore at the wye interchange with I-295.

State Road 9B Annual Average Daily Traffic (AADT)

Location Vehicles per day
St. Johns Pkwy to I-95 30,000
I-95 to US 1 40,000
US 1 to I-295 50,500

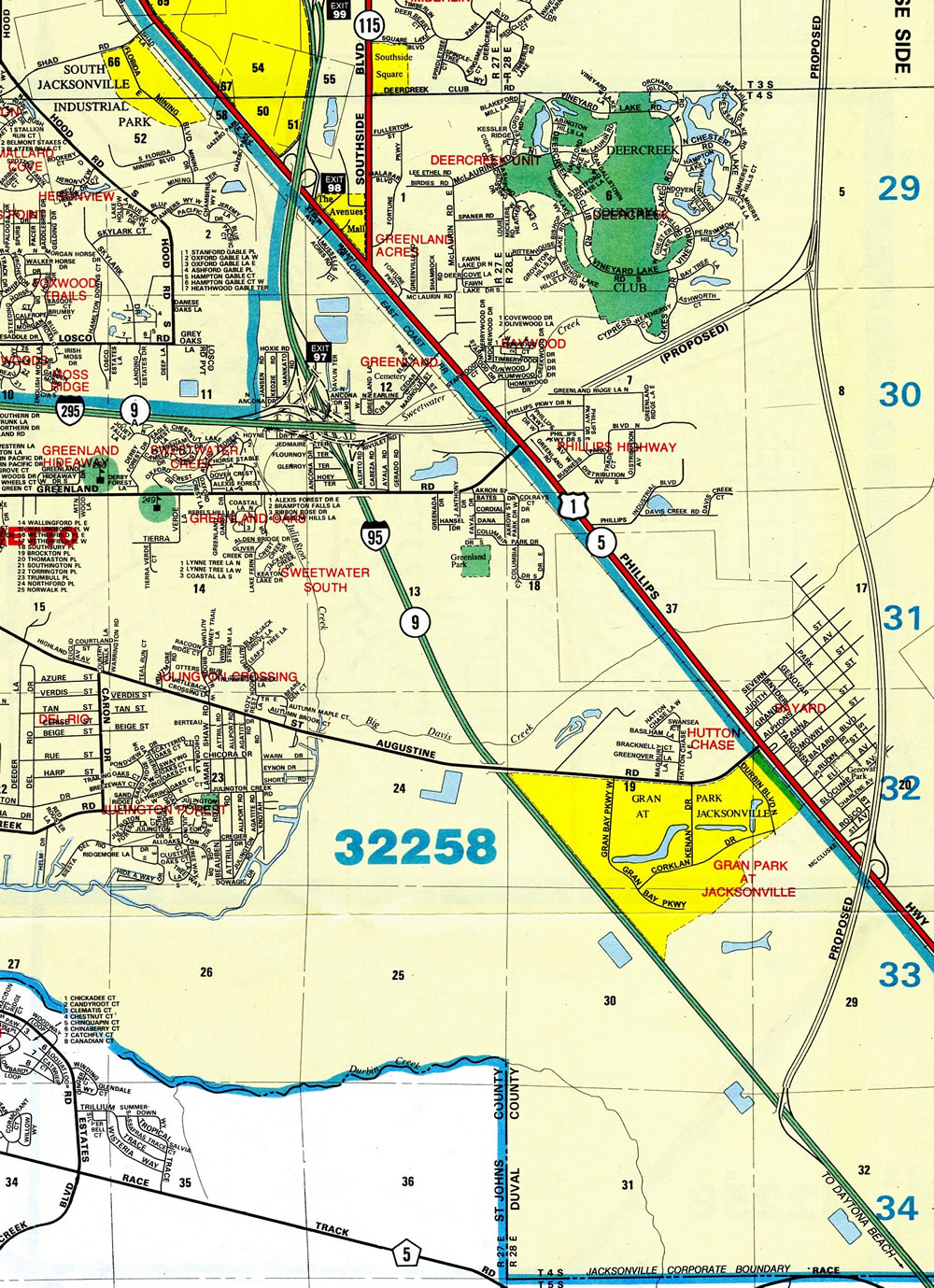

SR 9B Jacksonville - 1998 Map
Florida State Road 9B proposed in 1998.

As originally proposed, SR 9B was to end at wye interchanges at both ends, with a lone interchange at U.S. 1 (Philips Highway). The diamond interchange with E-Town Parkway was constructed in 2014-15 to accommodate development planned from SR 9B northward to R.G. Skinner Parkway along side I-295. The initial 0.6-mile segment of E-Town parkway preceded work on the 569-lot Cypress Bluff project.3

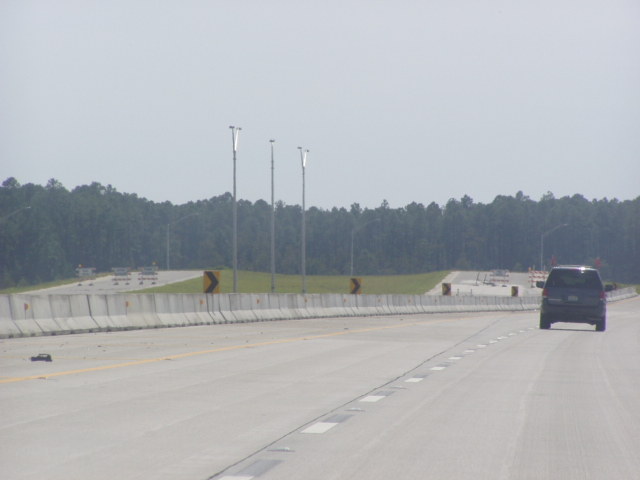

SR 9A south at SR 9B - 2002
Roadway stubs were incorporated into the design of Interstate 295 (then SR 9A) for the eventual ramps with SR 9B. Photo taken by Daniel Davis (10/20/02).

Highway Guides

North End I-295 – Southside, Jacksonville, Florida

North at I-295

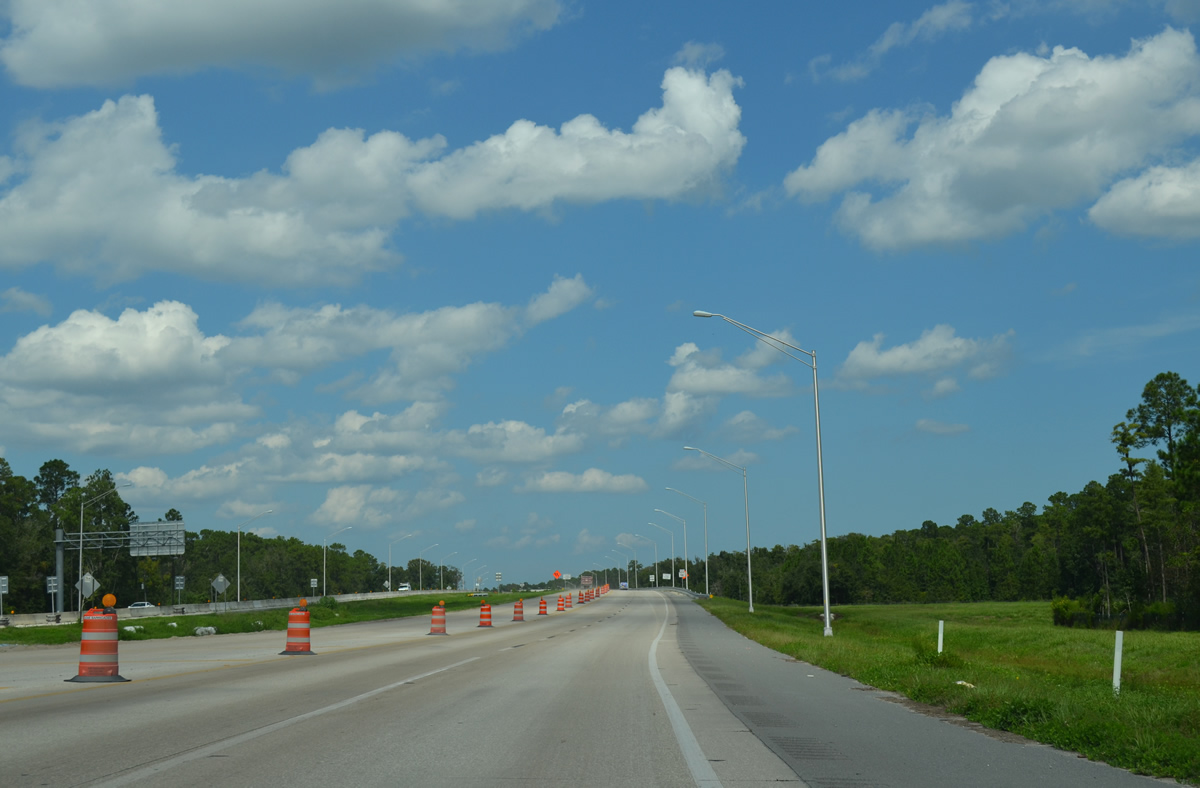

SR 9B north at I-295 - Jacksonville, FL

SR 9B north defaults onto Interstate 295 north at a wye interchange. 09/22/14

I-295 South at

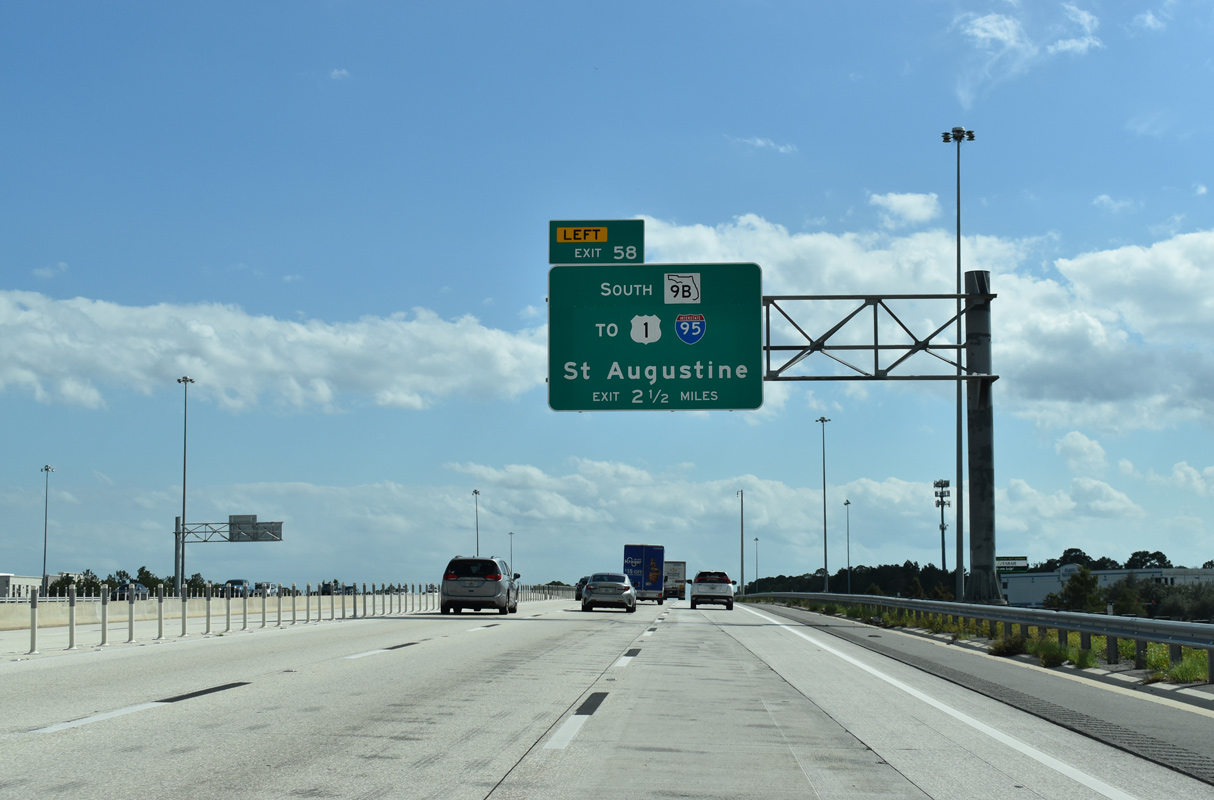

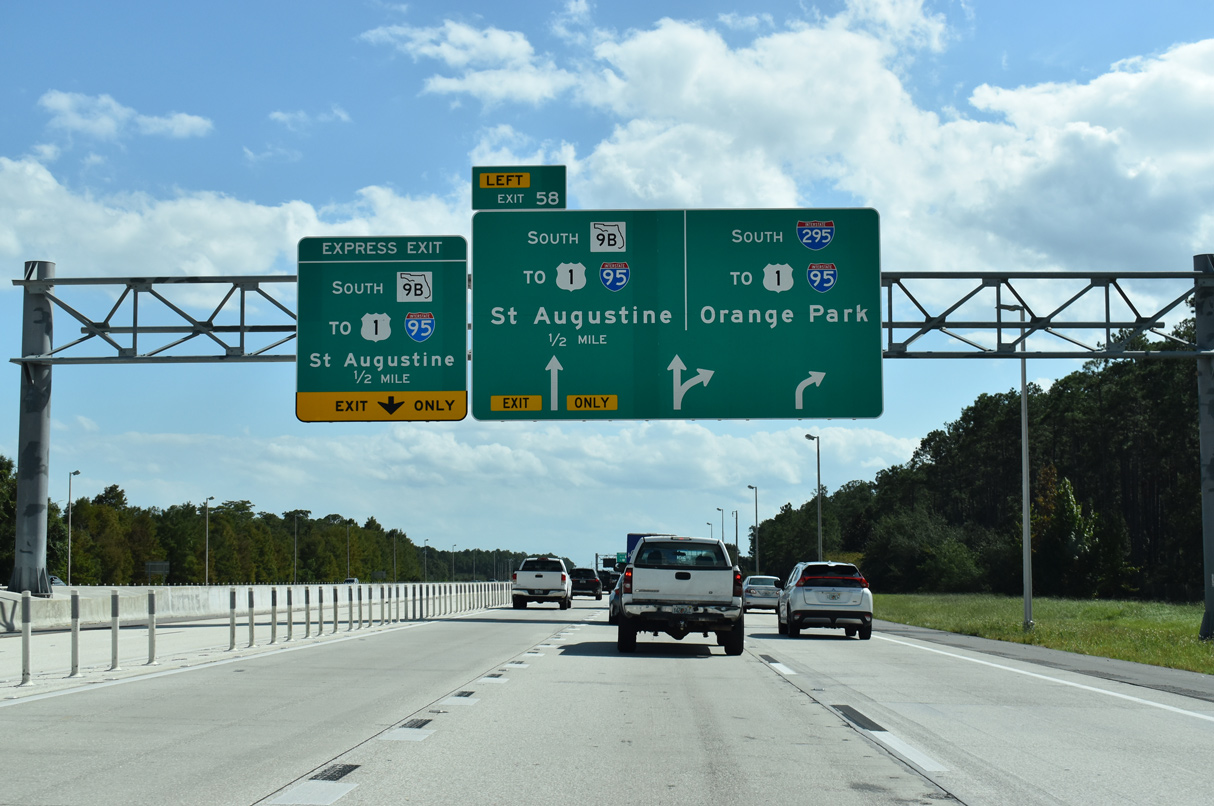

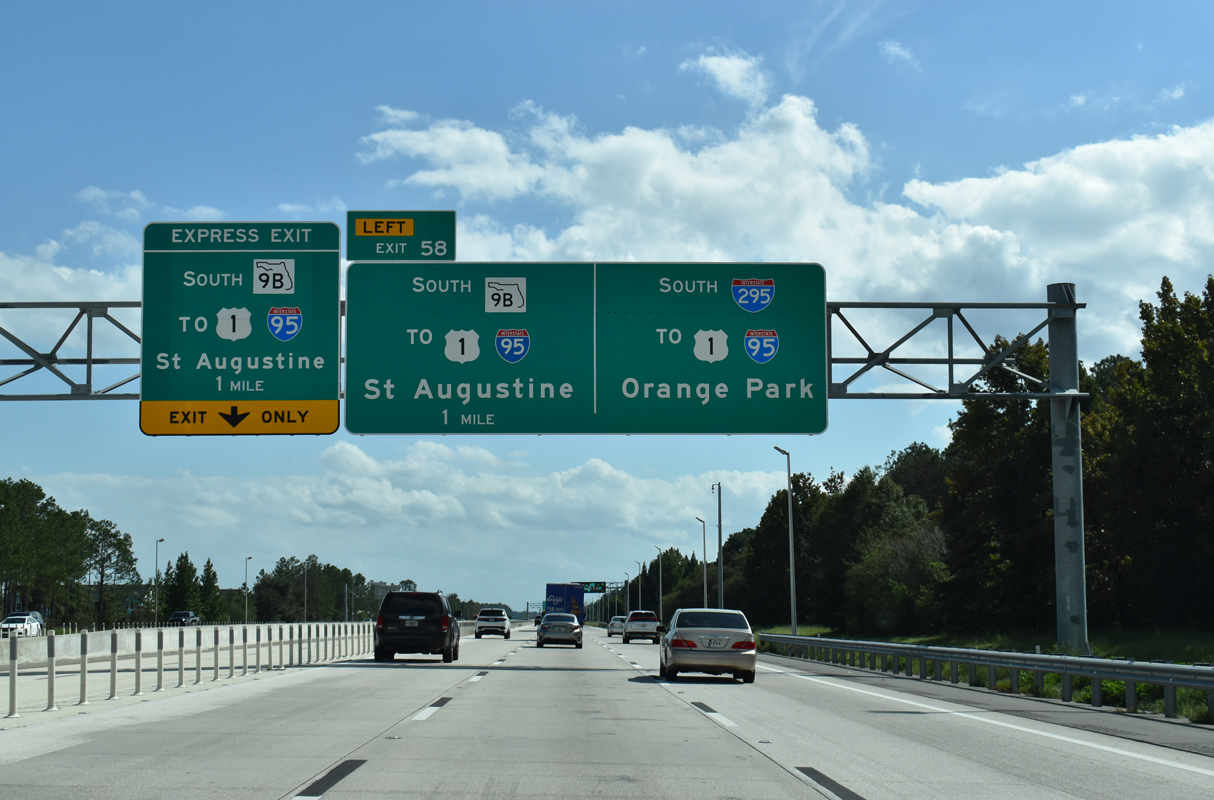

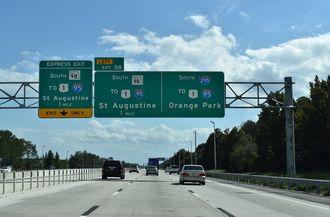

I-295 south at SR 9B - Jacksonville, FLI-295 south at SR 9B - Jacksonville, FL

State Road 9B separates from I-295 southbound via Left Exit 58. Traffic from the I-295 Express Lanes will combine with the forthcoming ramp when they open in Fall 2020. 11/06/19

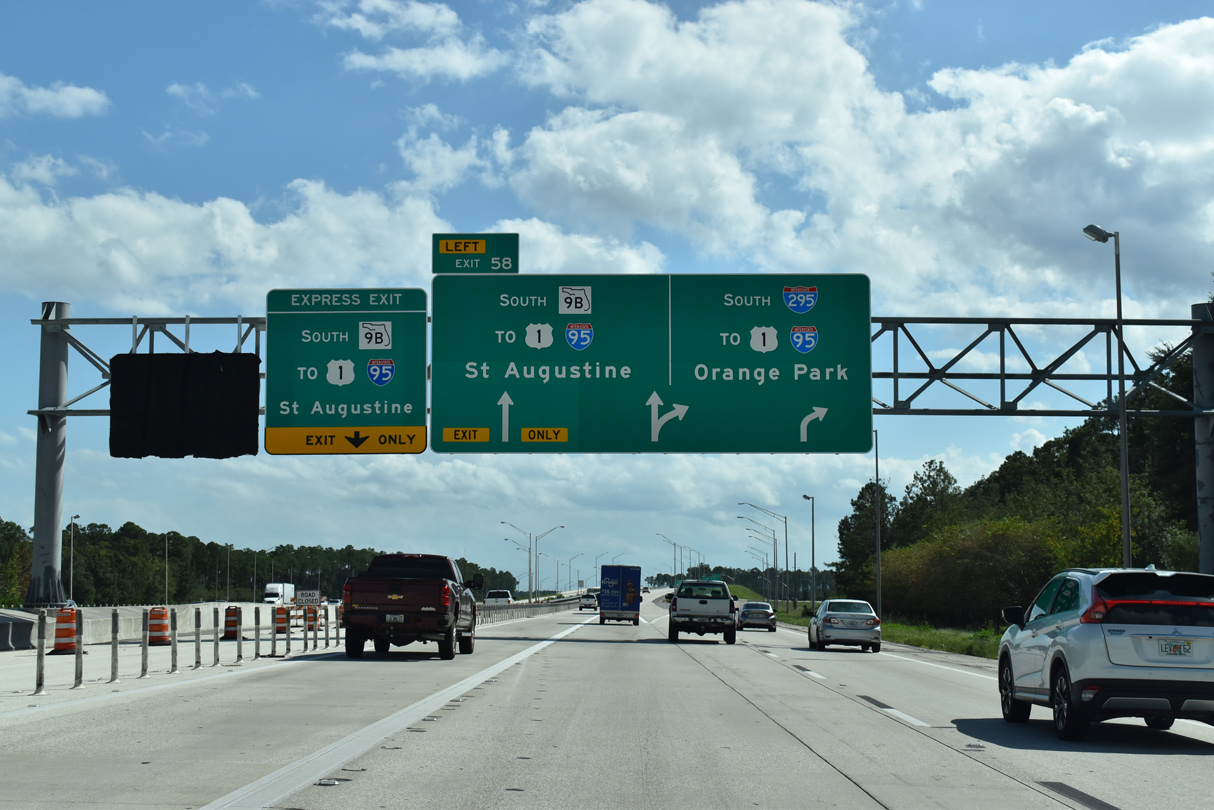

I-295 south at SR 9B - Jacksonville, FL

Interstate 295 turns west from SR 9B (Exit 58) across Southside Jacksonville 2.8 miles to meet I-95. 11/06/19

Throwback

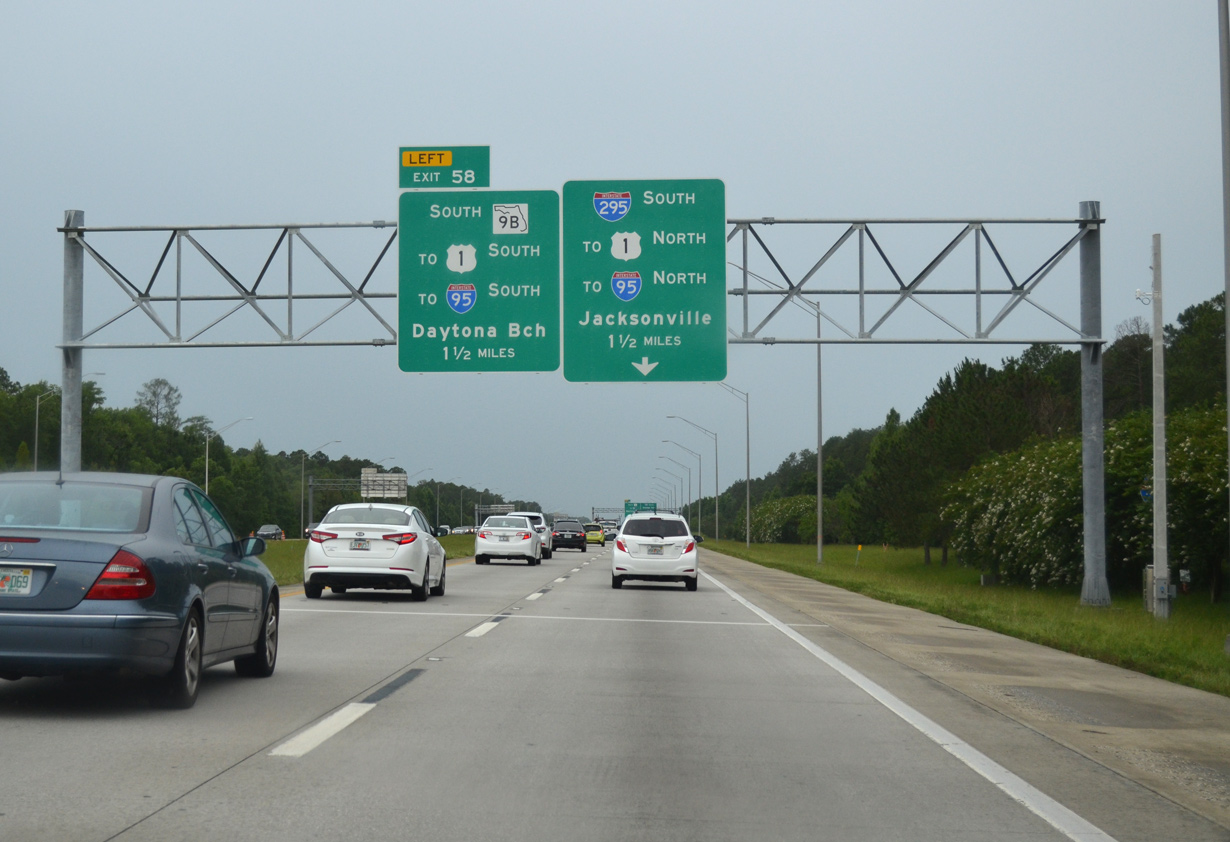

I-295 south at SR 9B - 2016

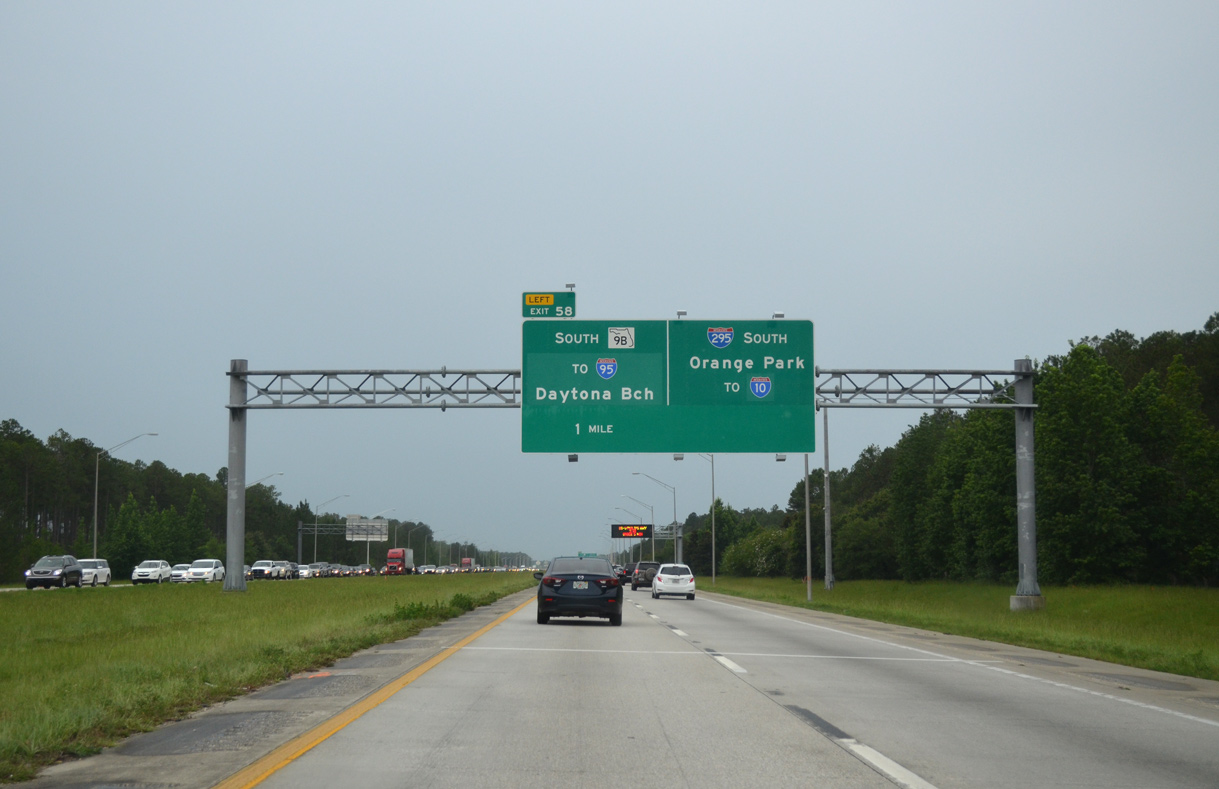

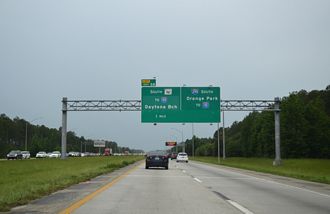

I-295 south at SR 9B - 2016

I-295 southbound was expanded to four lanes with the addition of the Express lanes leading to SR 9B (Left Exit 58). 06/16/16

South End County Road 2209 St. Johns Parkway – St. Johns, Florida

South at County Road 2209

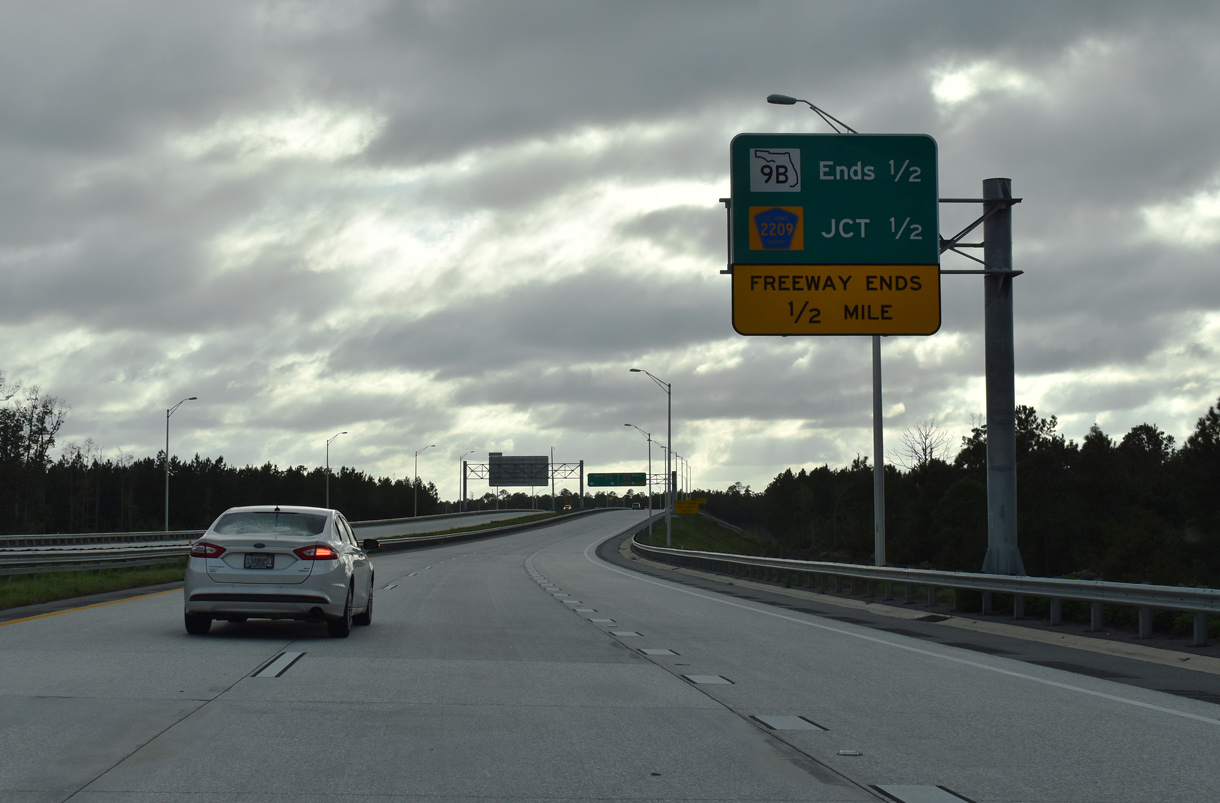

SR 9B south at CR 2209 - St. Johns, FL

SR 9B concludes a half mile south of the SPUI with Peyton Parkway. 11/06/19

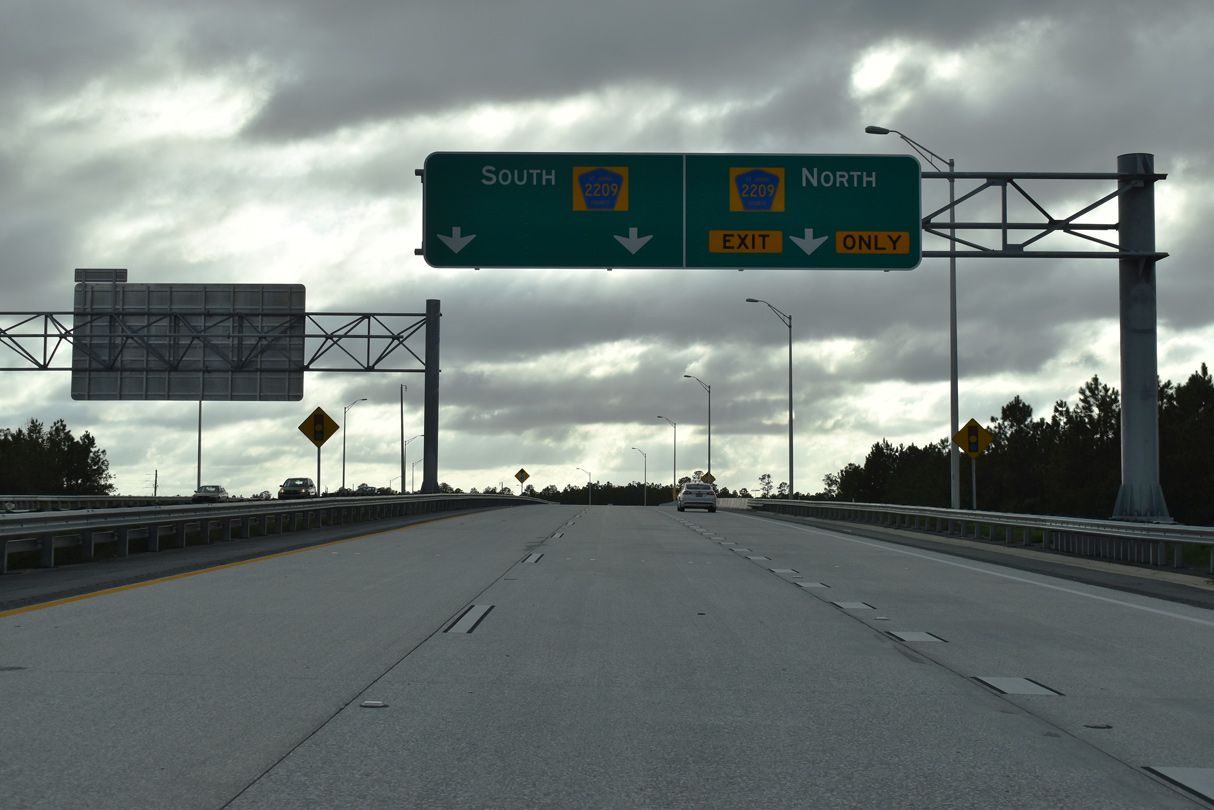

SR 9B south at CR 2209 - St. Johns, FL

Two lanes continue from SR 9B onto CR 2209 (St. Johns Parkway) southbound to CR 210. 11/06/19

SR 9B south at CR 2209 - St. Johns, FL

Separate ramps wind northward from SR 9B to St. Johns Parkway at unincorporated St. Johns. The freeway ends at milepost 7 and CR 2209 south. 11/06/19

County Road 2209 North at

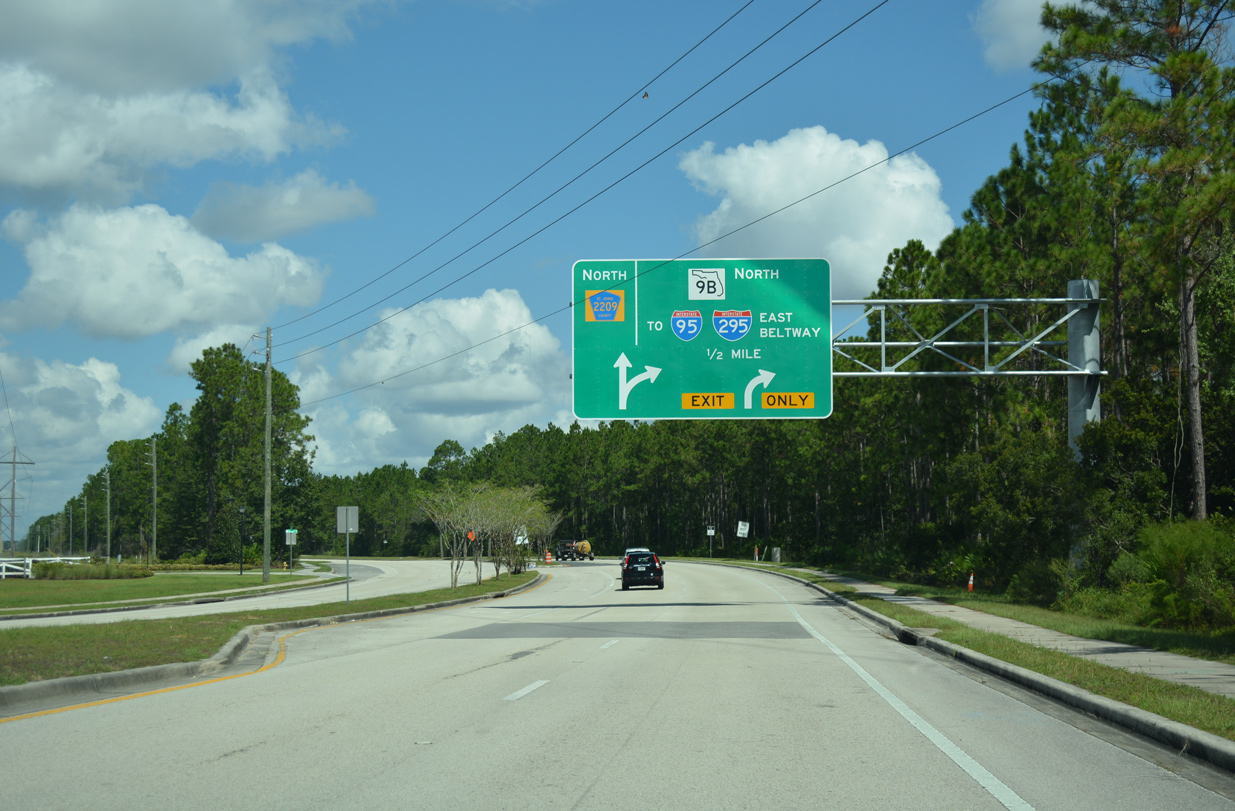

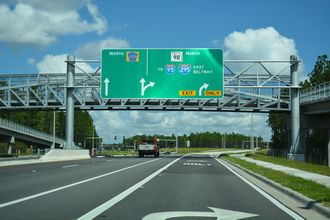

CR 2209 north at SR 9B - St. Johns, FL

County Road 2209 (St. Johns Parkway) stems 1.25 miles north from a commercialized intersection with County Road 210 to SR 9B. 10/06/18

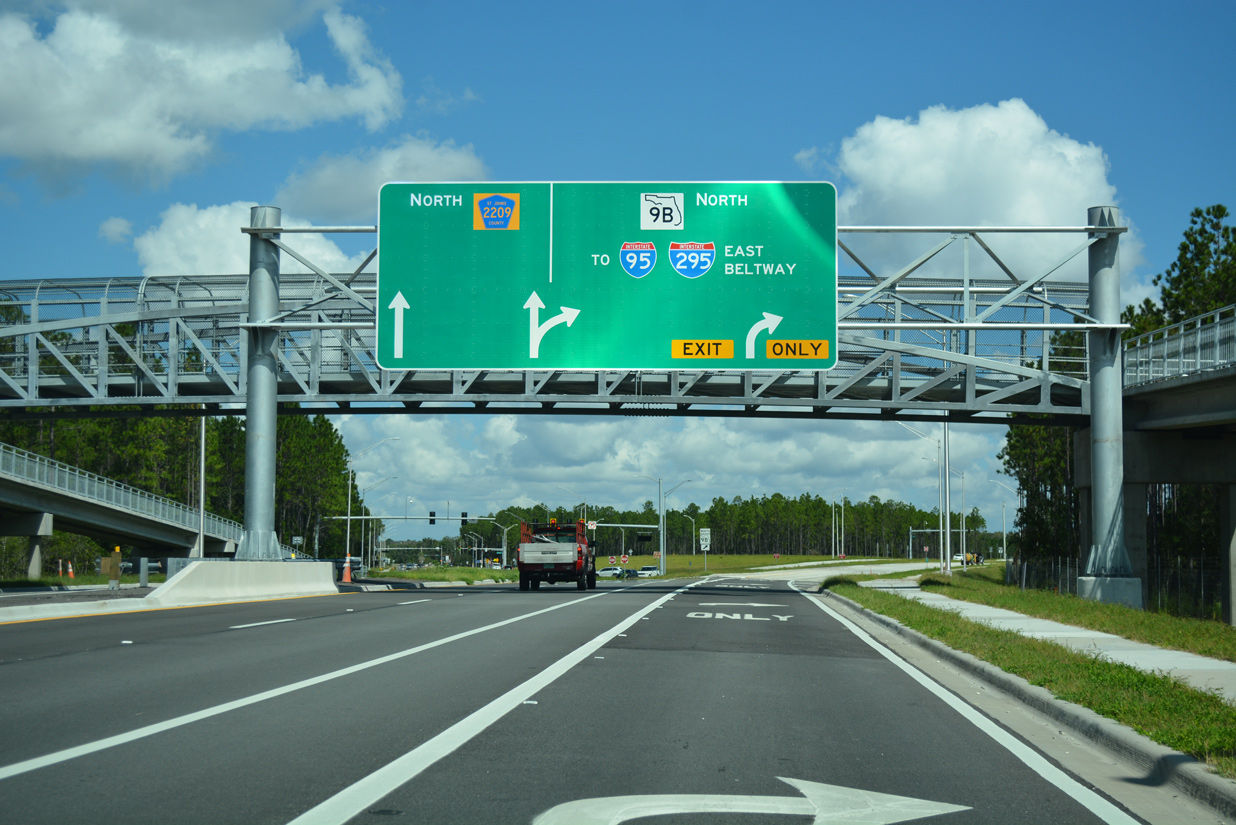

CR 2209 north at SR 9B - St. Johns, FL

A pedestrian bridge spans St. Johns Parkway at the separation with SR 9B to Jacksonville. 10/06/18

County Road 2209 South at

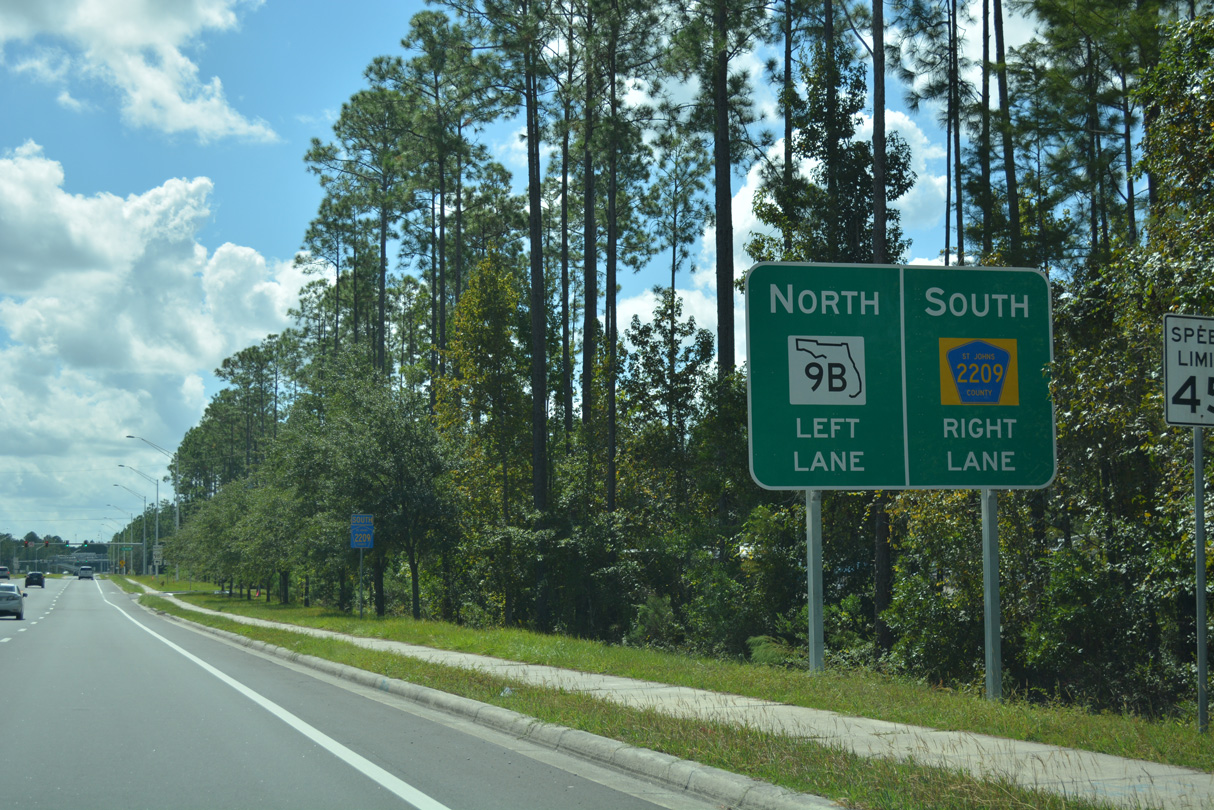

CR 2209 south at SR 9B - St. Johns, FL

Heading south from Longleaf Pine Parkway and St. Johns, CR 2209 (St. Johns Parkway) approaches the connecting ramp for SR 9B north. 10/06/18

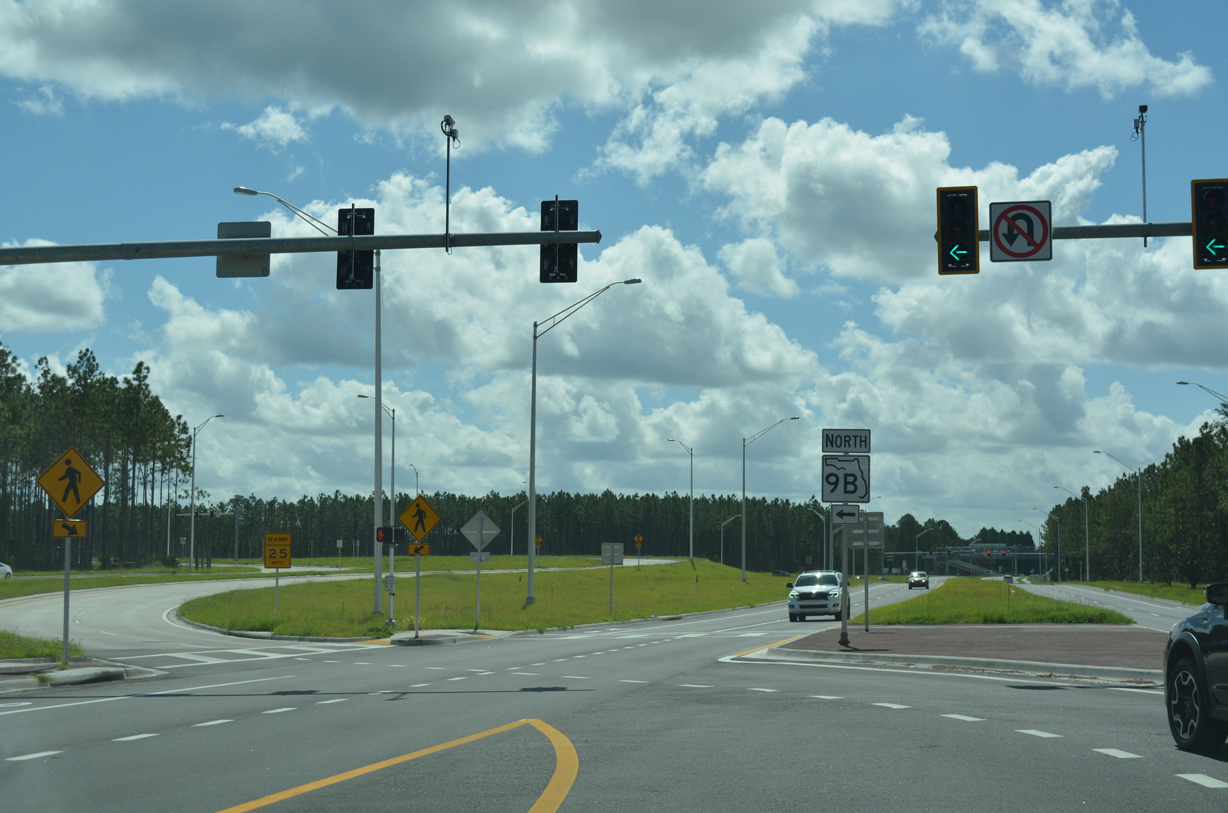

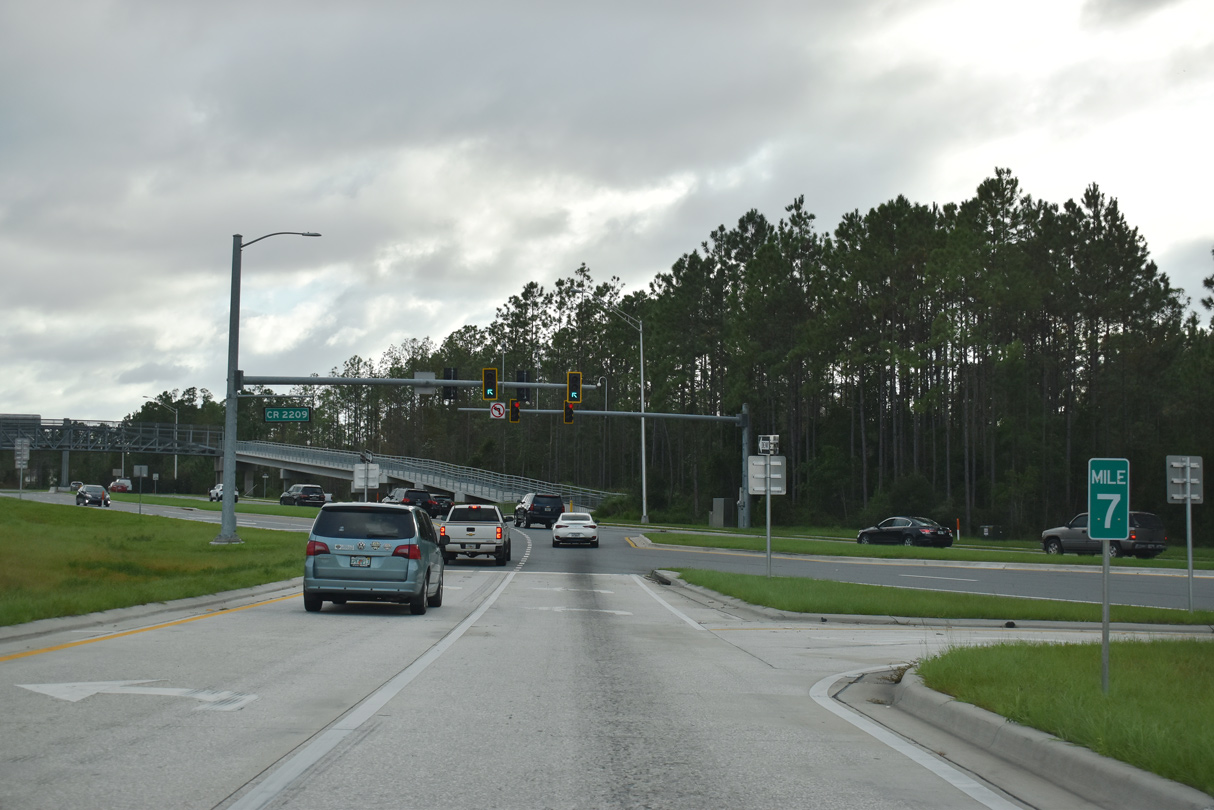

CR 2209 south at SR 9B - St. Johns, FL

A signalized left turn takes motorists from CR 2209 south onto the ramp for SR 9B north and a succeeding traffic light. 10/06/18

Sources:

  1. “9A is steadily becoming the I-295 Beltway.” The Florida Times-Union, March 12, 2012.
  2. Email response from FDOT on the status of the I-795 designation, dated June 28, 2016.
  3. “Florida 9B project is another milestone for Davis family.” Financial News & Daily Record, March 3, 2014.
