Interstate 635 Texas
Overview
Part of the Dallas beltway system, Interstate 635 (Lyndon B. Johnson Freeway) wraps around the northern and eastern side of the city. Known simply as the LBJ Freeway, IH 635 begins at Interstate 20 in Balch Springs and leads in a counterclockwise direction through Mesquite to Garland, Farmers Branch and IH 35E (Stemmons Freeway). Beyond IH 35E, IH 635 spurs 8.50 miles west through Farmers Branch, Irving and along the Coppell city line to SH 121 in the city of Grapevine. SH 121 links IH 635 with International Parkway south through Dallas-Fort Worth International Airport (DFW) and north to Lewisville.
LBJ Express lanes
A $2.6 billion project rebuilt 10.7 miles of the Lyndon B. Johnson Freeway to September 10, 2015.1 The massive project kicked off with an allocation of $50 million from the Regional Transportation Council on September 11, 2003.2 Initial plans called for twin bored tunnels below the main travel lanes of IH 635. These were cost prohibitive and eventually withdrawn from the plan. Project revisions in November 2006 replaced the tunnels with trenched roadways (later named the LBJ Canyon) utilizing space under a portion of the IH 635 general travel lanes. The cost savings allowed the project to move forward, with construction commencing in 2011.3
The LBJ Express project upgraded IH 635 between the Central Expressway (US 75) and IH 35E, with the addition of two or three tolled lanes per direction. Formally named the LBJ Express or LBJ TEXpress, the new lanes utilize variable tolling where rates increase during periods of traffic congestion along the main lanes of IH 635.
The I-635 East HOV/Express Lanes were converted from high occupancy vehicle lanes to high occupancy toll (HO/T) lanes on October 1, 2016.4 Operated by the Texas Department of Transportation (TxDOT), the express lanes allow non HOV traffic to use the lanes at a variable toll rate. Construction scheduled to start in late 2020 will rebuild the HOV/Express Lanes into the I-635 East TEXpress Lanes.
DFW Connector Project
Approved for Texas Clear Lanes congestion relief funding in March 2017, work on the $370 million, I-635/SH 121 Project started in August 2018. Construction widens SH 121 through a rebuilt interchange with IH 635, adds direct connectors to SH 26 and FM 2499 and expands the Bass Pro Drive overpass. Included in the $1 billion DFW Connector Project, which greatly expanded 8.4 miles of SH 114 and SH 121 through Grapevine, Southlake and Irving by March 2014, construction at the west end of IH 635 runs through 2022.5
History
Right of way acquisition for what would be Interstate 635 commenced in 1958 across mostly empty farm land or prairie. Construction started in March 1964 on a short segment between IH 35E and Marsh Lane by the city of Farmers Branch. This section was complete on March 23, 1967. It was quickly followed with opening of IH 635 east from Marsh Lane to U.S. 75 (Central Expressway) in August 1967.3
Work continued to build IH 635 south and east to IH 30 in November 1968, with work finished south to IH 20 by August 1970. The portion running west from Balch Springs to IH 35E in south Dallas was redesignated as IH 20 in 1971. It was completed in October 1973.3
The northwestern segment of Interstate 635 was constructed in 1981-82. This extension was conditionally approved by AASHTO on November 16, 1974.
Route Information
North End – Grapevine, TX
South End – Balch Springs, TX
Mileage – 37.00
Cities – Dallas, Balch Springs, Mesquite, Garland, Richardson, Farmers Branch, Irving, Coppell, Grapevine
- Junctions –
Source: December 31, 2018 Interstate Route Log and Finders List
I-635 Annual Average Daily Traffic (AADT)
Source: 2017 AADT – Texas Department of Transportation (TxDOT) Statewide Planning Map

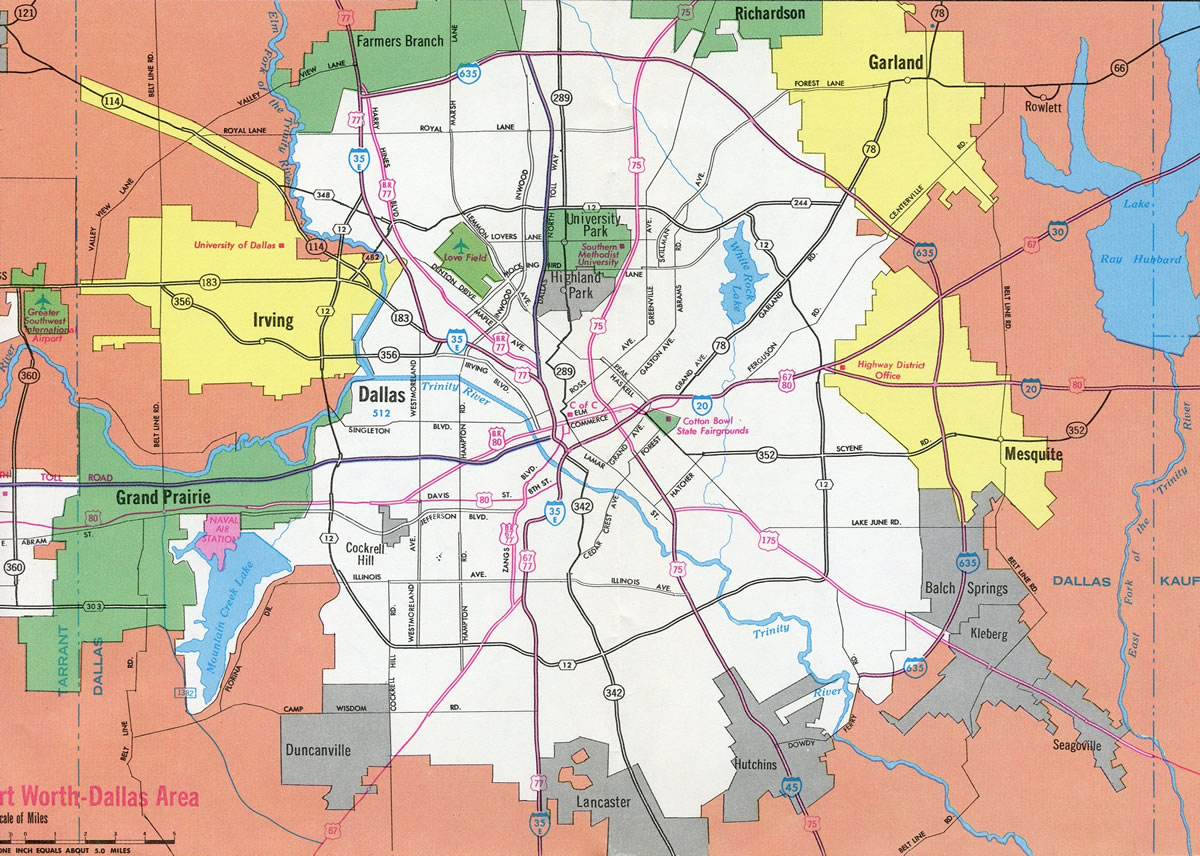

The 1973 Texas Official Highway Map shows IH 20 and 635 cosigned west from Balch Springs to IH 35E in south Dallas.

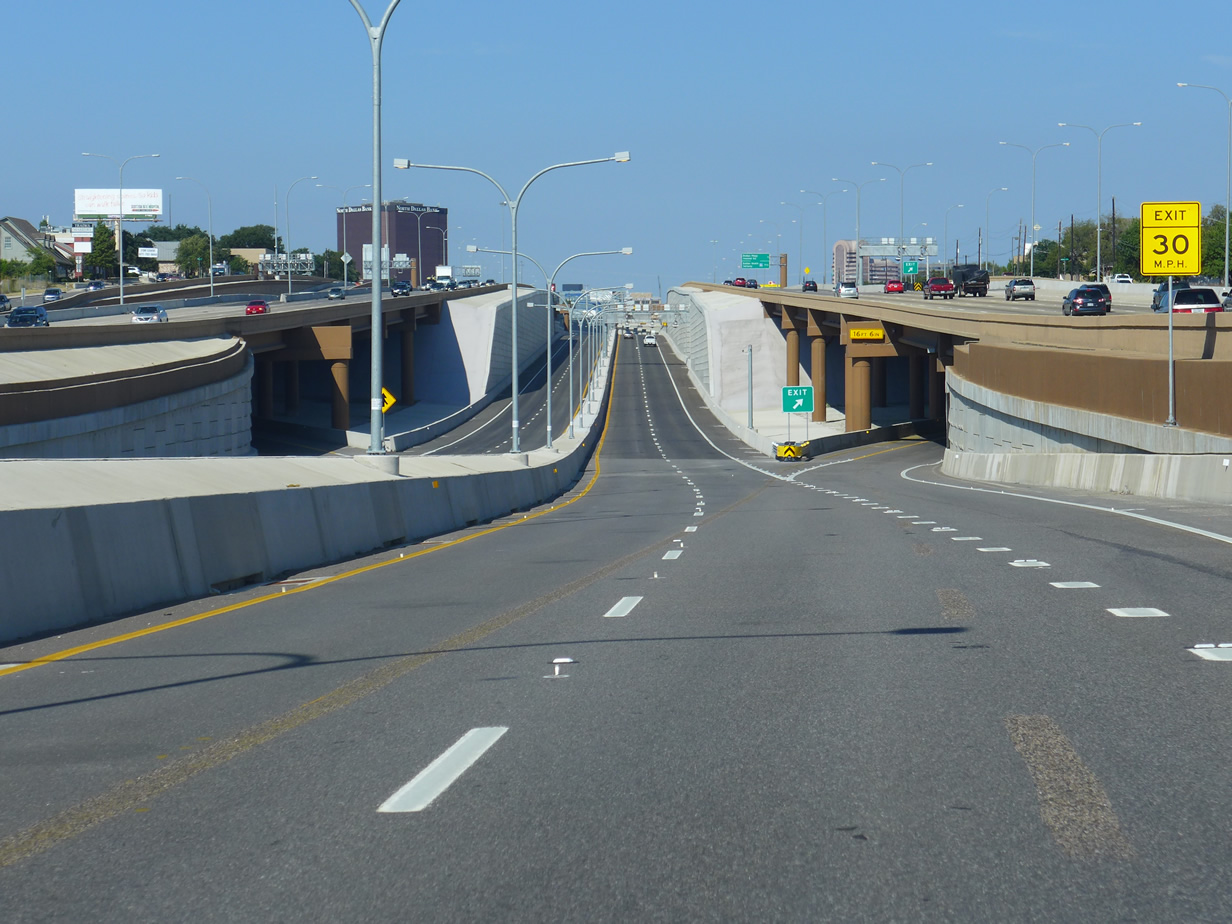

The LBJ Express Lanes travel below grade between Webb Chapel Road and the Dallas North Tollway and from the Dallas North Tollway to Hillcrest Road.
Highway Guides
North End
– Grapevine, Texas
West at

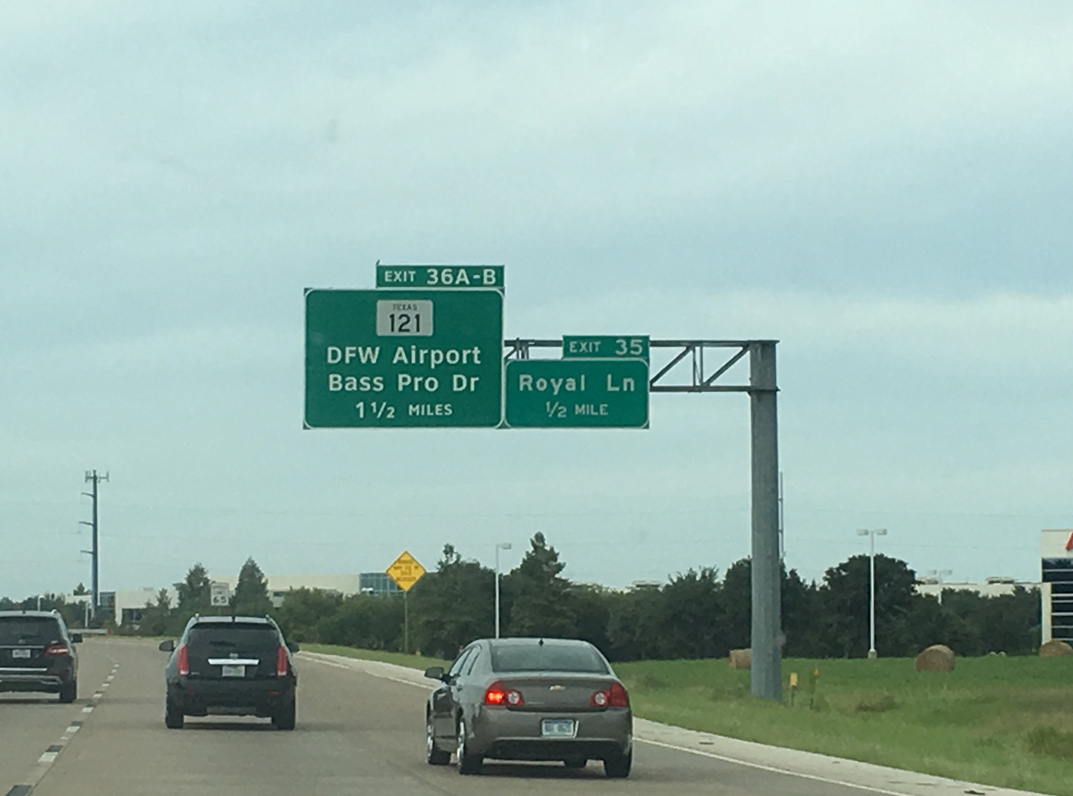

IH 635 straddles the Irving and Coppell city line northwest to the diamond interchange (Exit 35) with Royal Lane preceding SH 121. Photo taken by Matt Tharp (10/09/16).

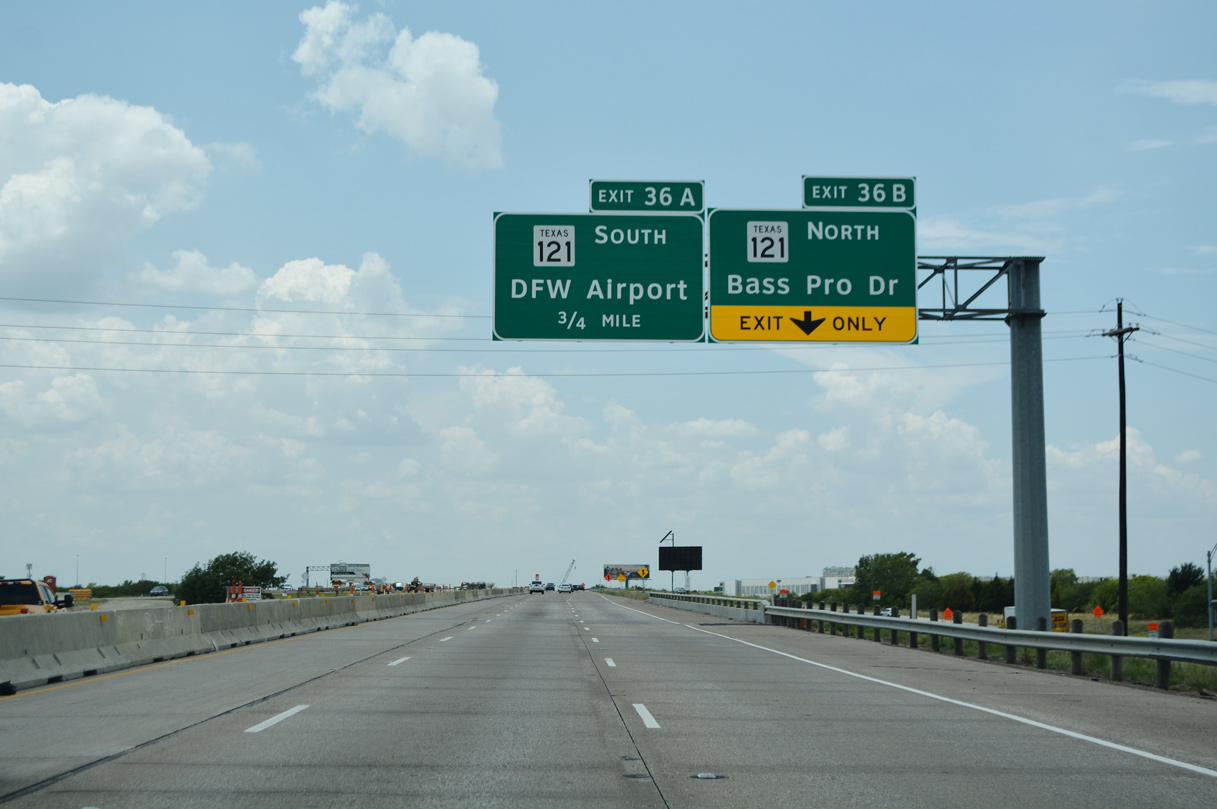

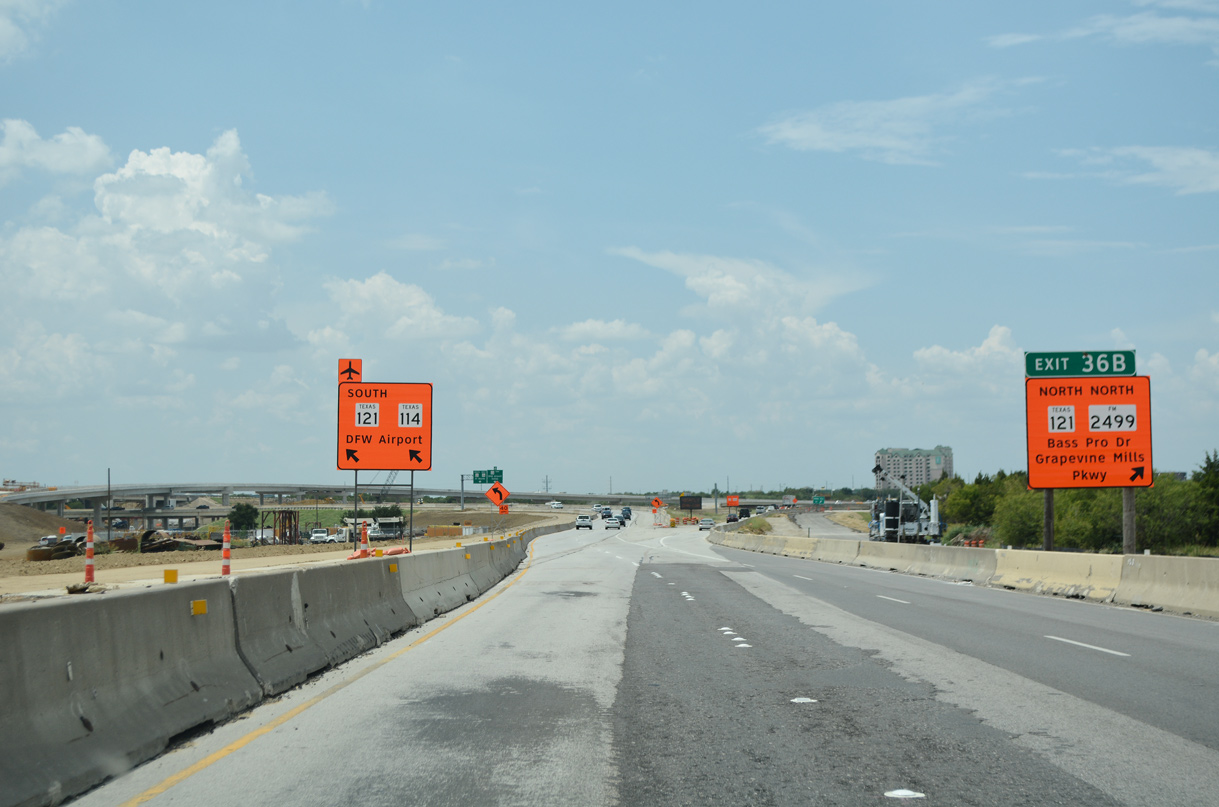

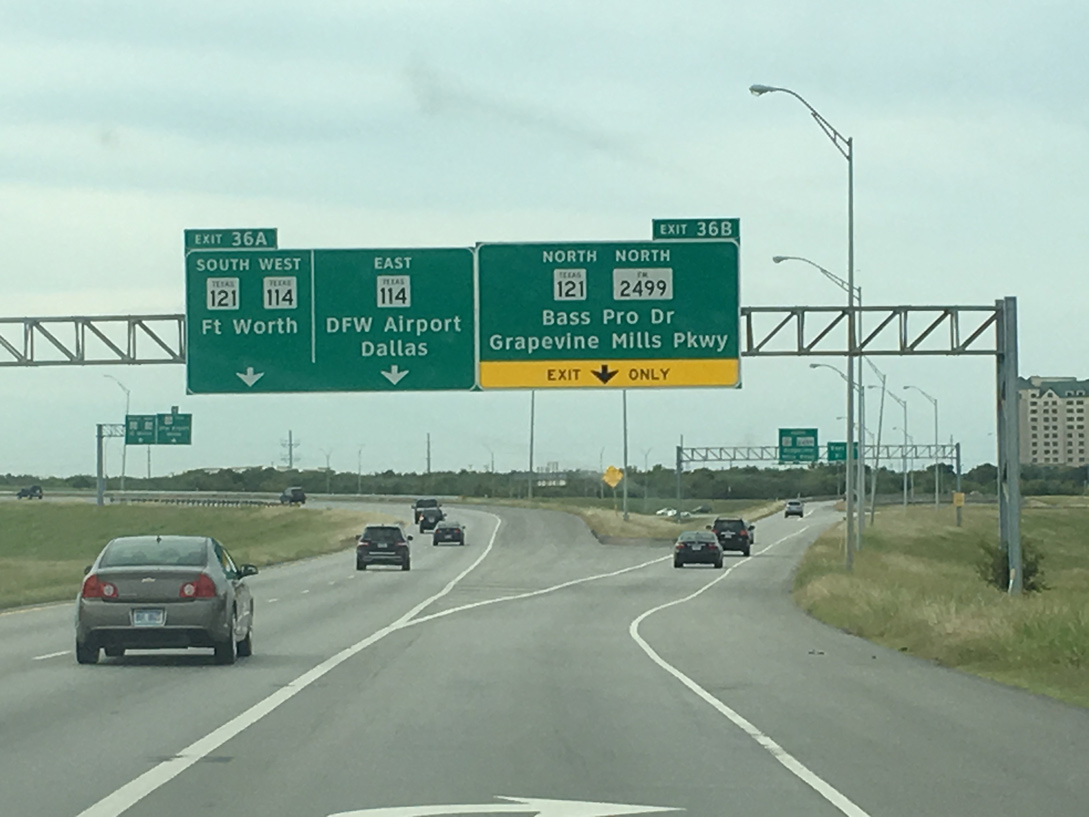

Crossing over Royal Lane, IH 635 advances west to the Tarrant County and Grapevine city line at the split of Exit 36 for SH 121. Photo taken 08/06/19.
Exit 36A separates into ramps for SH 114/121 south to Southlake and Fort Worth, SH 114 east to Irving and International Parkway south to Dallas Fort Worth International Airport (DFW). First photo taken 08/06/19 and second by Matt Tharp (10/09/16).

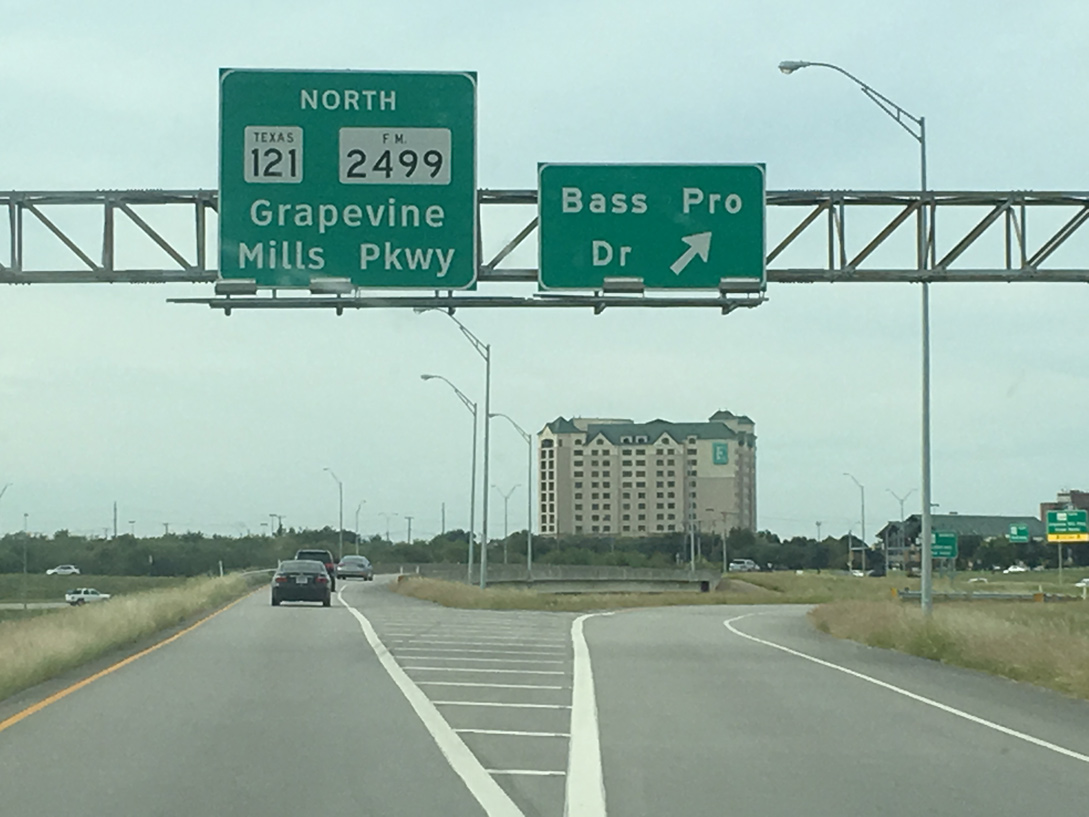

Exit 36B partitions with a ramp to Bethel Road east and Bass Pro Drive. A distributor roadway continues northward to FM 2499 (Grapevine Mills Parkway) for Flower Mound and SH 121 northeast to Lewisville. Photo taken by Matt Tharp (10/09/16).

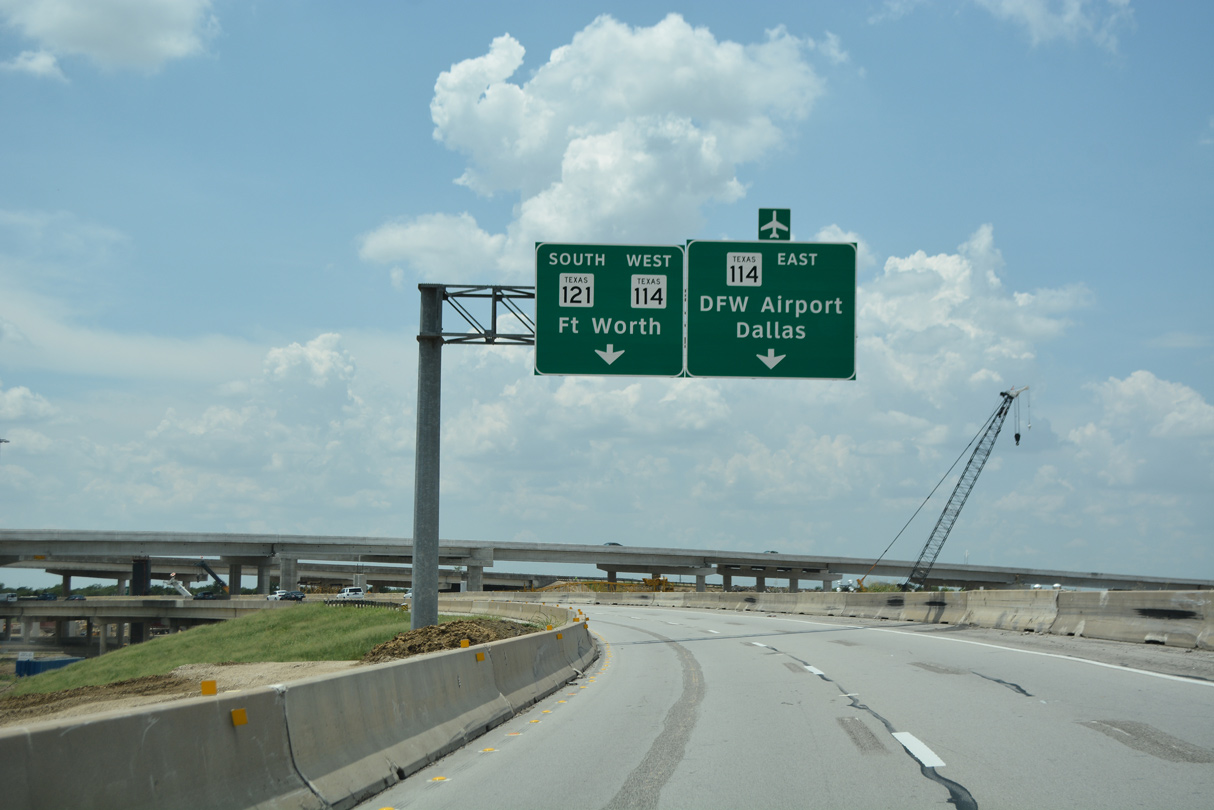

The flyover for SH 121 south separates into ramps for International Parkway to Dallas-Fort Worth International Airport (DFW) / SH 114 east and the SH 121 mainline to SH 114 west through Grapevine. Photo taken 08/06/19.
North at

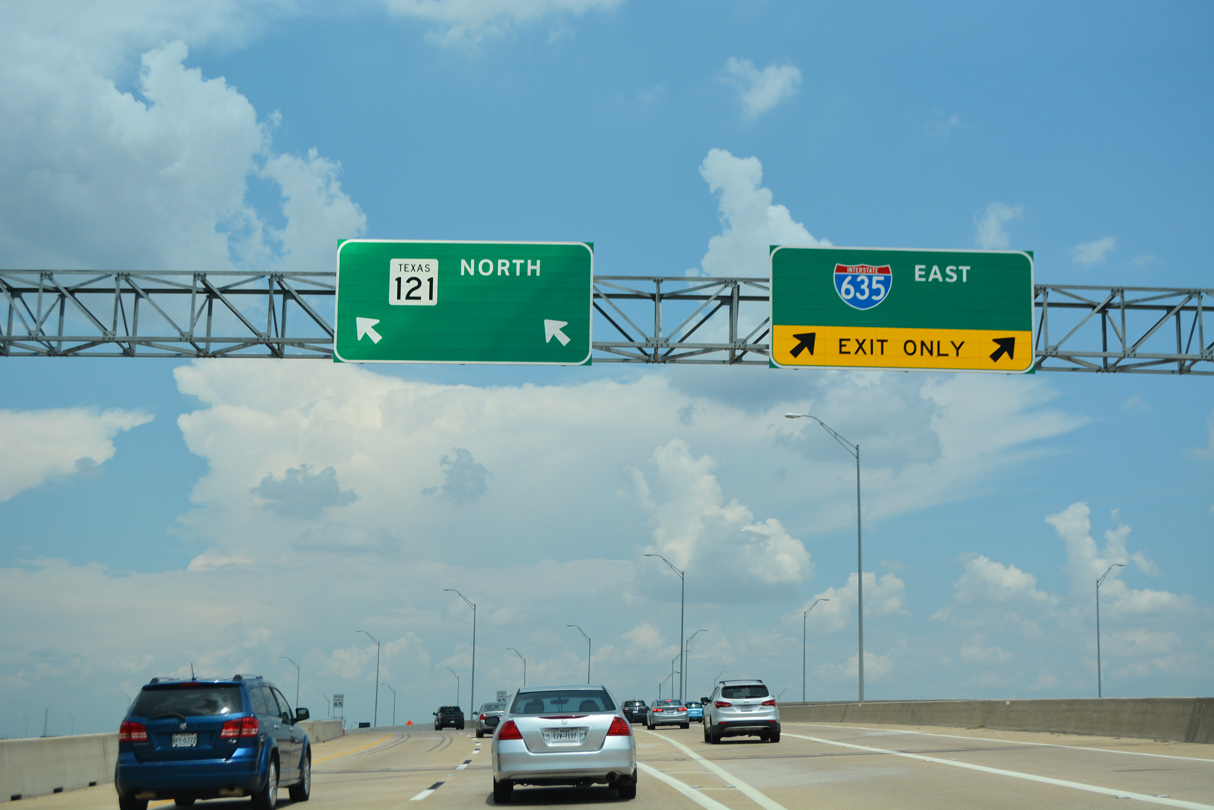

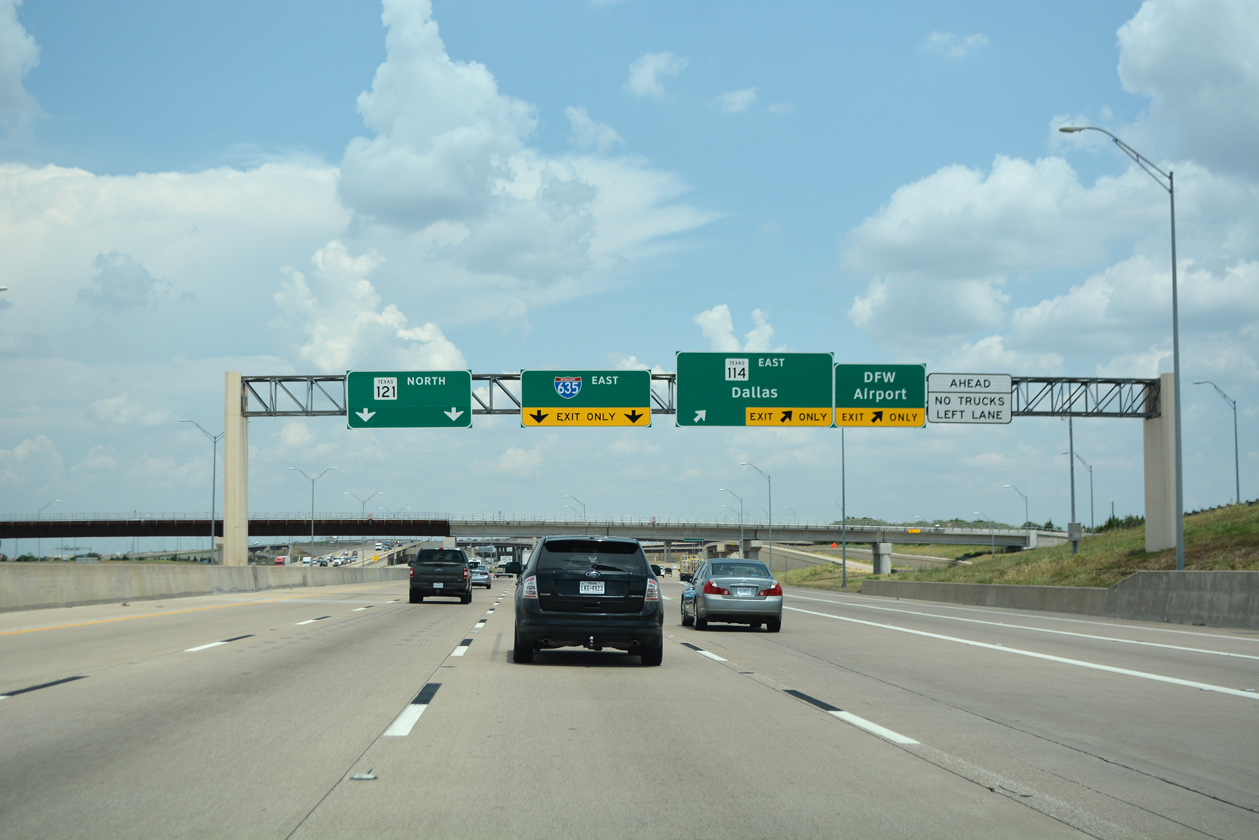

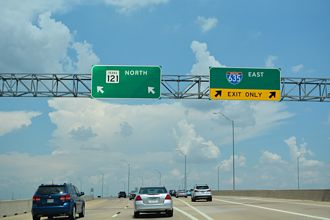

SH 121 northbound partitions with ramps for International Parkway south, SH 114 east to Dallas and a flyover for IH 635 (LBJ Freeway). This exchange was rebuilt during the first phase of the DFW Connector Project. Photos taken 08/06/19.
South at

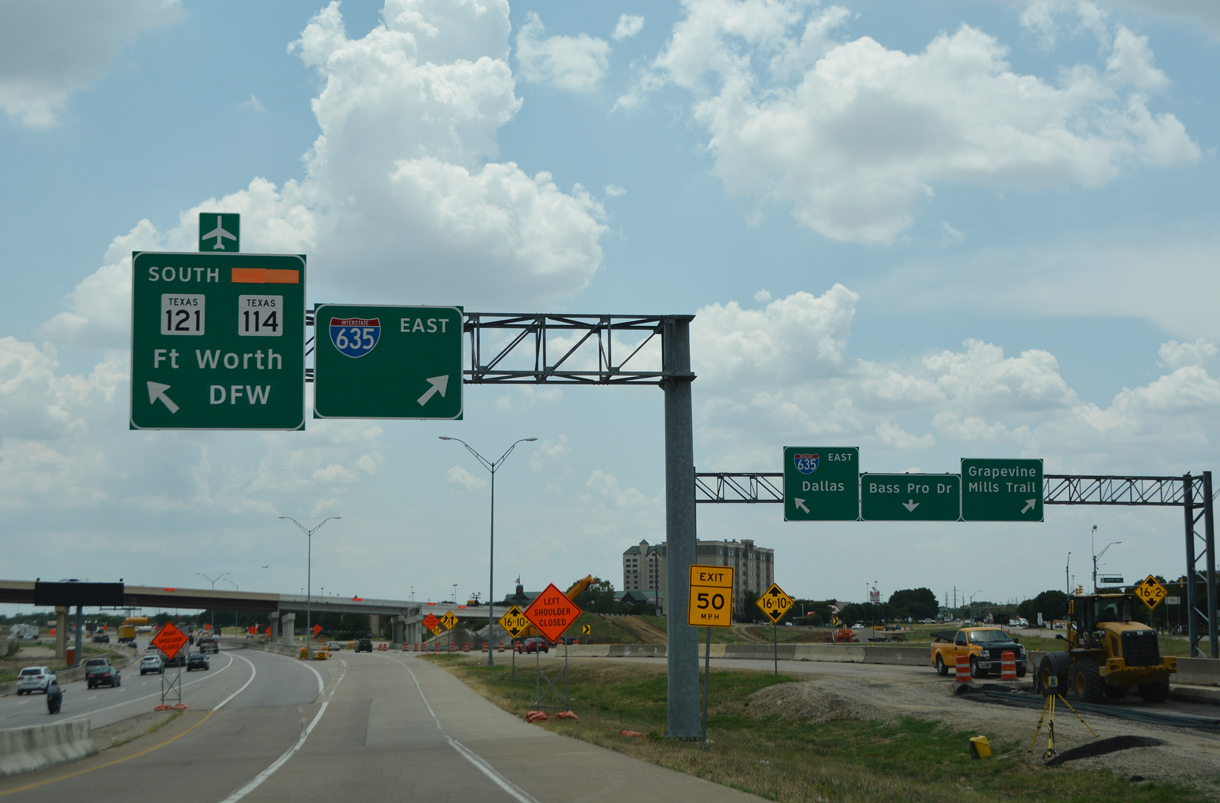

FM 2499 (Grapevine Mills Parkway) ties into a ramp system joining SH 121 southbound with SH 26 and IH 635 east. Photo taken 08/06/19.
South End – Balch Springs, Texas
South at

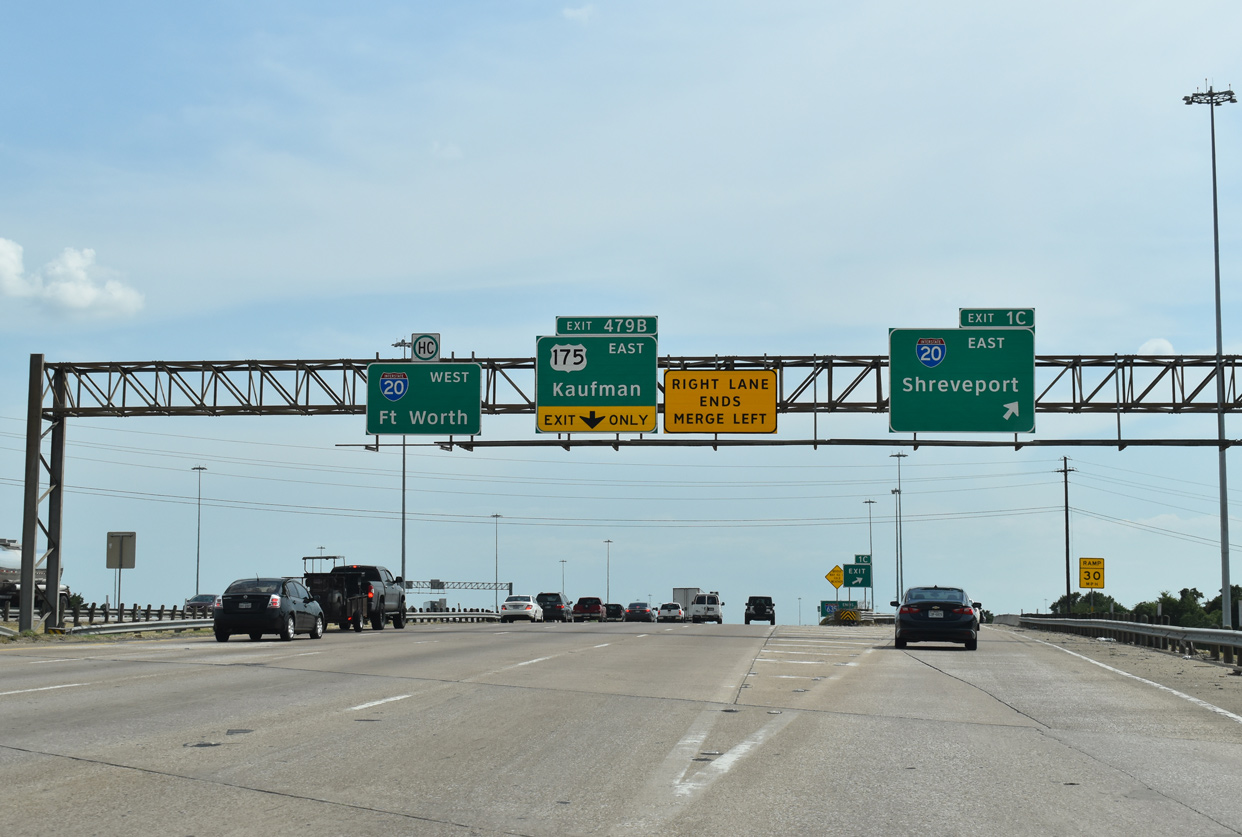

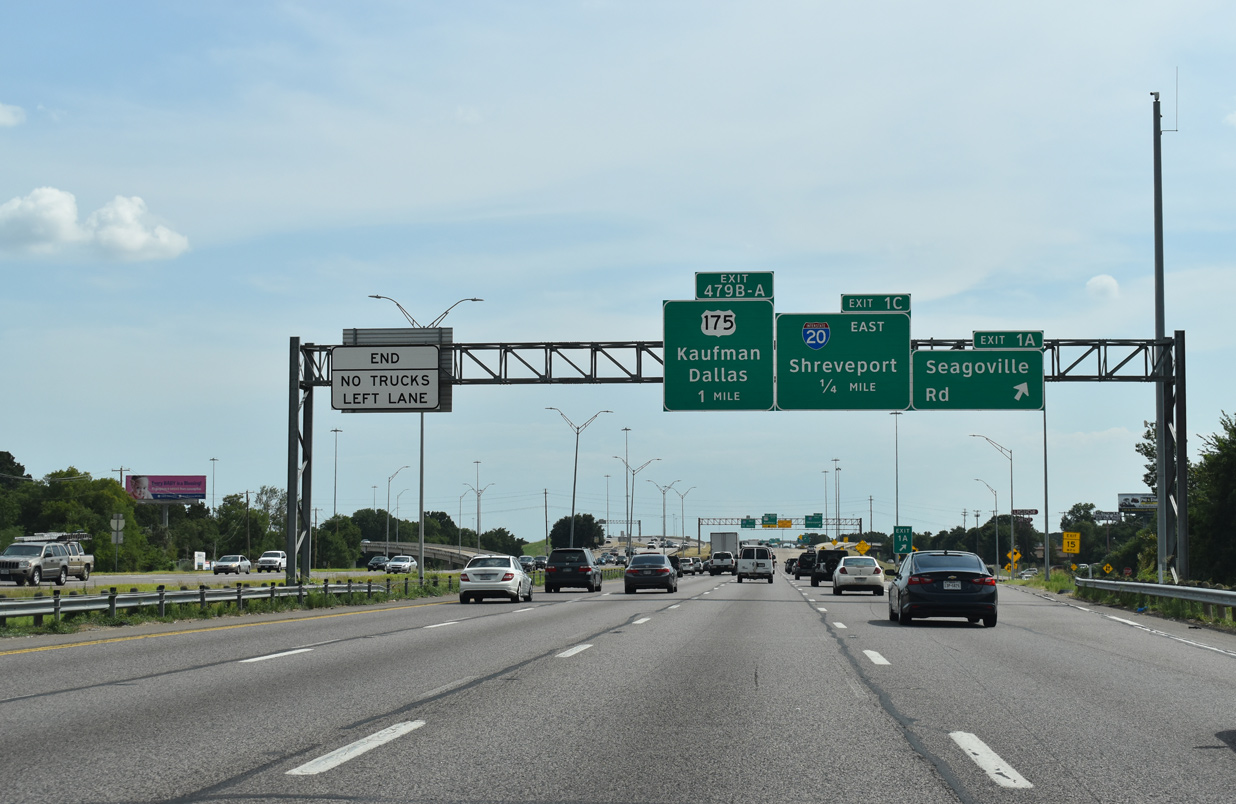

A directional ramp (Exit 1C) leads east from IH 635 southbound onto IH 20 at Seagoville Road. Photo taken 08/06/19.
Eastbound IH 20 vacates the Dallas area en route to Terrell in 20 miles. Photo taken 08/06/19.

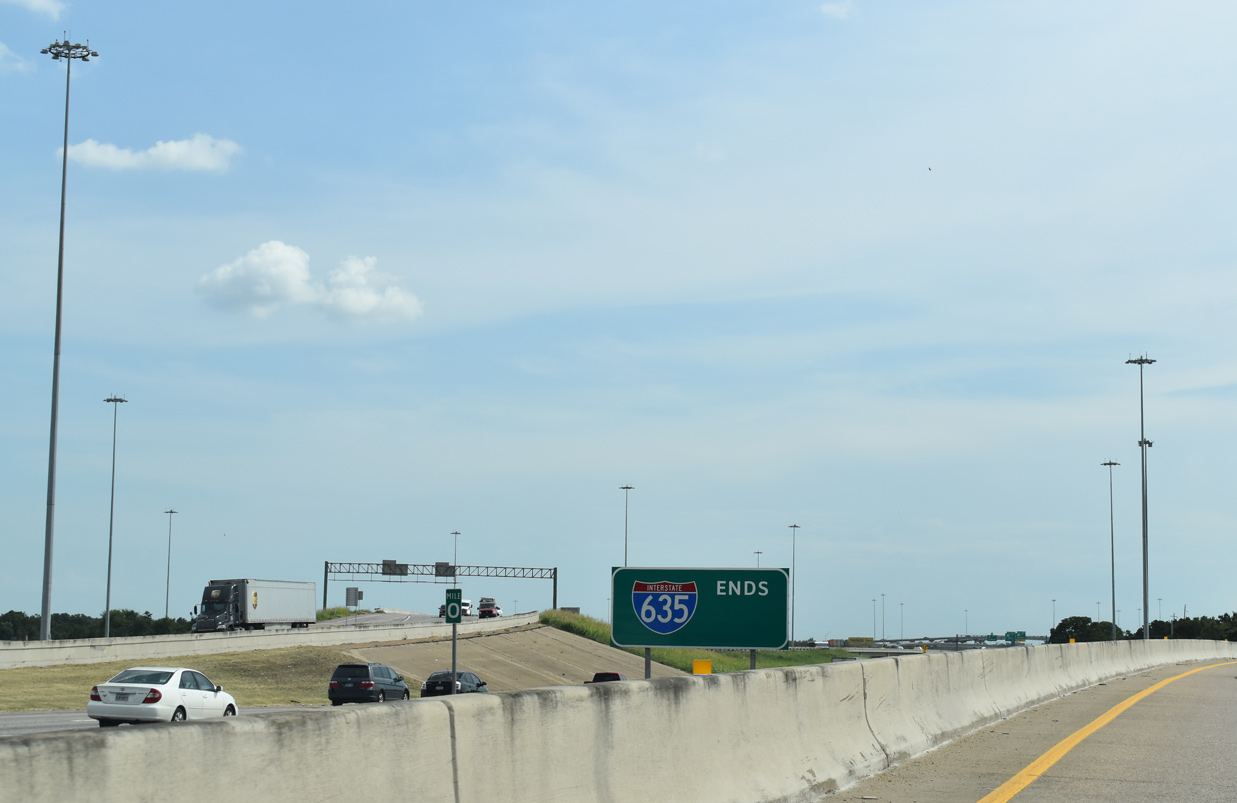

Milepost zero is located just beyond the Seagoville Road underpass. The systems interchange joining IH 20 with U.S. 175 (C.F. Hawn Freeway) lies just to the southwest. Photo taken 08/06/19.
East at

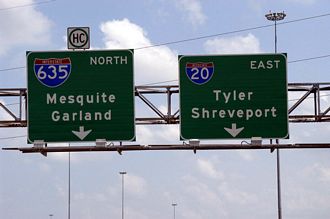

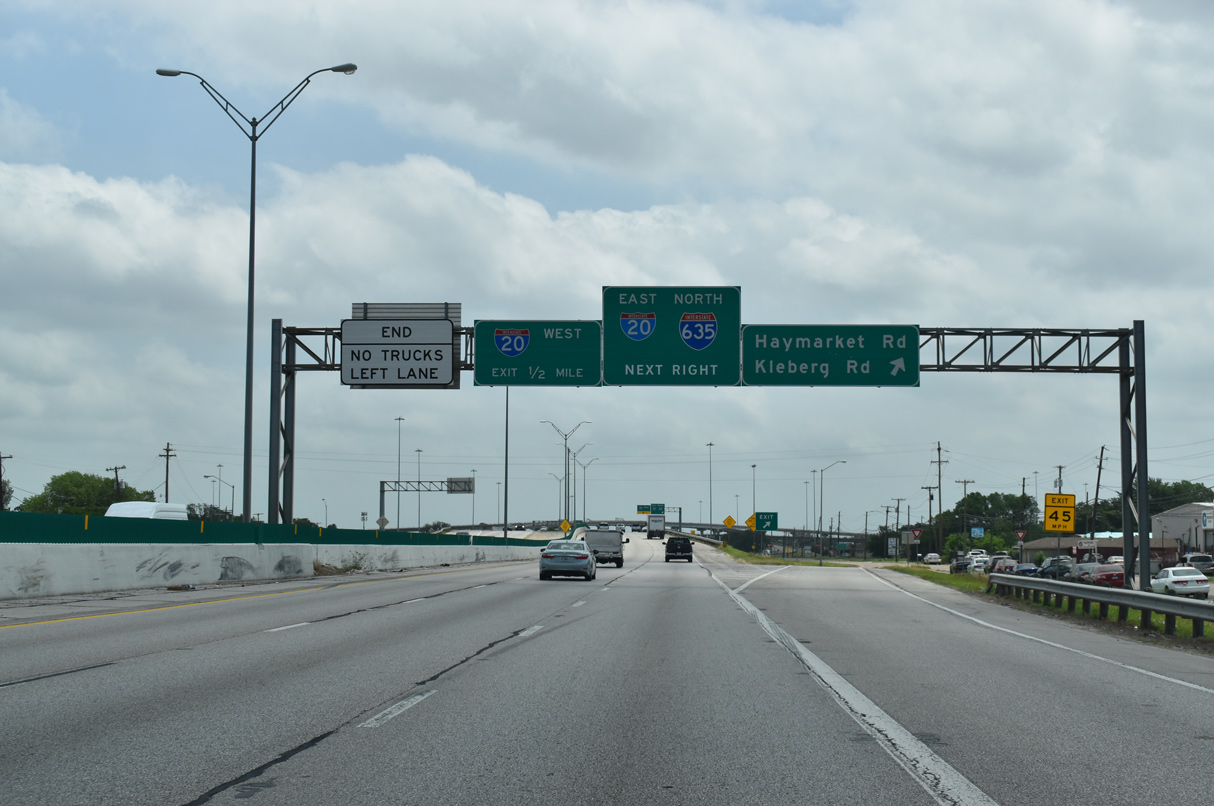

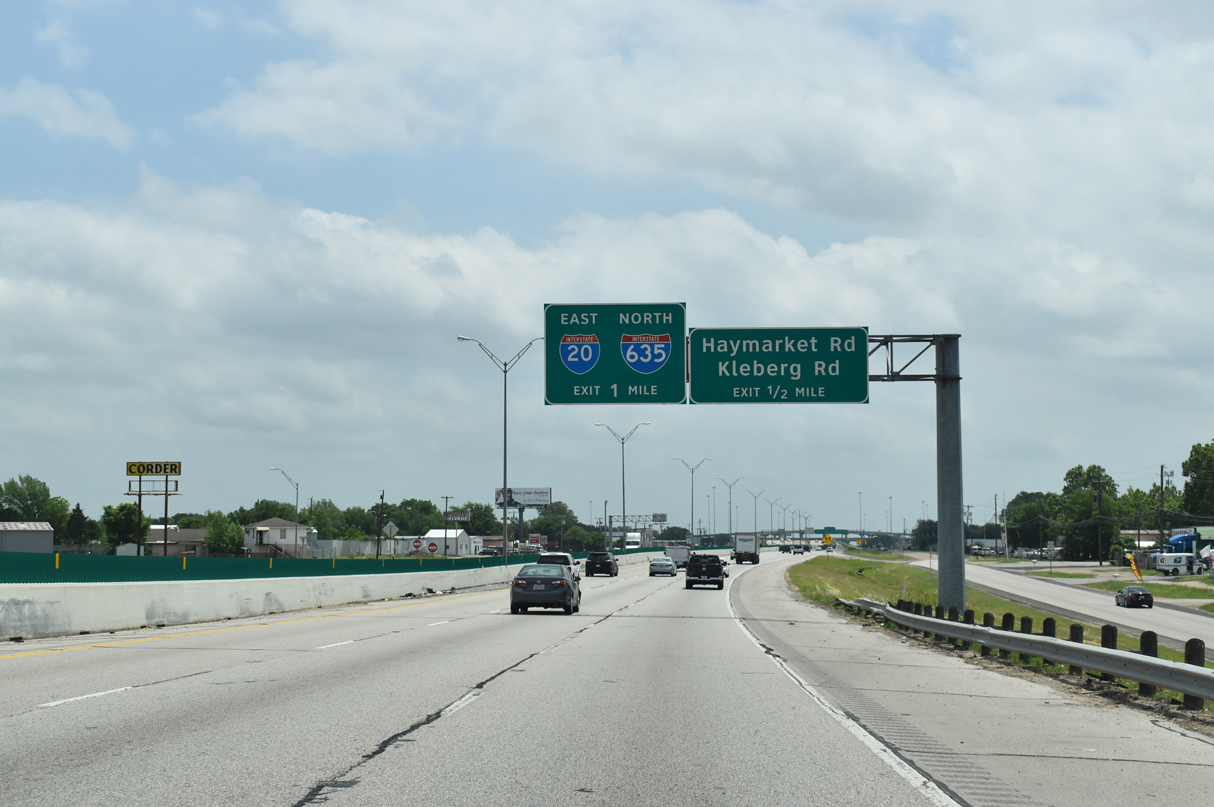

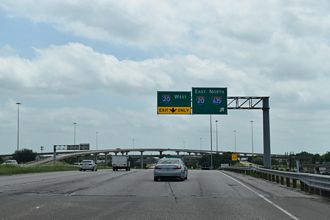

IH 20 turns northeast through the multi level interchange with U.S. 175 (C.F. Hawn Freeway) to the immediate south of IH 635 (Lyndon B. Johnson Freeway). U.S. 175 originates in Dallas and travels east to Seagoville, Crandfall and Kaufman. Photo taken 08/06/19.

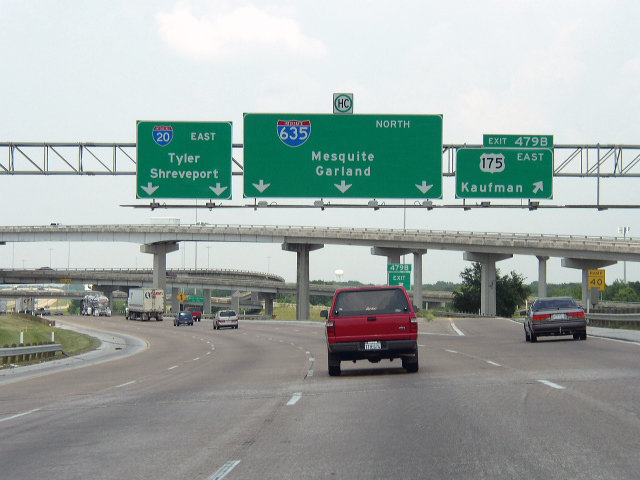

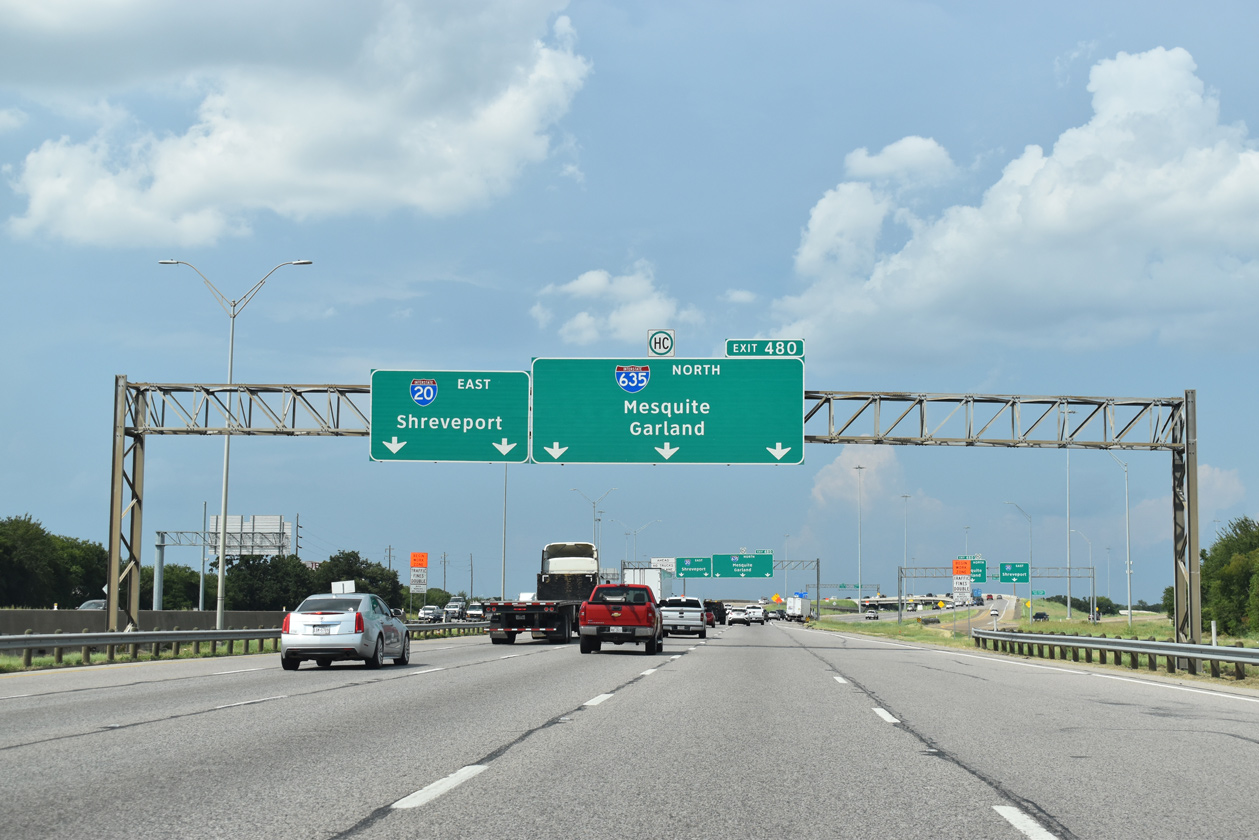

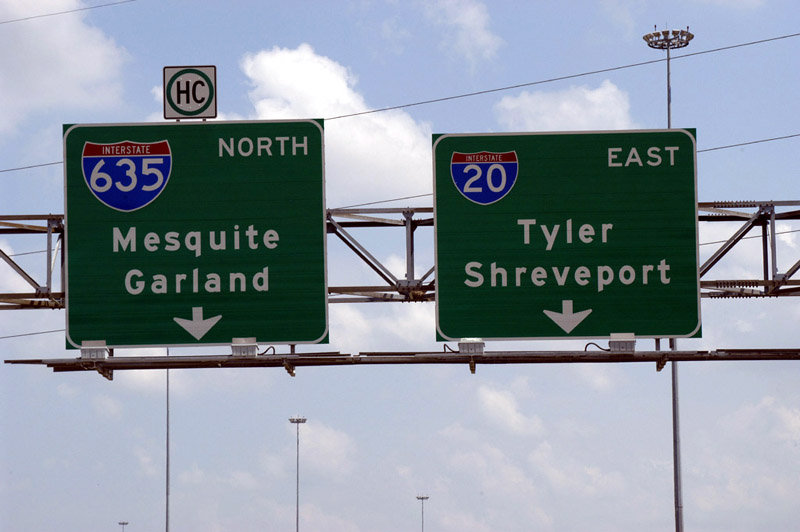

Guide signs for IH 635 originally used no control cities. When IH 20 was completed across south Dallas and IH 635 was truncated east to Balch Springs, Mesquite was added for the LBJ Freeway at Exit 480. Garland was added to signs by 2000. Photo taken 08/06/19.

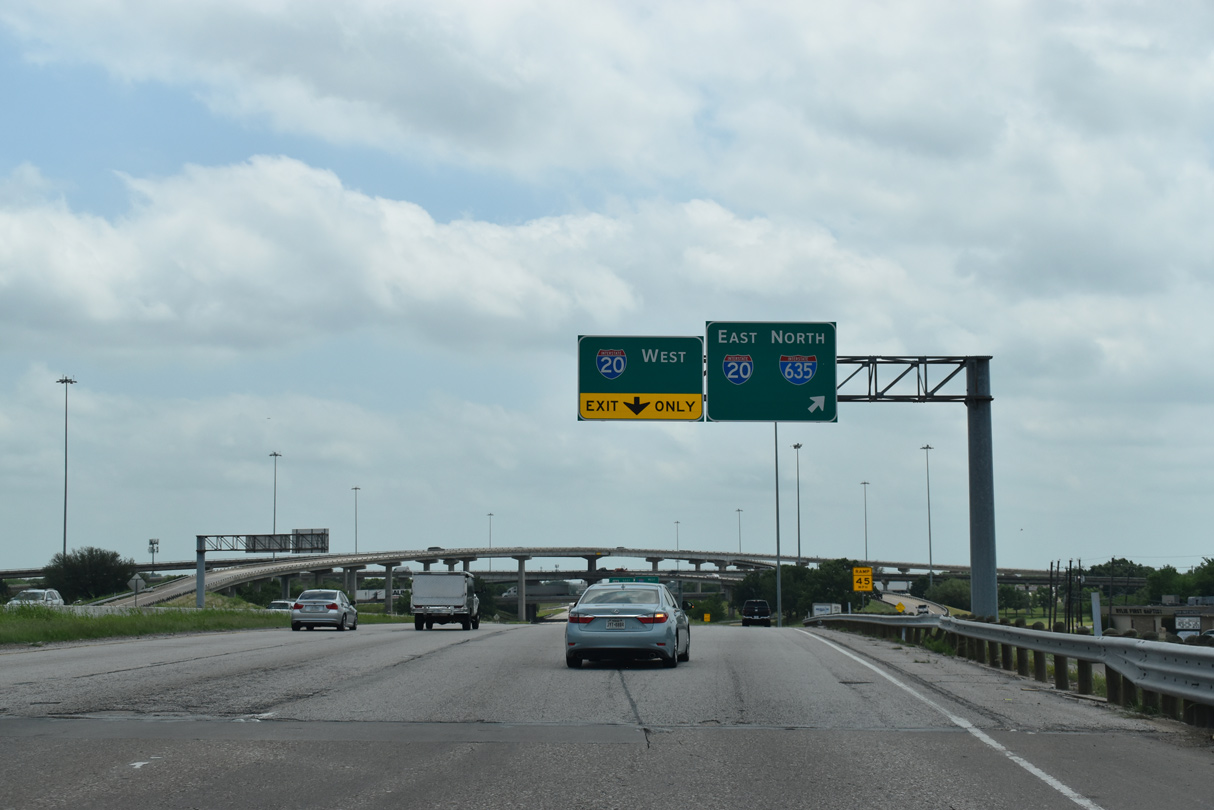

The flyover from U.S. 175 (Hawn Freeway) east partitions into ramps for IH 635 north and IH 20 east adjacent to the Interstate 20 mainline. Photo taken by Jeff Royston (08/19/02).

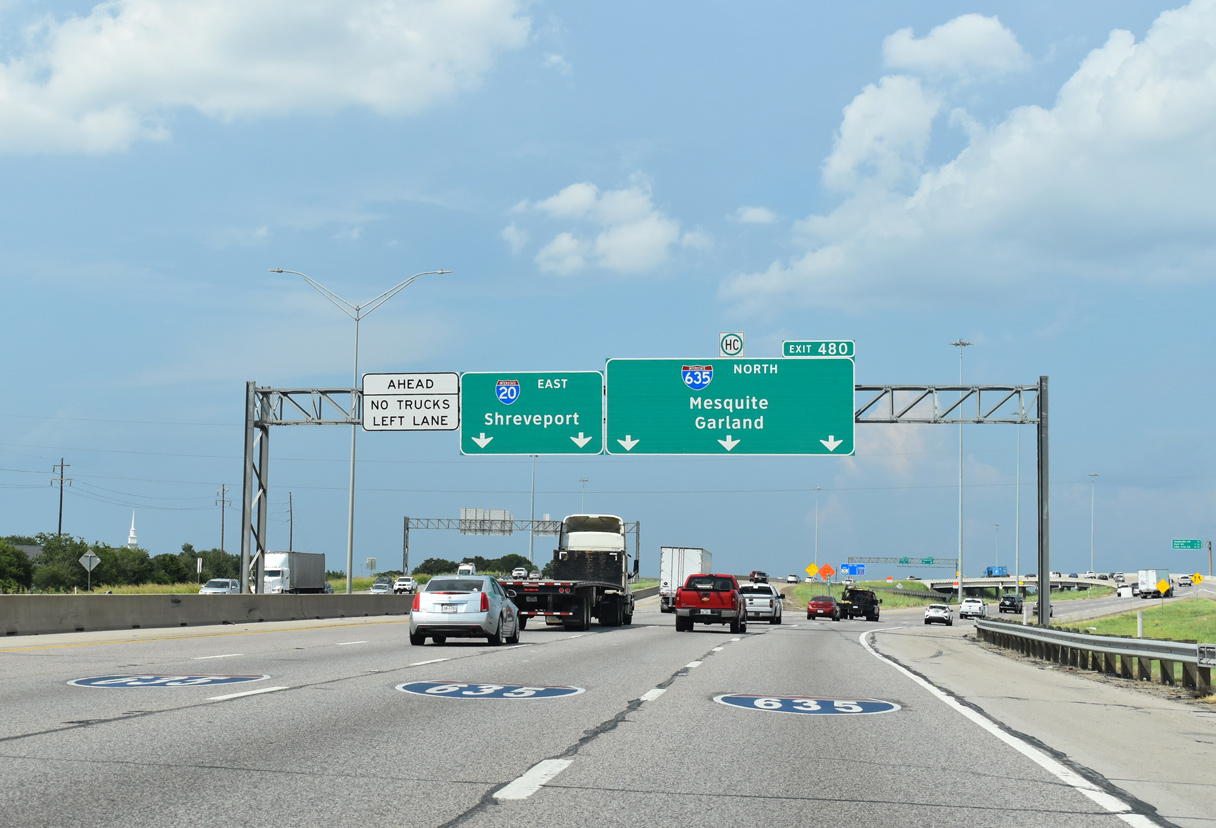

Entering the directional T interchange (Exit 480) with IH 635 north on IH 20 in Balch Springs. IH 20 travels through southern reaches of Mesquite to Terrell. The LBJ Freeway branches north to central Mesquite and IH 30. Photo taken 08/06/19.
West at

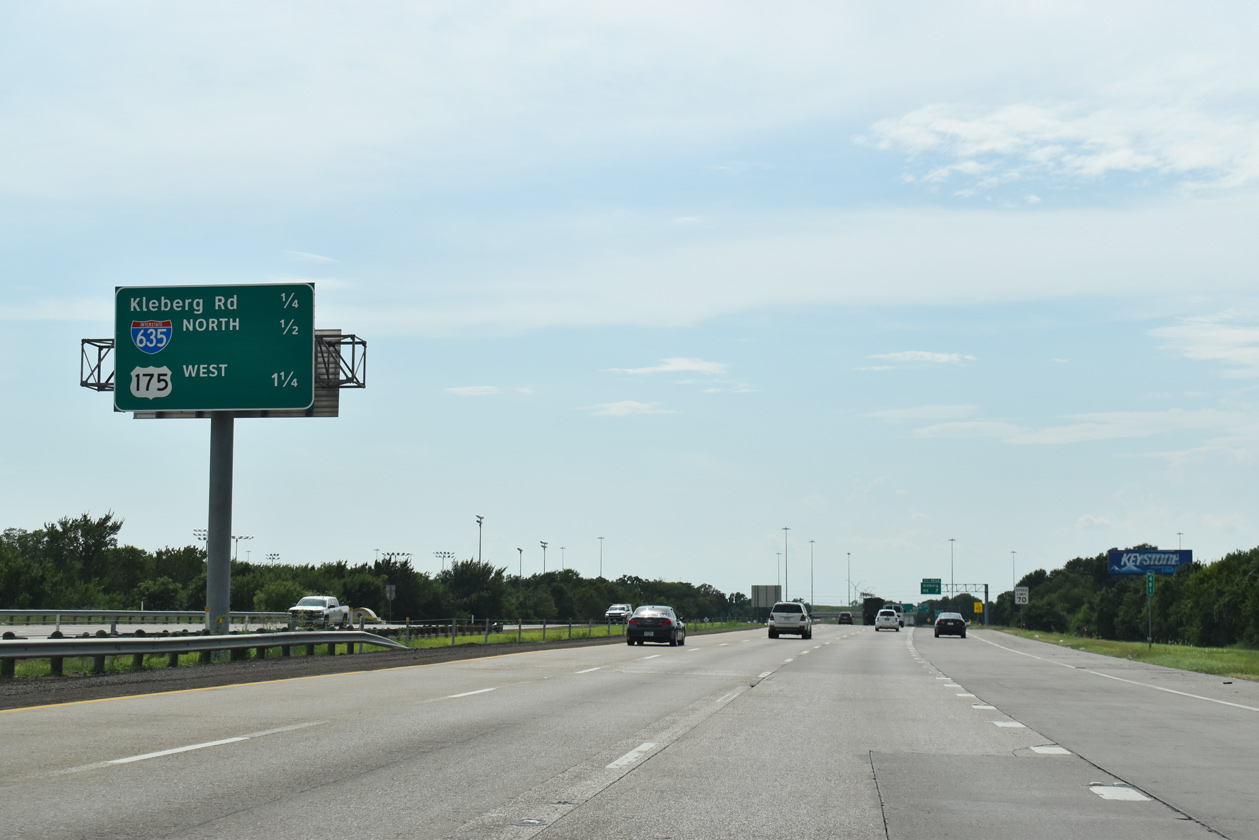

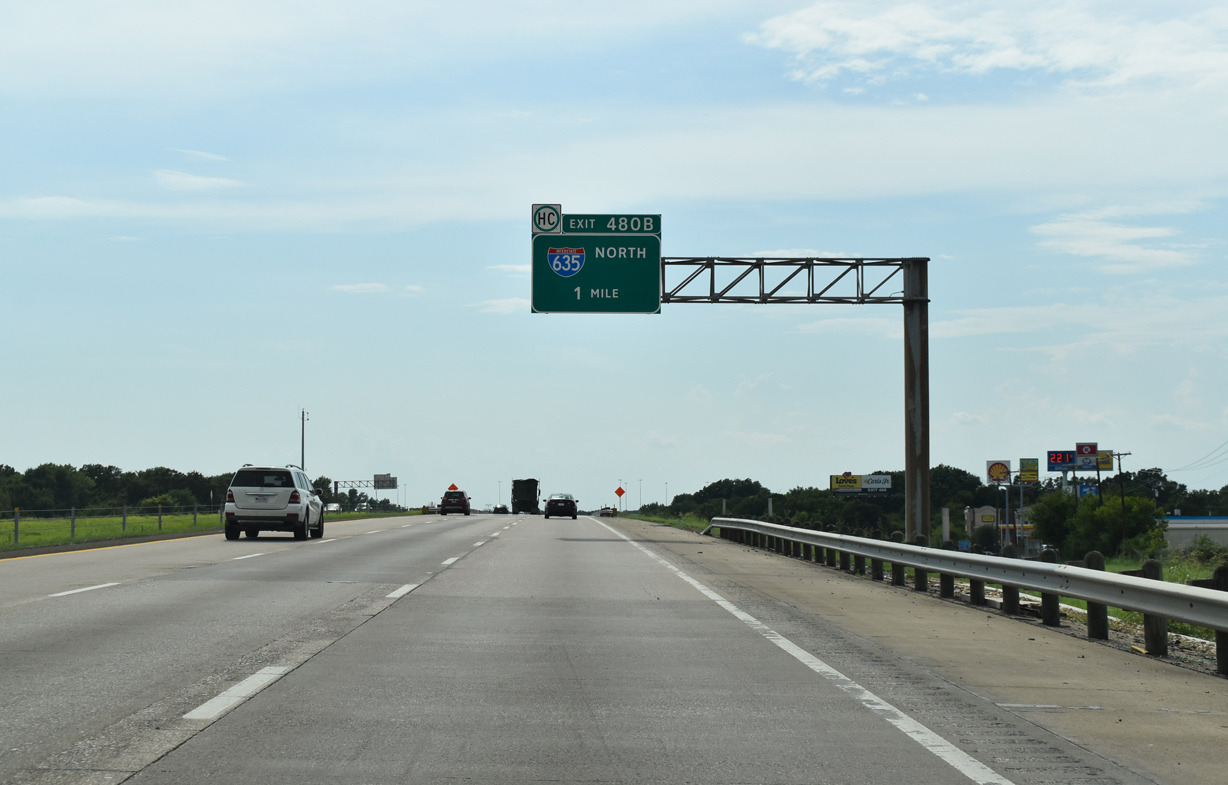

One mile ahead of IH 635 (Exit 480) on IH 20 west at the Seagoville Road underpass. Hazardous cargo based transport is permitted on both IH 20 and IH 635 around the city of Dallas. The two freeways stay 12 to 14 miles out from the city center. Photo taken 08/06/19.

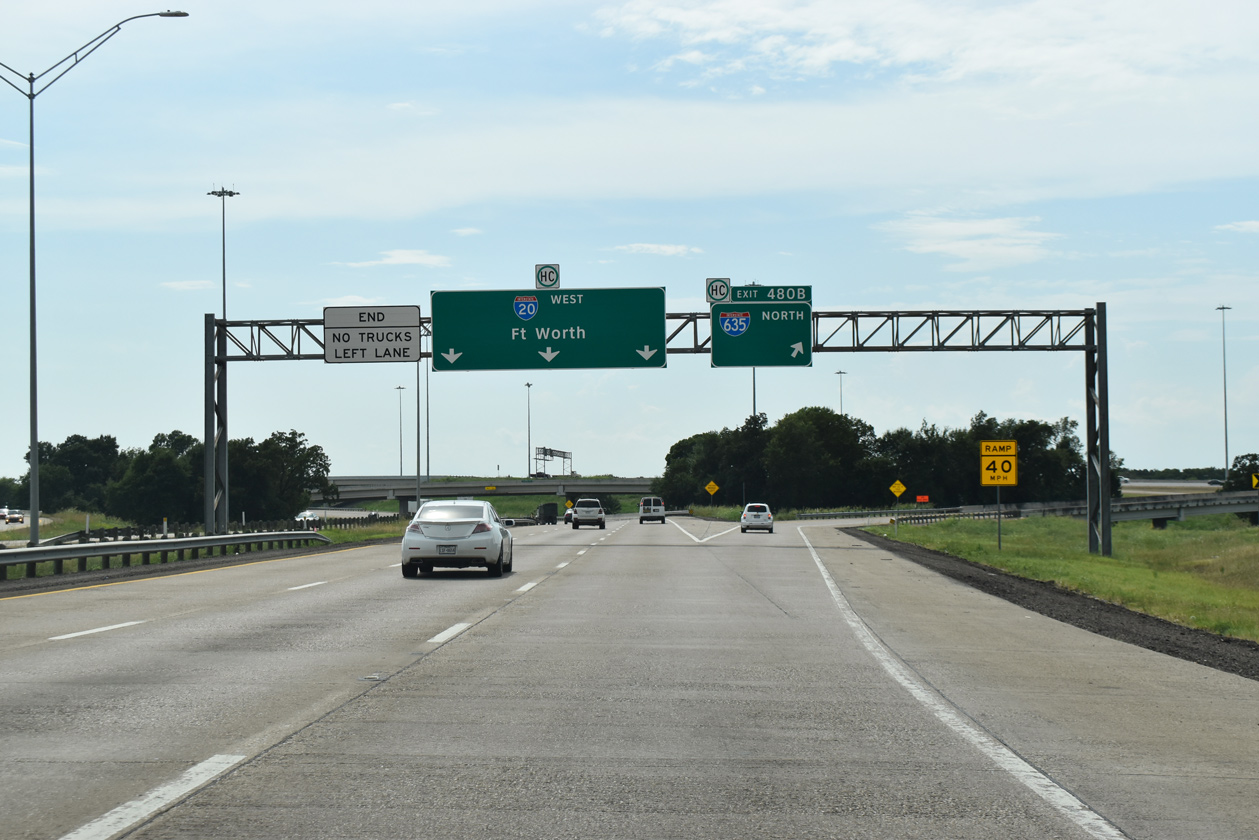

The entrance ramp from Seagoville Road adds a short auxiliary lane for Exit 480A (Kleberg Road) just ahead of the directional T interchange (Exit 480B) with the LBJ Freeway north. Photo taken 08/06/19.
IH 635 arcs northwest toward Richardson and Farmers Branch. IH 20 runs across south Dallas between Hutchins and Duncanville. The Dallas city center lies 13 miles to the northwest. Downtown Fort Worth is 46 miles to the west. Photo taken 08/06/19.
North
A begin sign for IH 635 appears along the connection from IH 20 east to the LBJ Freeway north beyond the gore point (Exit 1A) for Seagoville Road. Photo taken 08/06/19.
South End Throwback
This end shield preceded the Seagoville Road off-ramp at Exit 1A. It was replaced with a southbound confirming marker by 2011. Photo taken 10/19/03.
Guide signs at the south end of IH 635 were replaced by 2007 to use Clearview font. Tyler was also dropped as a second control city for IH 20 east. Photo taken 10/19/03.

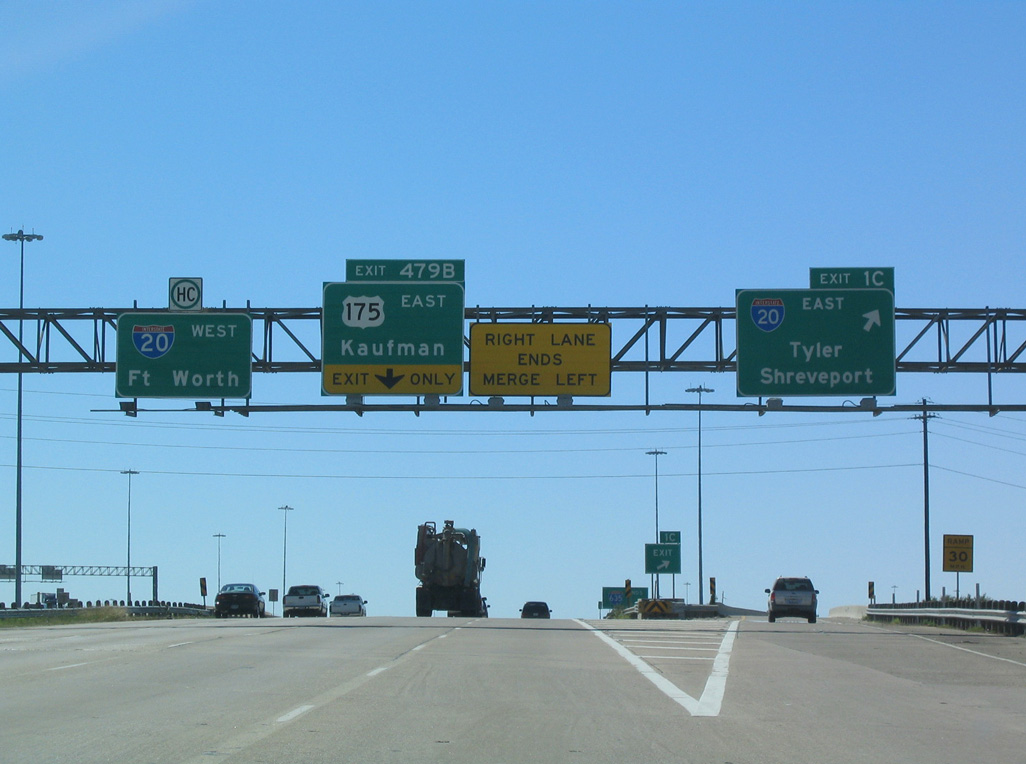

Sign changes made by the early to mid 1990s added Tyler in addition to Shreveport, Louisiana for IH 20 east. Photo taken by Chris Patriarca (06/20/03).
