Overview

Interstate 540 is the Northern Wake Expressway, a commuter route serving northern Wake County and the Raleigh metropolitan area from Raleigh-Durham International Airport (RDU) east to Knightdale. I-540 is the northern third of a planned beltway encircling the capital city west to Apex, south to Garner, east to Knightdale and north by Wake Forest. The Northern Wake Expressway is toll free, while the Western Wake Expressway (NC 540) south of NC 54 (Chapel Hill Road) to NC 885 (Triangle Expressway) is a toll road. Toll NC 540 continues 14.3 miles south along the Triangle Expressway (TriEx) to NC 55 between Apex and Holly Springs.

Extending east from NC 55 to I-40/U.S. 70 at Future I-42, the Triangle Expressway Southeast Extension / Southern Wake Expressway is under construction. Split into three sections, the $2.5 billion project started in 2019.

Delays and costs increases for the final 28.4 miles were partially attributed to wetland impacts and the endangered dwarf wedgemussel. Mitigation efforts are required to contain pollution related threats and erosion impacts to the watershed that may adversely effect the mussel. The mussel habitat in the Swift Creek watershed previously hampered construction for the Clayton Bypass (U.S. 70), which was completed in 2008. Alternatives for the Complete 540 Project included the Red Route, which would avoid mussel damage but require substantial property acquisition through Garner including businesses and neighborhoods, and the Orange Route, an alignment from Holly Springs to I-40 south of Garner with direct impacts to Swift Creek and several tributaries.1

Expected to open to traffic in 2023 Spring 2024, the three projects for Phase 1 of the TriEx Extension:1

  • R-2721A – NC 55 to east of Pierce of Olive Road to  – Design-build contract awarded in July 2019, construction started in November 2019.
  • R-2721B – Pierce Olive Road to U.S. 401 near Wake Technical Community College. – Design-build contract awarded in February 2019
  • R-2828 – U.S. 401 to I-40/42 near Garner – Design-build contract awarded in November 2018.

Project R-2829, Phase 2 of the TriEx Extension, will construct the Eastern Wake Expressway from I-40 north to I-87/U.S. 64-264 at Knightdale. Design-build contracts for the segment between Rock Quarry Road and I-87/540 was awarded in September 2023, and for the section from I-40/42 to south of Rock Quarry Road in October 2023. Construction on Phase 2 is anticipated to start in Spring 2024 and be completed in 2028.

Longtime residents of Wake County refer to Interstate 540 by its number quite often, as opposed to I-440, which is nearly exclusively referred to as the Beltline. I-540 is also referenced as the “Outer Loop” or interchangeably with I-540 as the “540 Outer Loop”.

History

Planning for what would later be Interstate 540 formally began in the early 1970s, after the idea emerged in 1968.2 The need for a new route followed a series of developments, starting with the dedication of Research Triangle Park (RTP) in 1959 and the 1962 opening of IBM within the park. Succeeding development in North Raleigh followed, with the Brentwood, North Ridge and Quail Hollow subdivisions established. The lone freeway in Raleigh at the time was the Beltline, while I-40 was not completed until 1969. North Carolina Route 54, with just two lanes then, was the only way into RTP otherwise.

Once Interstate 40 was completed, the need for an east to west freeway through North Raleigh became apparent. Traffic between RTP and Raleigh had to navigate north/south roads to reach the Beltline and its connection with Interstate 40 west into RTP. A direct connection from I-40 to near RTP from north Raleigh was prevented due to the presence of Umstead State Park and the RDU Airport. The addition of many new neighborhoods to the southeast of Umstead Park hampered the potential of a southern route, though one corridor, the Duraleigh Connector, was eventually chosen. It however was canceled, leading efforts to shift to a new northern route further out from existing development.

Named the Northern Wake Expressway, the new northern corridor appeared on planning maps in 1976 as a route along the edge of the Falls Lake watershed. Developers began acquiring land in anticipation of the future route, with subdivisions taking shape along the eventual Interstate 540 by 1985. The right of way was preserved however, so very few structures were demolished to make way for the new freeway.

Population growth in western Wake County gained steam by the mid 1980s, leading the North Carolina Department of Transportation (NCDOT) to expand the northern corridor into a beltway encircling Raleigh, at a roughly 12 mile radius to Downtown. These changes did not effect preliminary work on the original Northern Wake Expressway, as it was incorporated as the first segment of planned full loop.

The Beltline freeway circling Raleigh was designated as Interstate 440 in 1991, while the Northern Wake Expressway remained undesignated until 1996, when the first portion neared completion. NCDOT announced then that the route was assigned the temporary designation of Interstate 540, and upon full completion of the beltway, would be renumbered as Interstate 640. This was based upon the long established convention for the numbering of even three digit Interstates as loops or bypasses.

The first section of I-540, connecting Interstate 40 at Exit 283 within the Durham city and county limits with U.S. 70 (Glenwood Avenue) in northwest Raleigh at Lee township, opened on January 21, 1997. The opening resulted in immediate changes to commuting patterns between RTP and Raleigh, with U.S. 70 and I-540 providing a viable alternate to the Beltline and I-40. Increasing congestion over a three year period along Glenwood Avenue however resulted in some commuters shifting back to the old I-440 and I-40 route.

The associated congestion shifted eastward with every new end point until I-540 reached Capital Boulevard in 2002. Signing of the route east of Glenwood Avenue referenced Future I-540 in place of Interstate 540 until the route connected with U.S. 1. This was due to the rule that all Interstates must end at a National Highway System (NHS) based route, of which none were between U.S. 70 and Capital Boulevard. Subsequent segments of I-540 were opened in phases as the Northern Wake Expressway was extended east:

  • U.S. 70 (Exit 4) to Leesville Road (Exit 7): construction starting in 1996 with completion on December 11, 1999 at a cost of $18.7 million 3
  • Leesville Road (Exit 7) to NC 50 / Creedmoor Road (Exit 9): opened December 21, 20004
  • NC 50 / Creedmoor Road (Exit 9) to Falls of Neuse Road (Exit 14): opened June 29, 2001 at a cost of $20.4 million2
  • Falls of Neuse Road (Exit 14) U.S. 1 /Capital Boulevard (Exit 16) and Triangle Town Boulevard (Exit 17, eastbound only): cost $70 million and corresponded with the resigning of I-540 from a north/south route to an east/west route. It opened August 13, 20025

NCDOT announced in 2002 that Interstate 540 would no longer be renumbered as I-640 upon completion of the route southeast back to I-40. This gave the Northern Wake Expressway the distinction of being the first bypass Interstate route in the system to utilize an odd number. The completion of Interstate 520 in 2009 as a full loop around Augusta, Georgia and North Augusta, South Carolina added a second route matching this criteria.

Route Information

  • East End – Knightdale, NC

  • West End – Durham, NC

  • Mileage – 25.84

  • Cities – Holly Springs, Apex, Morrisville, Durham, Raleigh, Knightdale

  • JunctionsI-40 I-87

Source: December 31, 2021 Interstate Route Log and Finders List

I-540 Annual Average Daily Traffic (AADT)

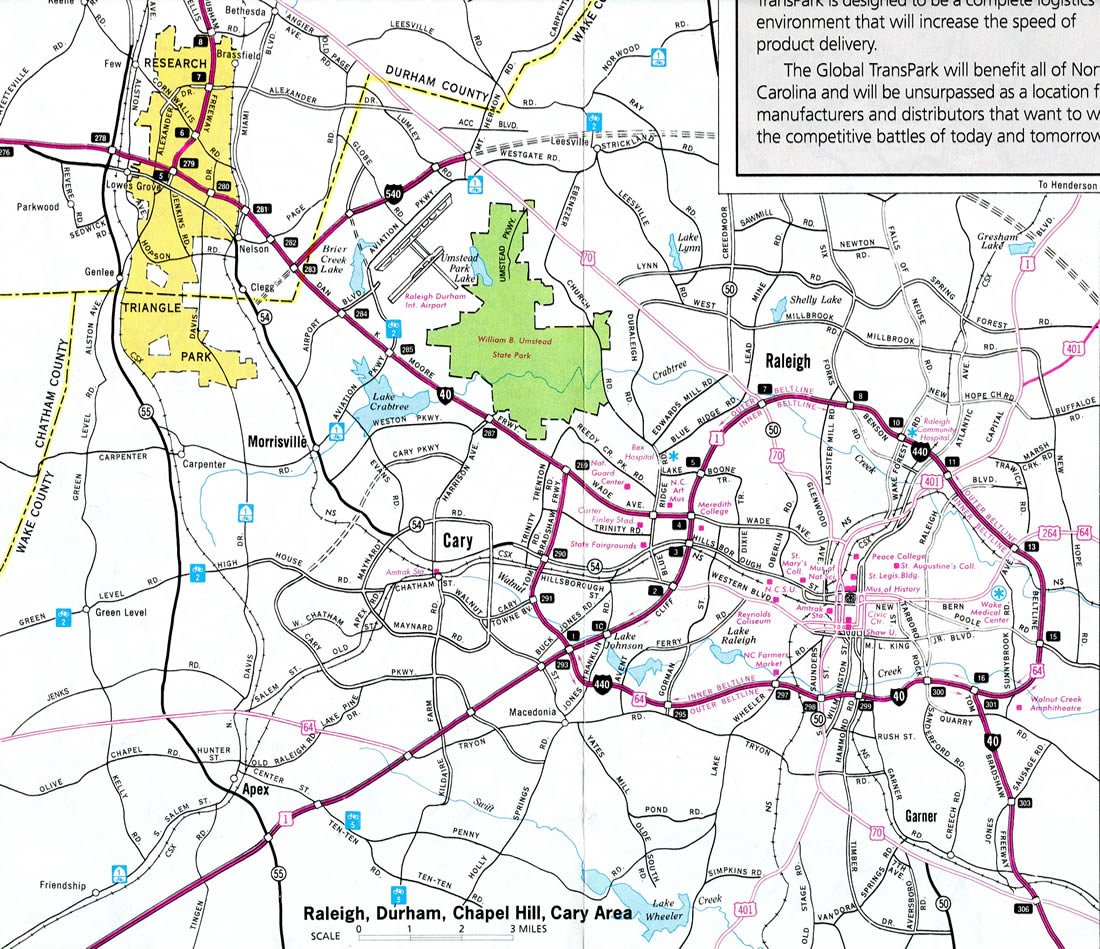

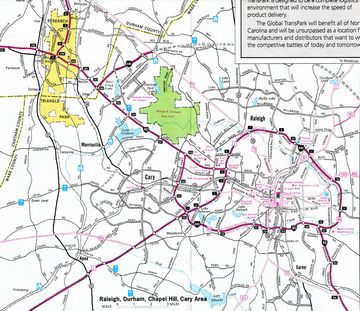

Raleigh, NC - 1999
Raleigh – 1999 North Carolina Official Highway Map

Aviation Parkway was constructed north from I-540 to Globe Road as part of the 7.5 mile long section of the Outer Loop in 1999. The corridor for Interstate 540 was mostly undeveloped forest land at the time.

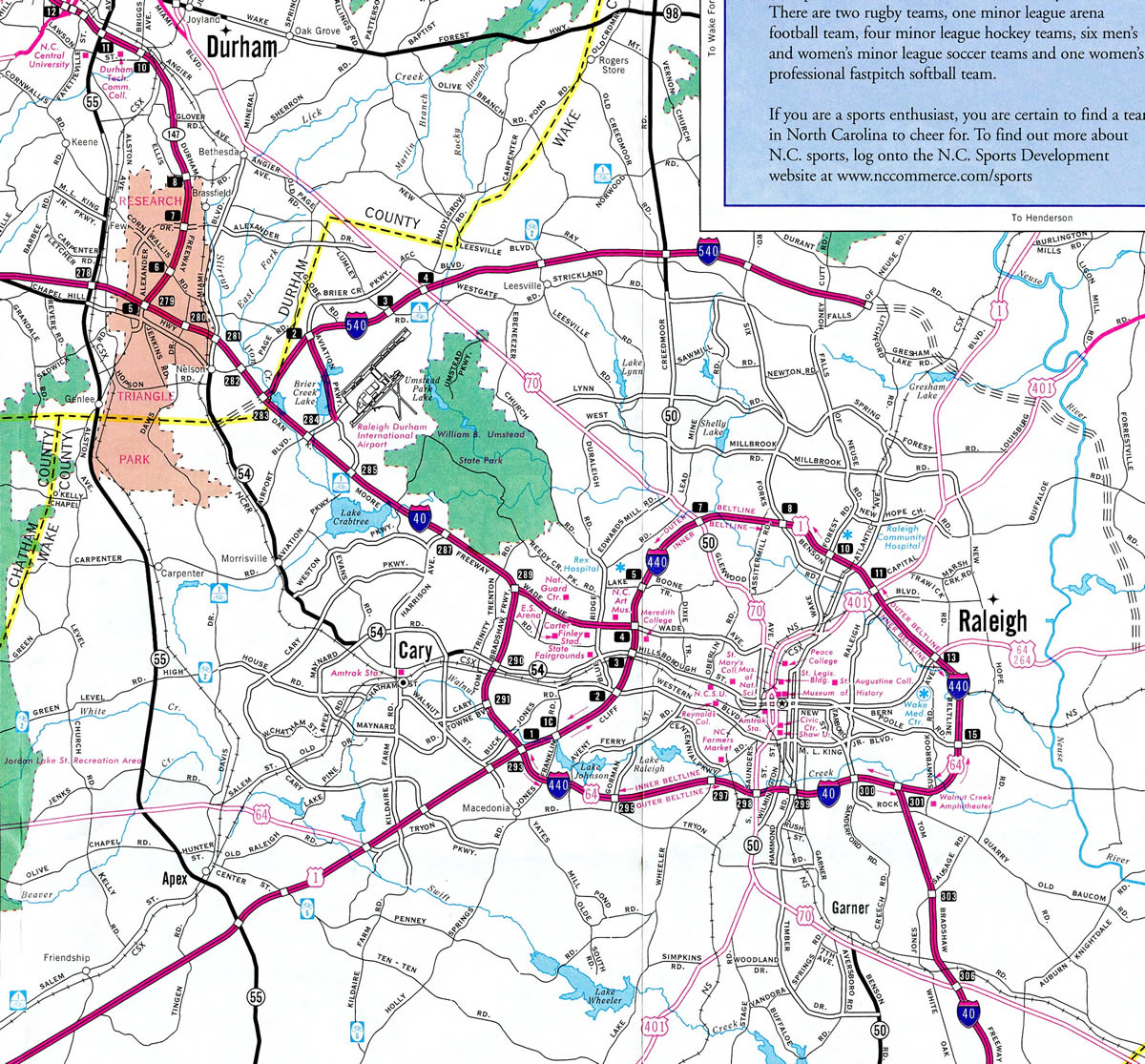

Raleigh, NC - 2001
Raleigh – 2001 North Carolina Official Highway Map

Construction for Interstate 540 east from NC 50 to Falls of Neuse Road bisected the Shannon Woods subdivision while otherwise threading between established neighborhoods.

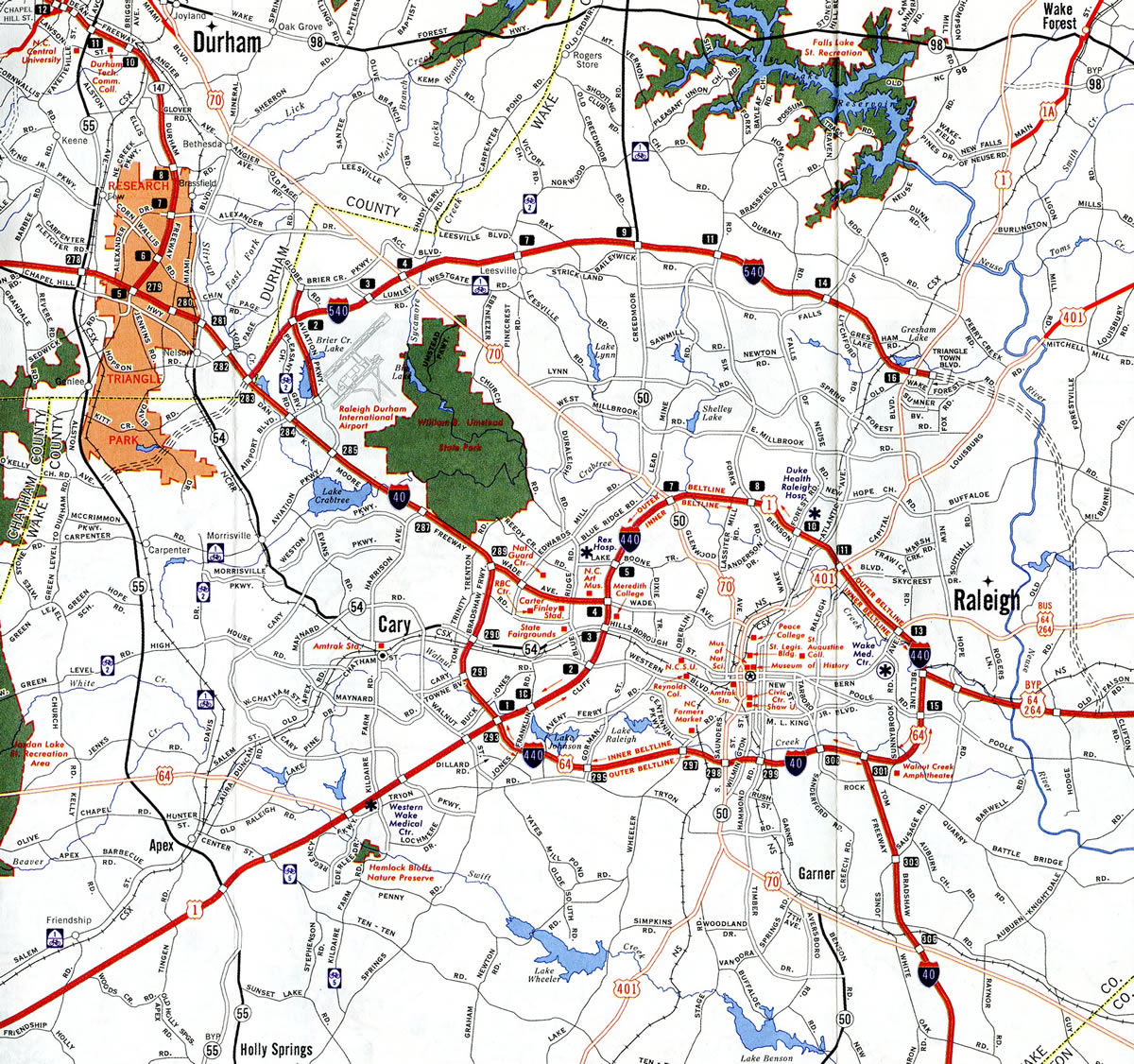

Raleigh, NC - 2006
Raleigh – 2006 North Carolina Official Highway Map

The 3.3 mile section of I-540 opened in August 2002 included eastbound access to Triangle Town Boulevard. The arterial was built to service Triangle Town Center, an enclosed shopping mall opening around the same time as the Northern Wake Expressway.

Further extension of Interstate 540 east began with construction commencing on September 8, 2003.6 A ribbon cutting ceremony held on January 16, 2007 preceded the formal opening of the 540 Outer Loop from Capital Boulevard (Exit 16) southeast to U.S. 64/264 (Exit 26) at Knightdale.7 NCDOT resubmitted the 9.5 mile link to Knightdale for Interstate status to the American Association of State Highway Officials (AASHTO) on November 5, 2008. The Federal Highway Administration (FHWA) then granted final approval for the designation on December 22, 2008, expanding I-540 to 26 miles in length.

Further changes took place at the east end, with the U.S. 64/264 bypass around Knightdale redesignated as Interstate 495, a route slated to connect the Beltline in Raleigh with I-95 outside Rocky Mount. NCDOT officially codified their plans to maintain the I-540 designation as part of the request for I-495, despite I-540 concluding with Interstates at both ends. I-495 was subsequently redesignated as Interstate 87, following AASHTO approval of the new route for U.S. 64 between Raleigh and Williamston.

Increasing traffic demands associated with the Northern Wake Expressway fueled expansion activities along Interstate 40 between I-540 (Exit 283) and NC 147 / Durham Freeway (Exit 279). Widening of this stretch to seven lanes was completed by Labor Day weekend in 2003. An eighth lane was added in October 2003. This project was slated to conclude in June 2003, but work to construct bridges for interchange with I-540 and NC 540 extended into 2004.8

North Carolina Route 540

The North Carolina General Assembly approved the creation of the North Carolina Turnpike Authority in 2005. The organization was charged with studying potential corridors for the state’s first modern toll roads and coordinating construction efforts to build them. One of the first projects considered was the Western Wake Expressway, the long planned western component of the I-540 loop around Raleigh. The authority initially sought the authorization for tolls on a loop paralleling NC 55 to the west around Apex and Cary. These efforts took place while construction was underway along a four mile extension of I-540 from I-40 to NC 55.

The Turnpike Authority reversed course with plans for the Western Wake Expressway, instead opting to toll the entire stretch of the 540 Outer Loop south of Interstate 40. Their rational was that the authority also had jurisdiction over the tolled extension of the Durham Freeway (NC 147) under development from I-40 south through RTP to Davis Drive. Had the Authority not requested this change, the new Toll NC 147 would have ended at the toll free section of I-540 being built west to NC 55. The change resulted in a continuous tolled highway.

Federal law prohibits spending of federal money on any tolled Interstate. I-540 was planned as a full Interstate and slated to receive 90% federal funding. However the advent of the tolled Western Wake Expressway changed the funding mechanism for the remainder of the route. As such, the FHWA did not permit NCDOT to designate the new roadway as an Interstate. NCDOT complied and renumbered the initial four mile stretch of I-540 leading southwest of I-40 as part of NC 540, with the tolling prefix applied west of NC 54. This was done to provide continuity with Interstate 540, despite its violation of an internal department rule against using the same number for different types of highways within the state system.

Actions to number the new toll road as NC 540 took place only two weeks before the road was set to open, leading DOT crews to make quick changes on signage posted already with I-540 markers. Additional changes were needed in that the mile markers and exit numbers for NC 540 were found to be 19 miles too low because of a measurement error by the DOT GIS mapping unit for the intended full loop.

Construction on the initial 4.5 mile long section of the Western Wake Expressway began in February 2004. Costing $102 million to build, NC 540 opened from I-40/540 south to NC 55 at RTP near Carpenter on July 14, 2007.9 Tolling along the segment commenced on August 2, 2012 at 12:01 AM, 13 hours after a ribbon cutting ceremony held at the Outer Loop interchange with NC 55 for the opening of Toll NC 540 south to U.S. 64 at Apex as part of the TriEx. The TriEx opened previously as a 3.4 mile extension of NC 147 south from I-40 through RTP to NC 540 in January 2012.10 NC 147 was renumbered to NC 885 when Interstate 885 was established along the Durham Freeway north of I-40 in 2022.

Another 5.8 miles of the Triangle Expressway were completed on December 20, 2012 at a cost of $30 million to $40 million under budget. This extended Toll NC 540 south to NC 55 just north of Holly Springs (Exit 54). Tolling commenced here on January 2, 2013, as interoperability agreements for N.C. Quickpass electronic tolling with Florida and Georgia were finalized. Work on the 18.8 million, $1.1 billion TriEx commenced in 2009.11

East End I-87 US 64 US 264 – Knightdale, North Carolina

I-540 East at I-87 US 64 US 264

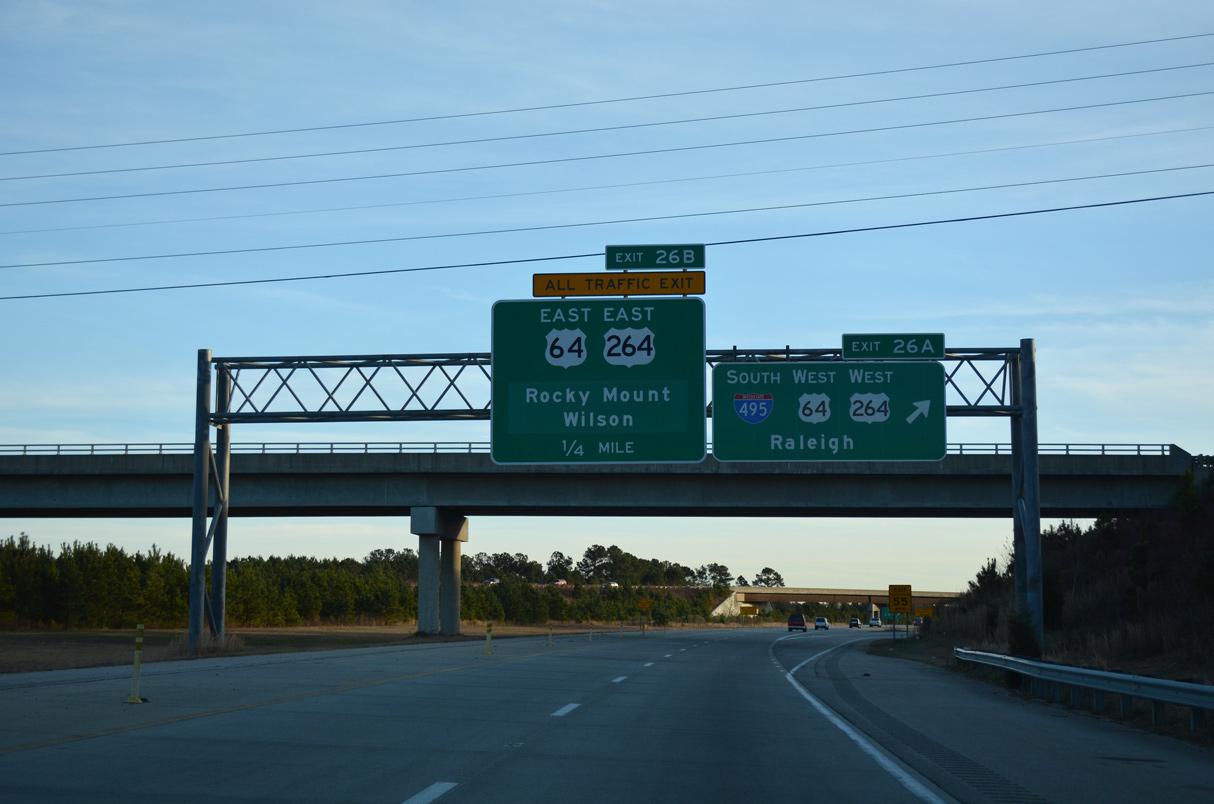

I-540 east at I-87/US 64-264 - Knightdale, NC

I-540 runs south between the Mingo Creek and Churchill subdivisions to a partially built cloverstack (Exit 26) with I-87/U.S. 64-264. The 540 Outer Loop opened southeast from U.S. 1 (Capitol Boulevard) to Knightdale on January 16, 2007. 12/15/16

I-87 North US 64 US 264 East at I-540

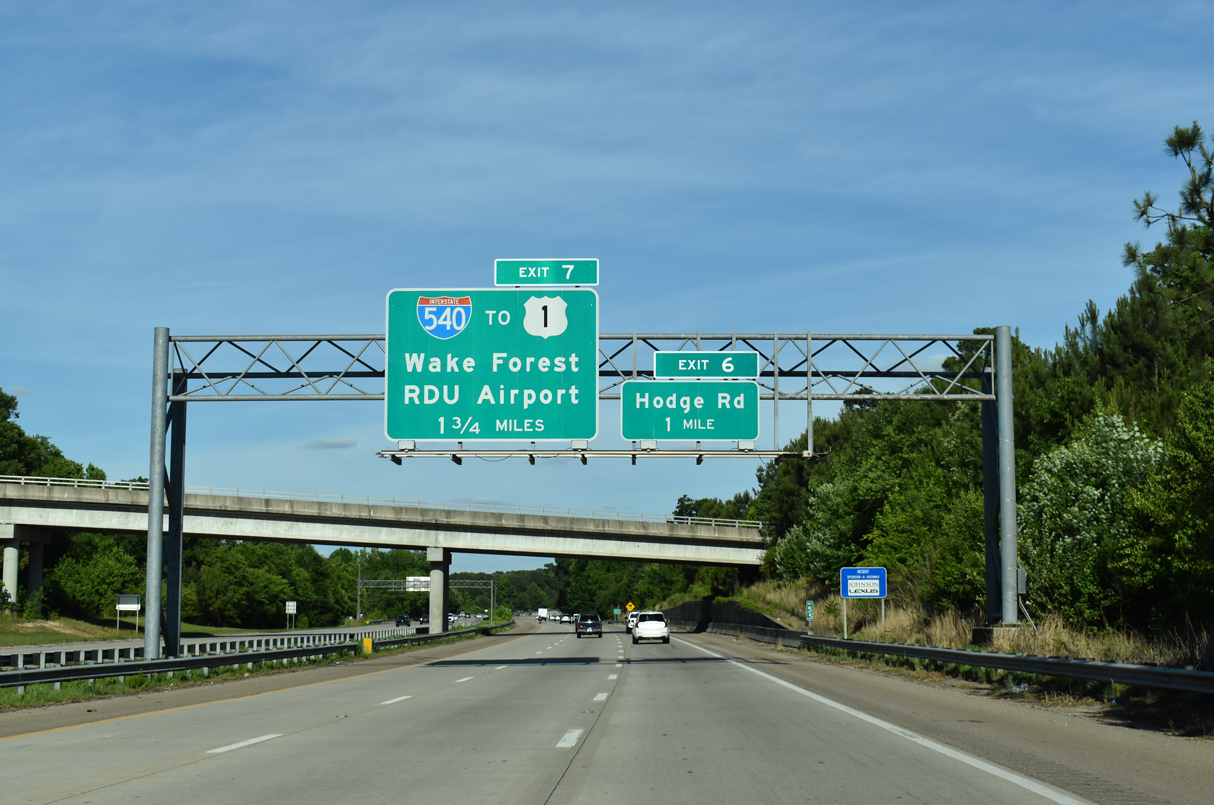

I-87/US 64-264 north at I-540 - Knightdale, NC

I-87/U.S. 64-264 span the Neuse River by Anderson Point Park east ahead of Exit 6 to Hodge Road (SR 2516) and Exit 7 for the Northern Wake Expressway. 05/31/21

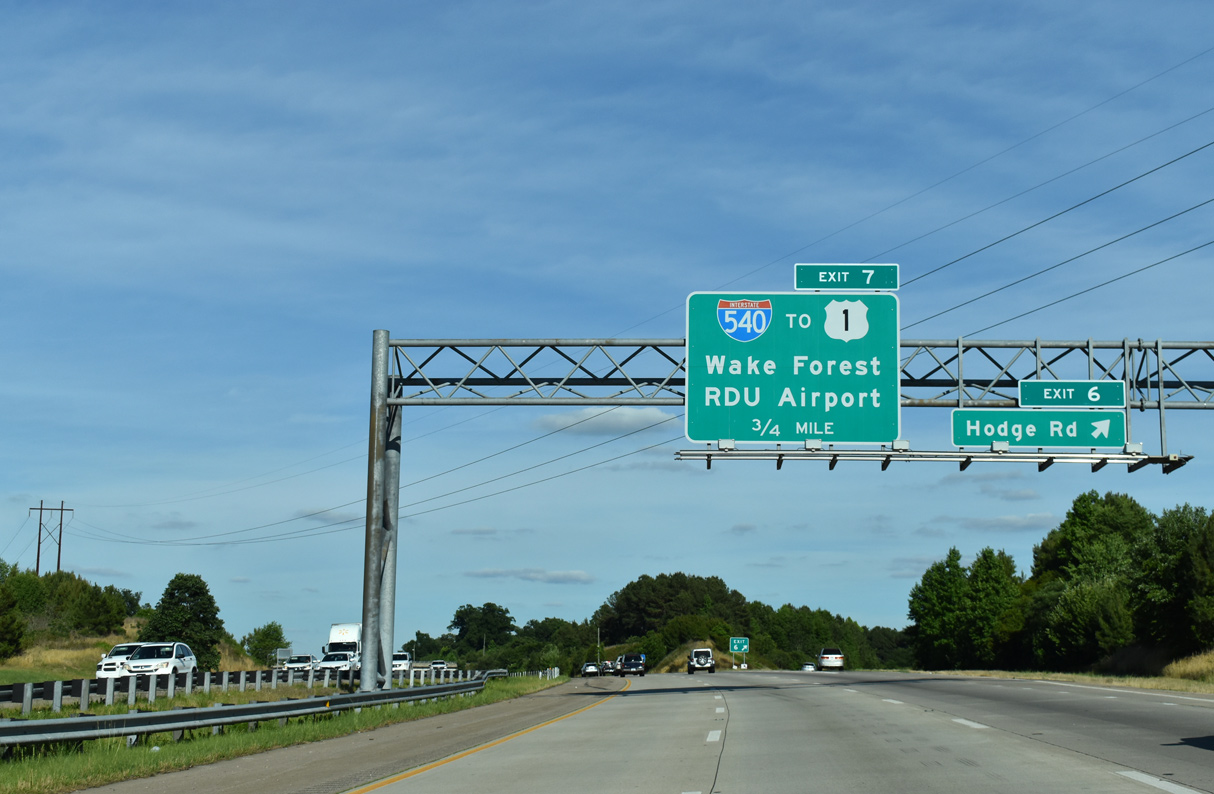

I-87/US 64-264 north at I-540 - Knightdale, NC

I-87/U.S. 64-264 traverse an area of wetlands east of the Neuse River to the folded diamond interchange (Exit 6) with Hodge Road (SR 2516). A high speed flyover follows in 0.75 miles for Interstate 540 west across the north Raleigh suburbs. 05/31/21

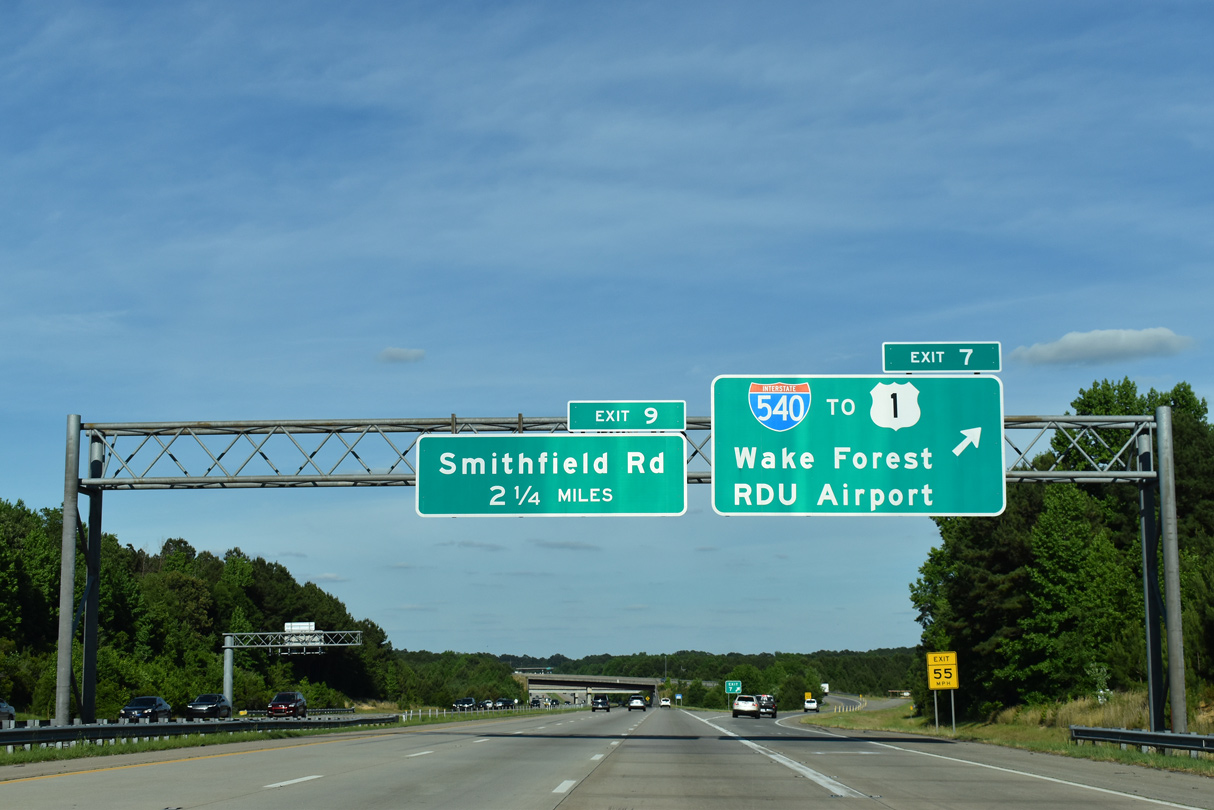

I-87/US 64-264 north at I-540 - Knightdale, NC

Exit 7 departs Interstate 87 north for Interstate 540 leading northwest toward Wake Forest. U.S. 64 advances east as the future I-87 to I-95 near Rocky Mount, while U.S. 264/Future I-587 meets I-95/795 near Wilson. 05/31/21

I-87 South US 64 US 264 West at I-540

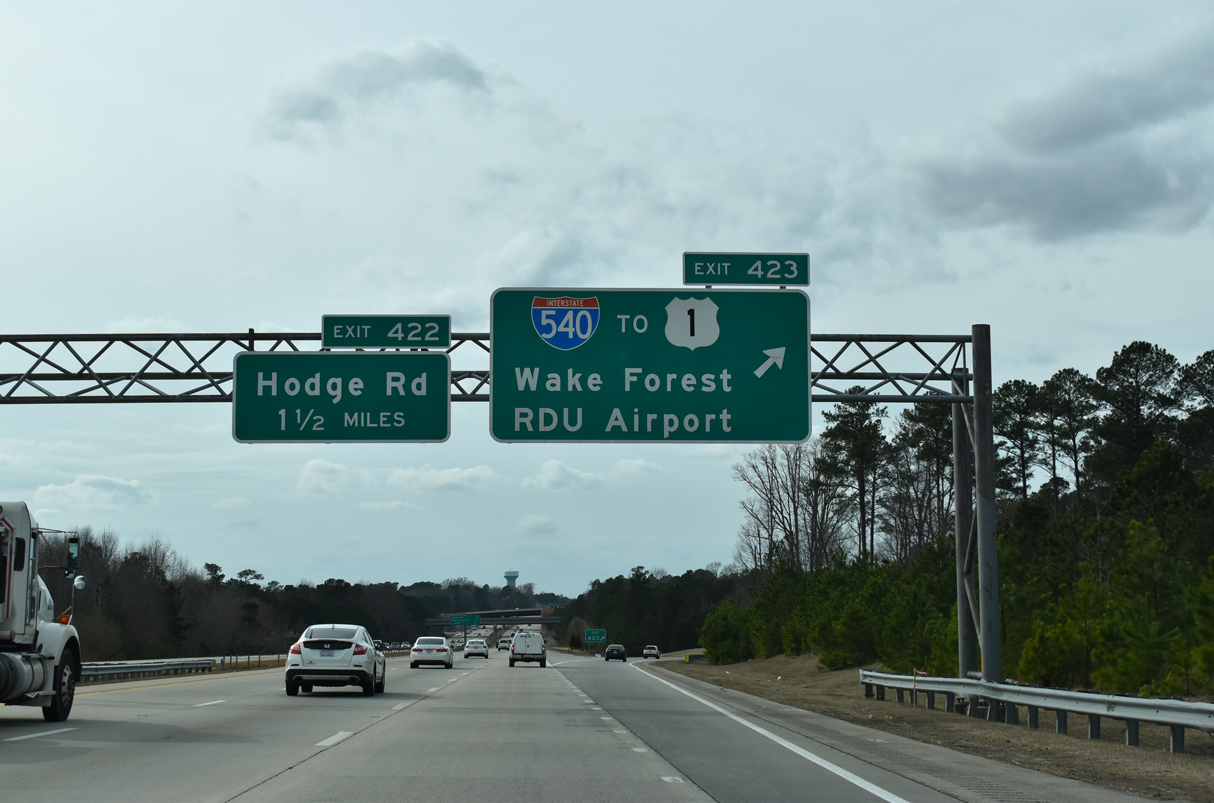

I-87/US 64-264 south at I-540 - Knightdale, NC

I-87/U.S. 64-264 south bypass Knightdale to the south en route to Exit 7 for Interstate 540 (Northern Wake Expressway) west. 02/15/19

West End I-40 NC 540 – Durham, North Carolina

I-540 West at I-40 NC 540

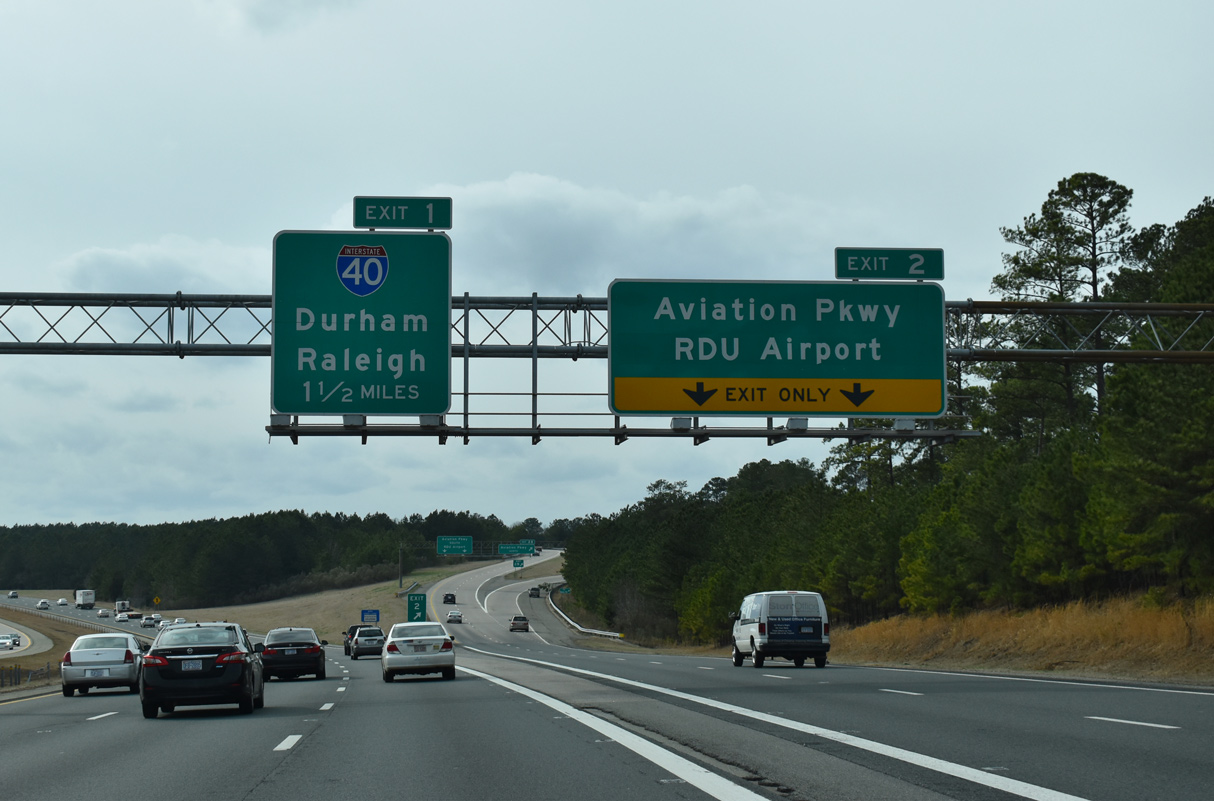

I-540 west at I-40/NC 540 - Raleigh

Two lanes depart from Interstate 540 west for Aviation Parkway (SR 1002) south to the passenger terminal at RDU Airport and north to Globe Road (SR 1644) as the Outer Loop turns southwest to I-40. 02/15/19

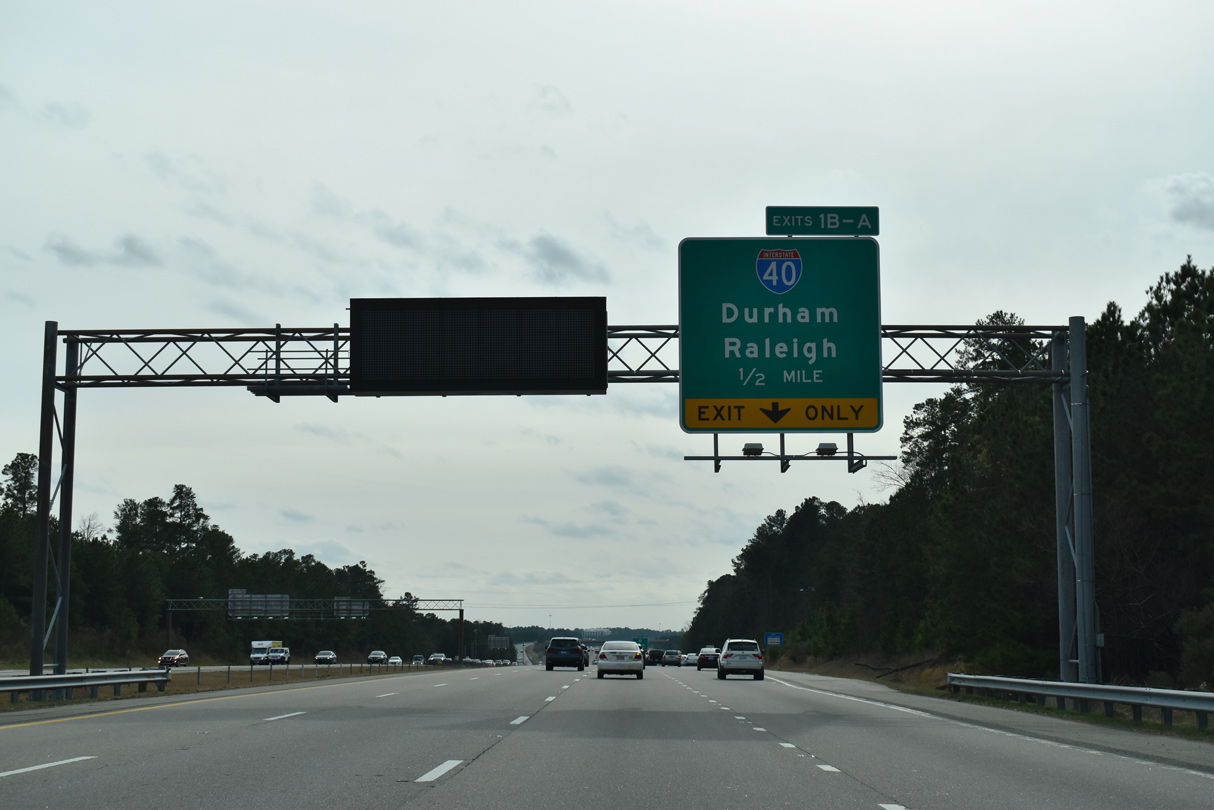

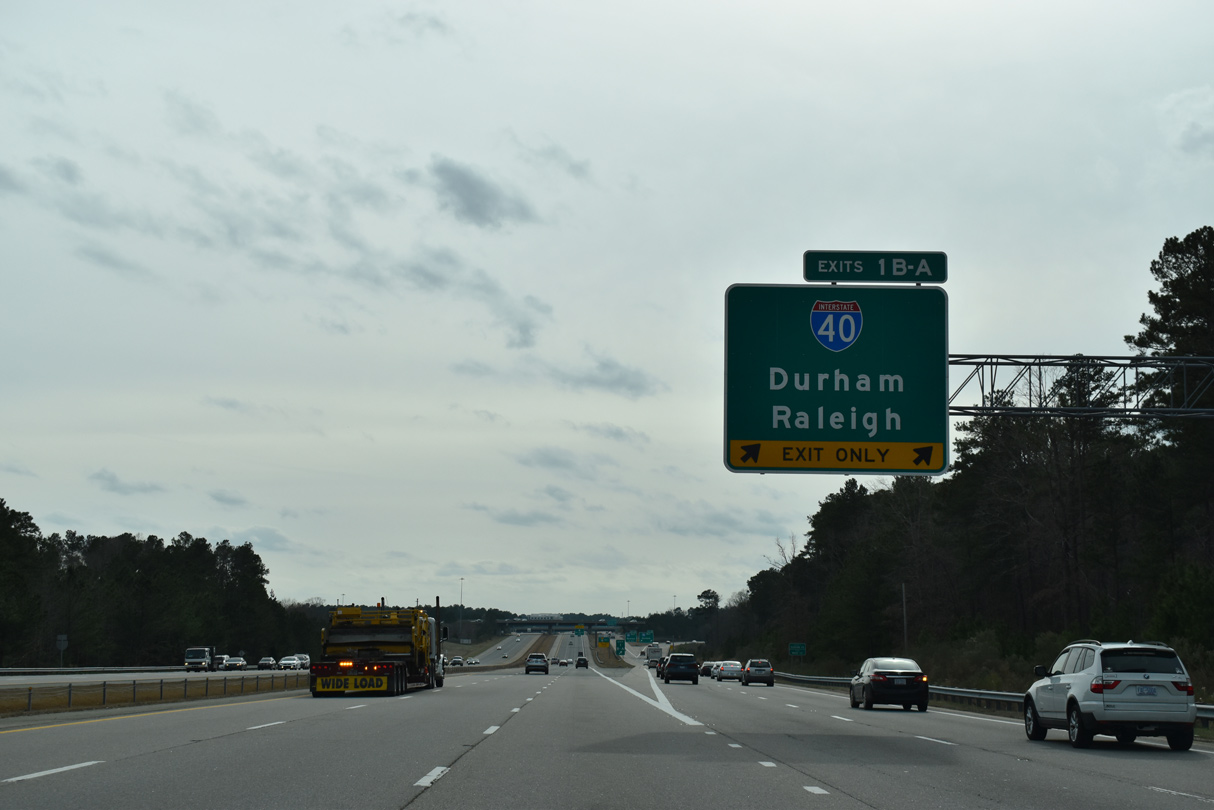

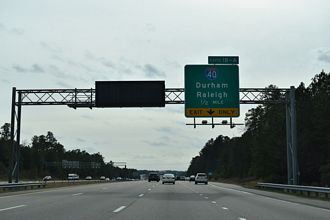

I-540 west at I-40/NC 540 - Durham

Prior to July 14, 2007, all traffic along the westernmost extent of Interstate 540 defaulted to the collector distributor roadway (Exit 1) for I-40 northwest to Durham and southeast back to Raleigh. 02/15/19

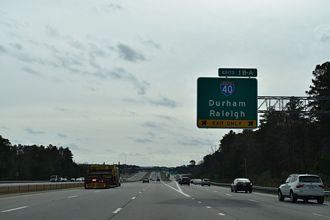

I-540 west at I-40/NC 540 - Durham

Beyond the cloverstack interchange at Exit 1, I-540 transitions to NC 540 (Western Wake Expressway), which was constructed southwest to NC 54 to RTP by February 2004. Exit 1B for I-40 west was expanded to two lanes by 2011. 02/15/19

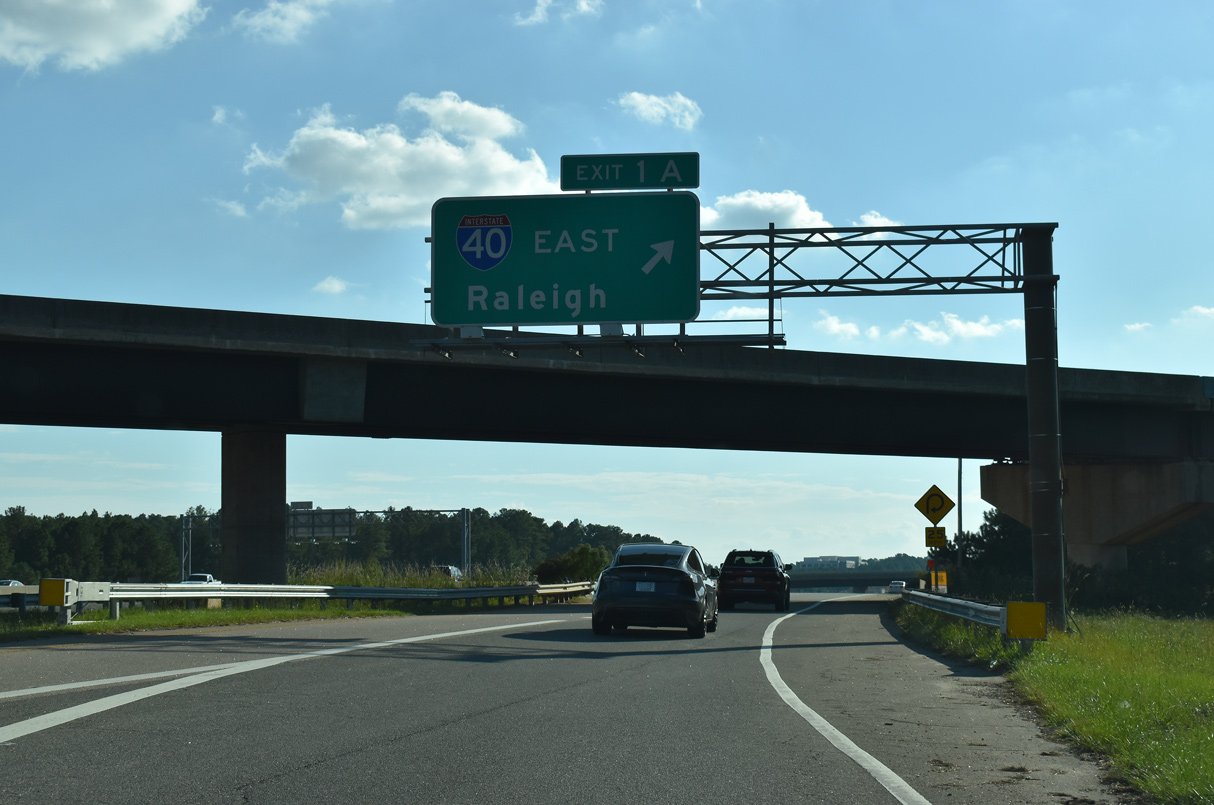

I-540 west at I-40 east in Durham, North Carolina

Exit 1 A loops onto Interstate 40 east to Raleigh and Wilmington from the c/d roadway along I-540 west. 10/12/23

NC 540 East at I-40 I-540

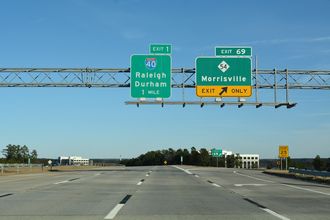

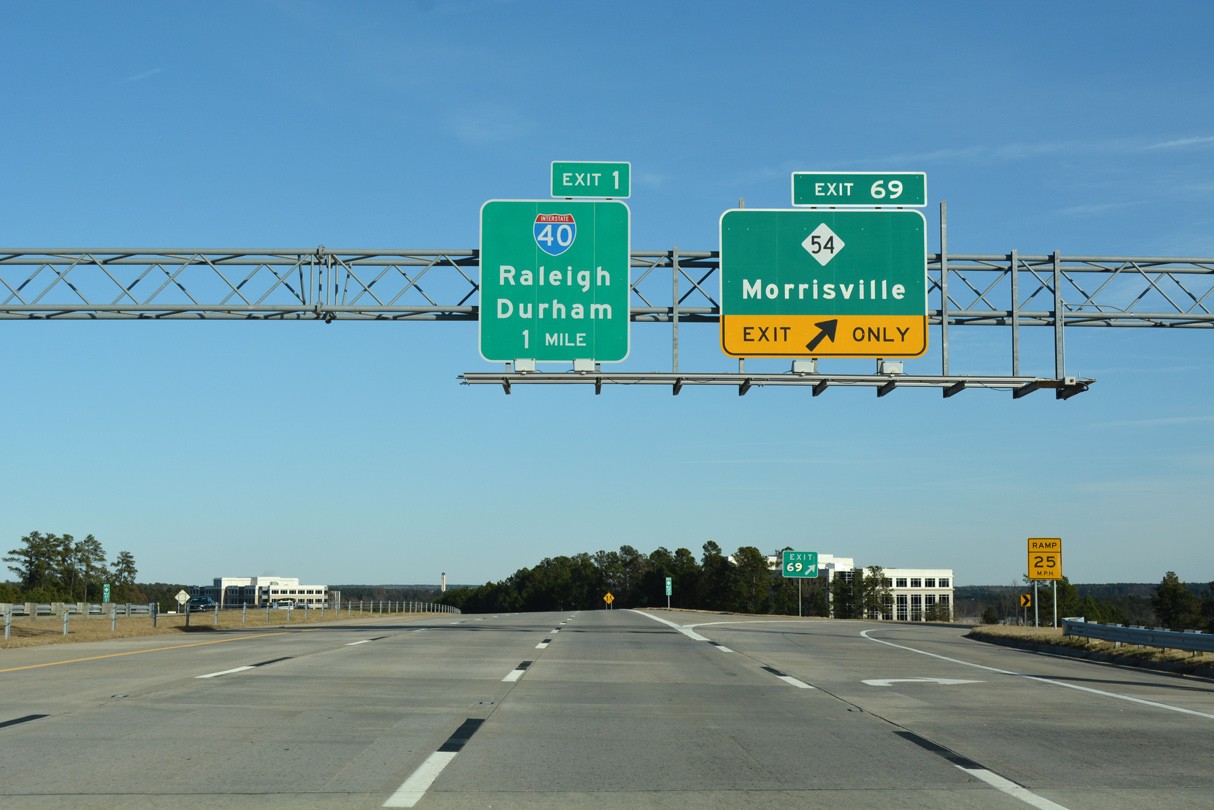

NC 540 east at I-40/540 - Morrisville

Toll NC 540 becomes NC 540 east beyond the folded diamond interchange (Exit 69) with NC 54 (Chapel Hill Road) at the town of Morrisville. 12/15/16

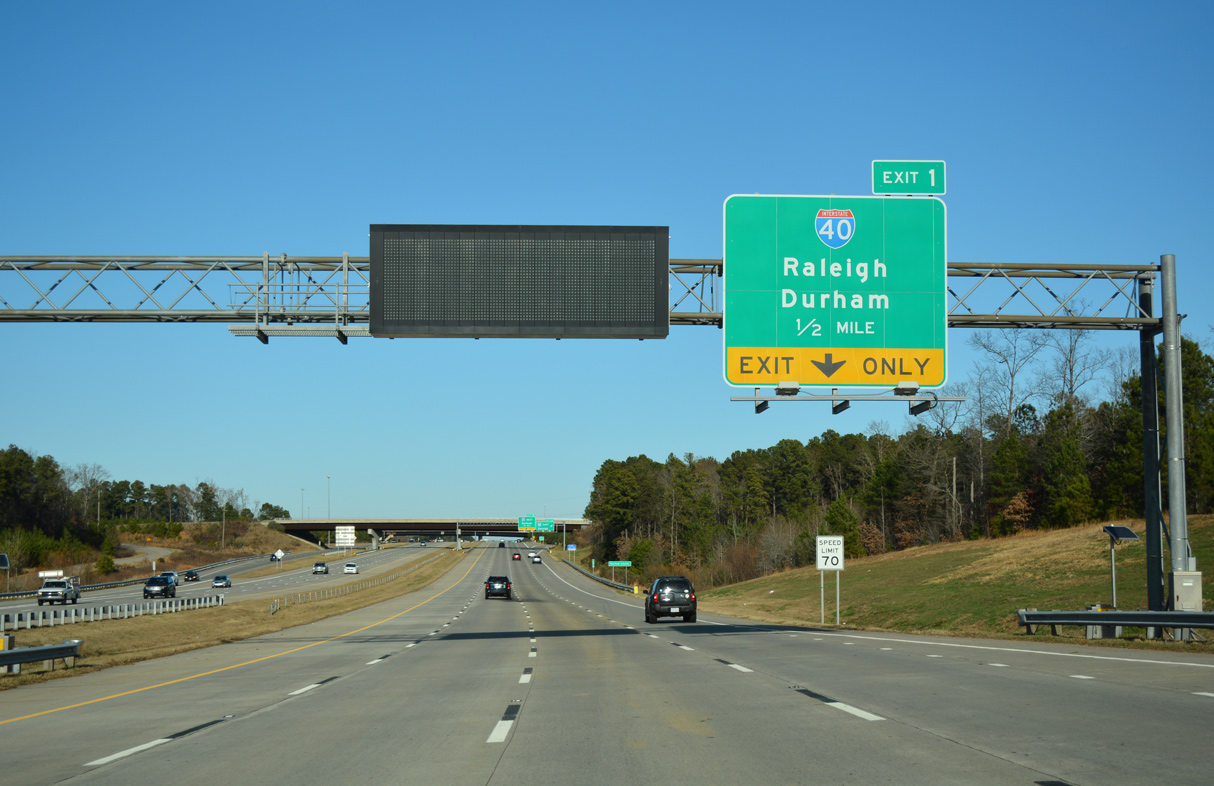

NC 540 east at I-40/540 - Morrisville

An auxiliary lane opens along NC 540 (Western Wake Expressway) leading into the exchange (Exit 1) with Interstate 40. 12/15/16

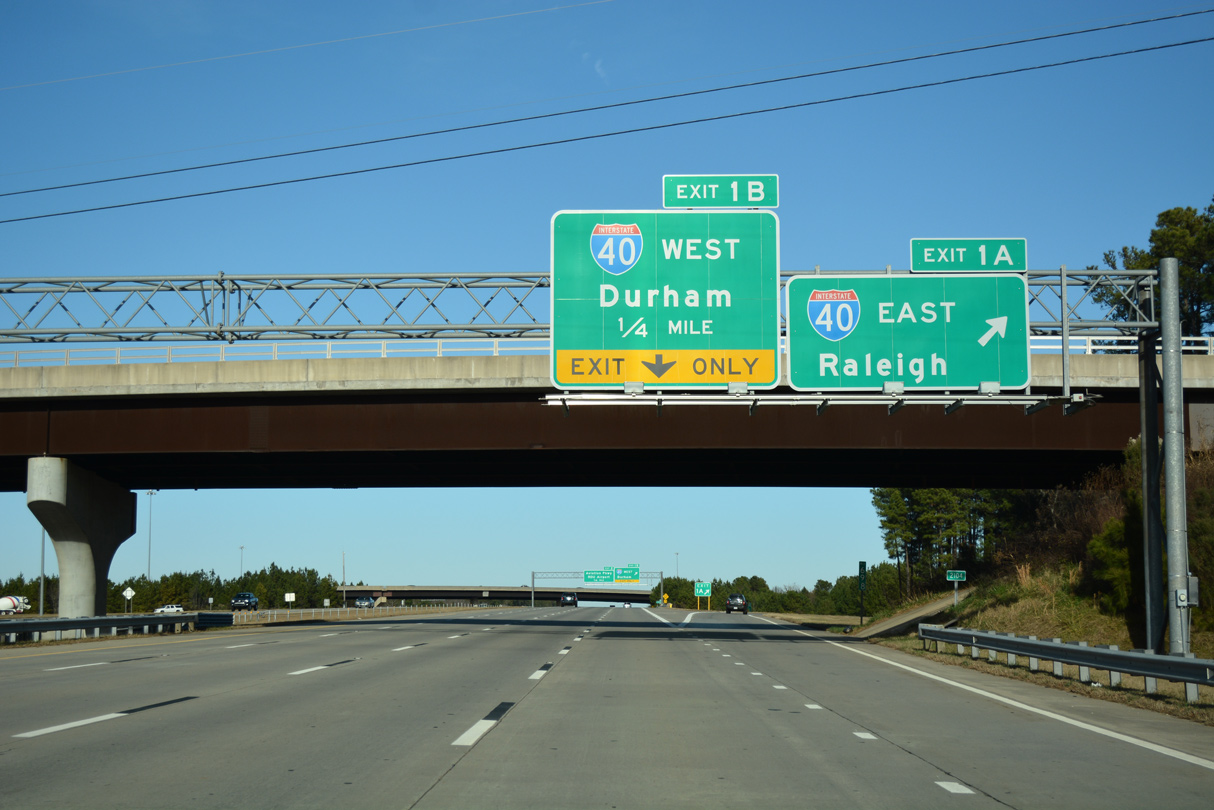

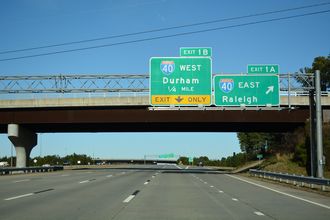

NC 540 east at I-40/540 - Morrisville

Exit 1A departs NC 540 east for Interstate 40 to central Raleigh. I-540 begins beyond the Slater Road (SR 2104) overpass. 12/15/16

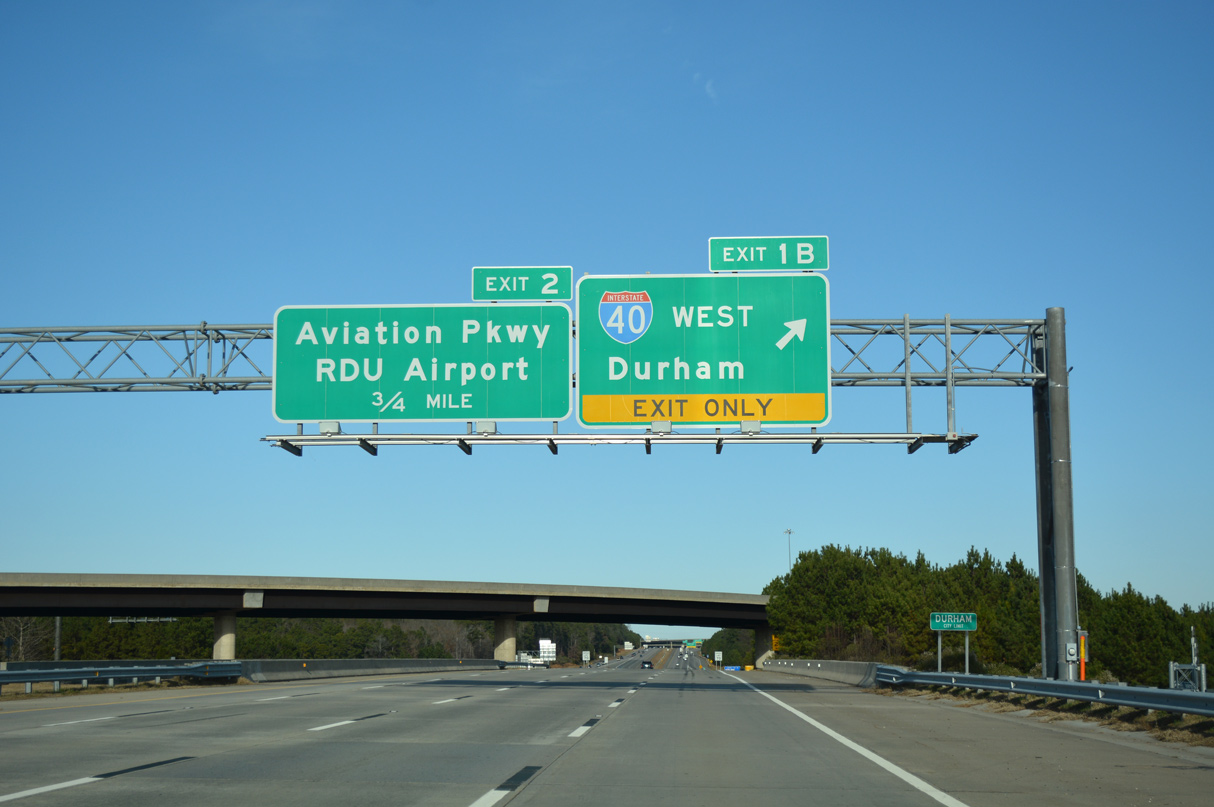

NC 540 east at I-40/540 - Durham

Exit 1B loops onto I-40 west ahead of RTP and the city of Durham. I-540 runs northeast to U.S. 70 (Glenwood Avenue) by the Brier Creek community in northwest Raleigh. 12/15/16

I-40 East at I-540 NC 540

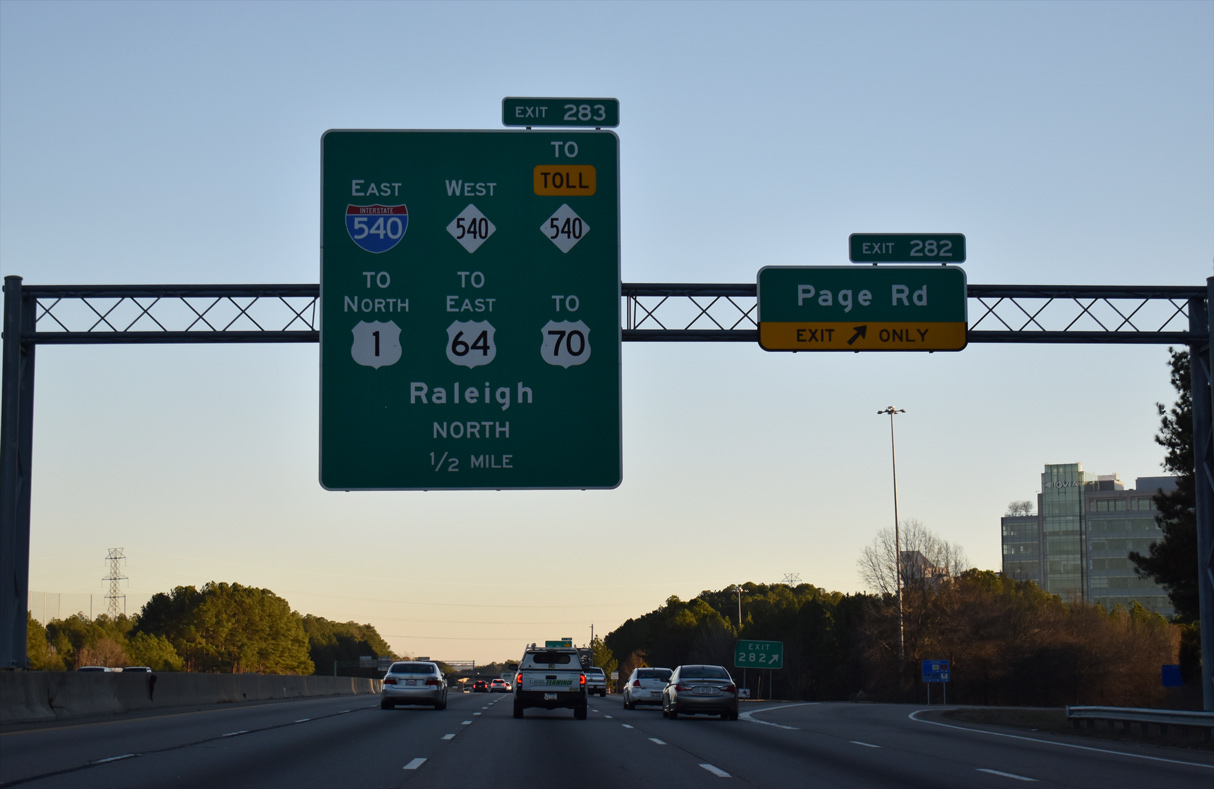

I-40 east at Page Road, a half mile from I-540/NC 540.

Interstate 40 heads southeast from Research Triangle Park (RTP) to Page Road (SR 1973) and I-540/NC 540 (Western Wake Expressway). 12/27/22

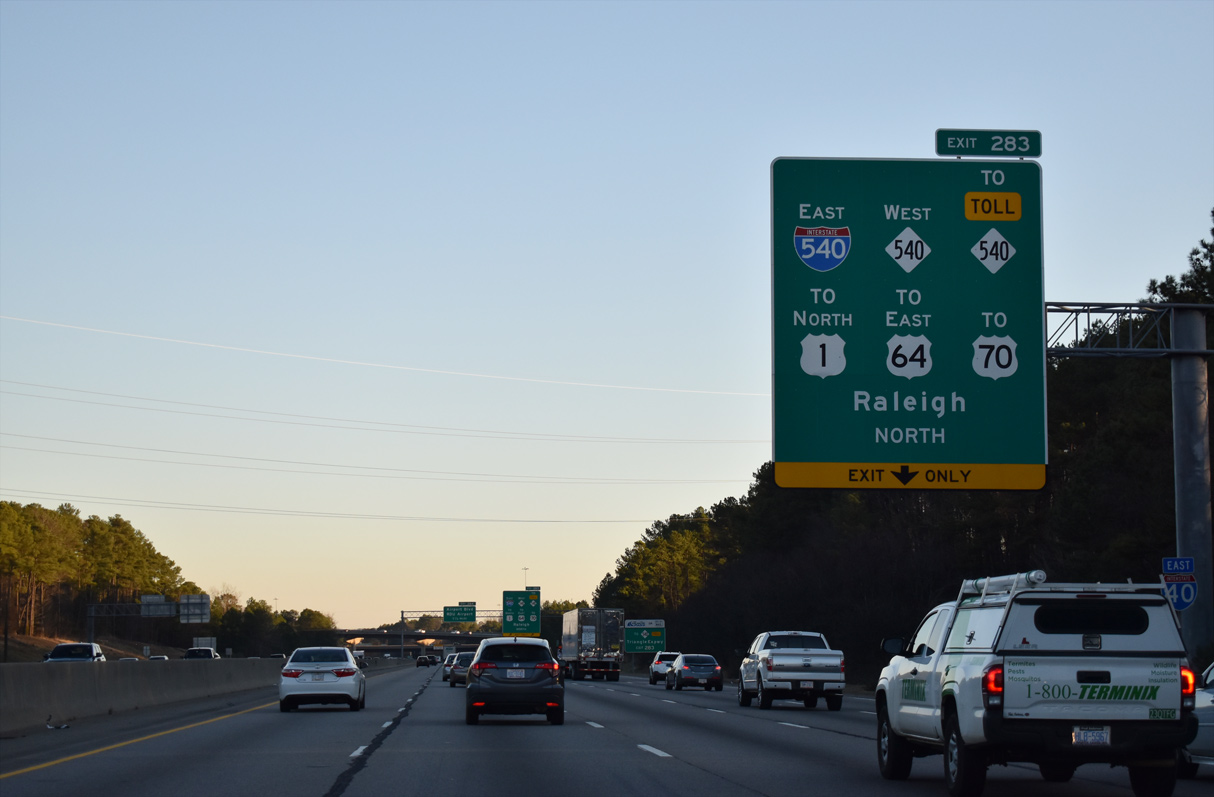

I-40 east ahead of I-540 east to Wake Forest, NC.

Exit 283 links I-40 east with I-540 (Northern Wake Expressway) to North Raleigh and Wake Forest and NC 540 west to Morrisville. 12/27/22

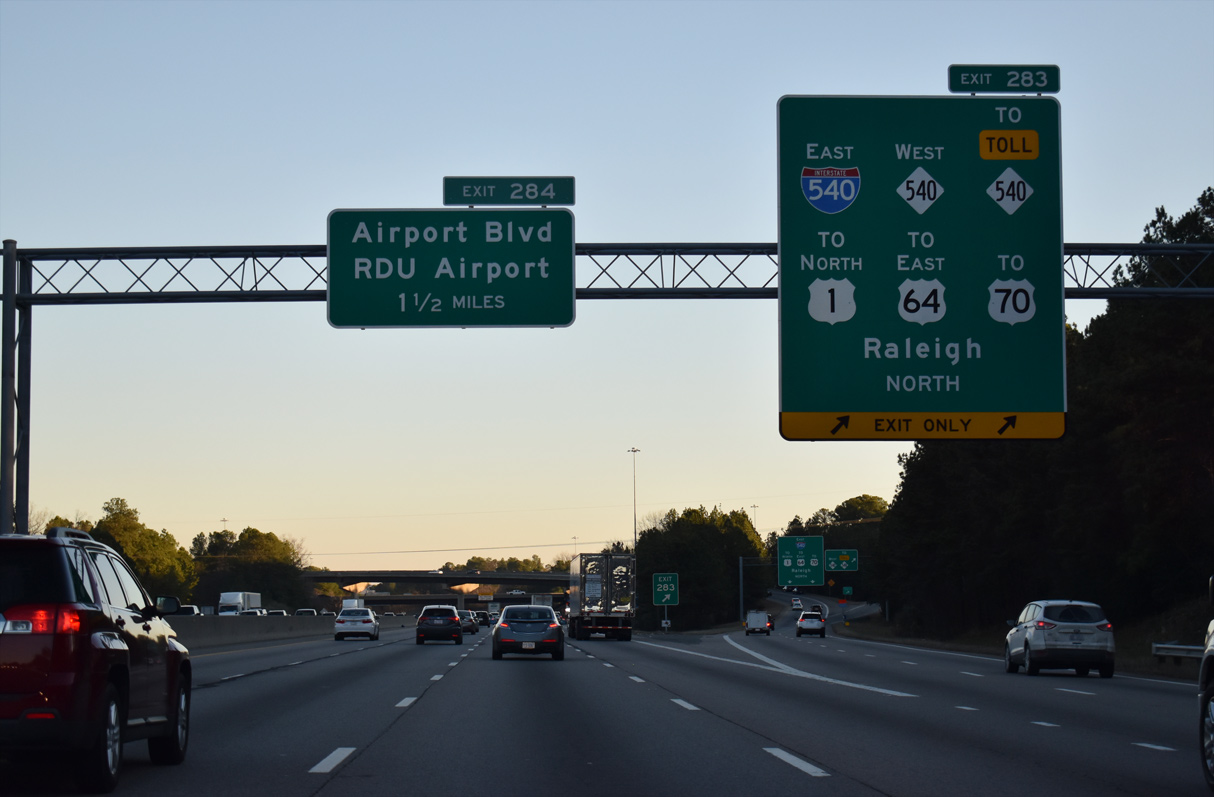

Exit 283 leaves I-40 east for I-540 east and NC 540 west.

Interstate 540 (Northern Wake Expressway) encircles the north side of Raleigh from south Durham to I-87/U.S. 64-264 at Knightdale. Toll NC 540 extends the Triangle Expressway south to Apex and Holly Springs. 12/27/22

I-40 West at I-540 NC 540

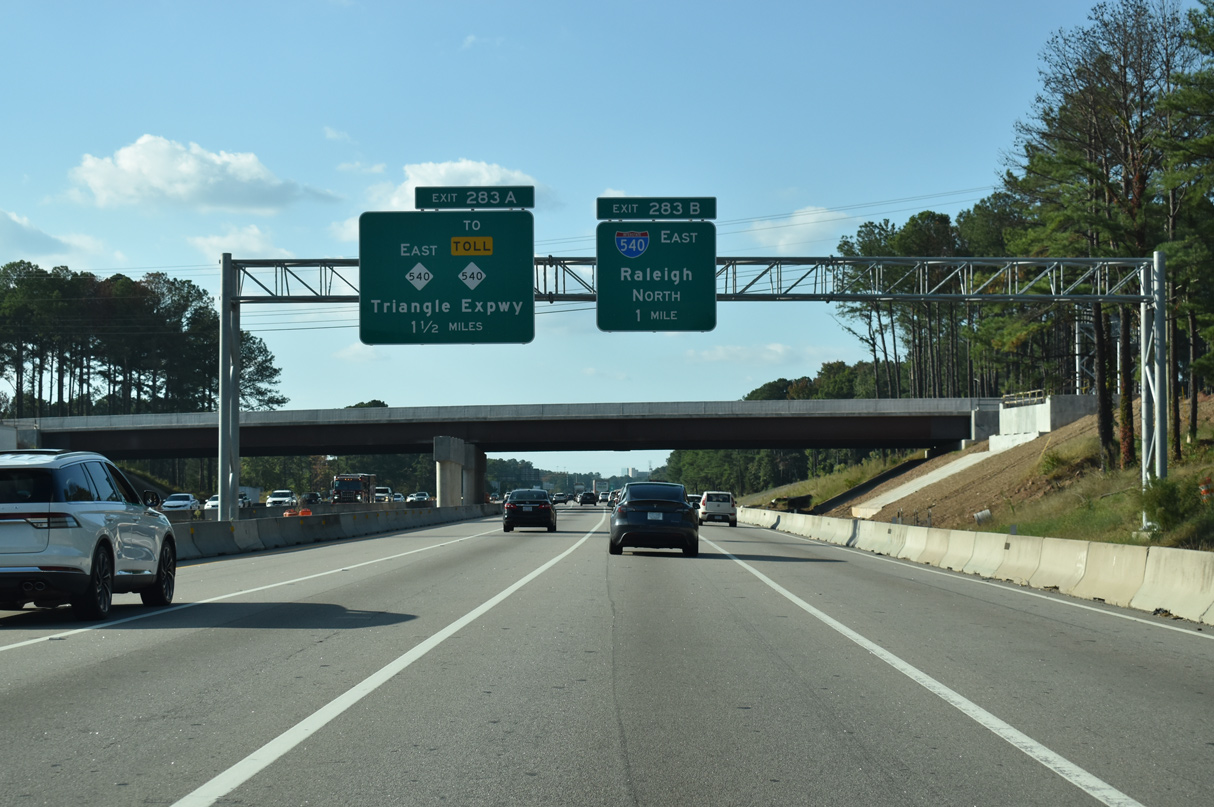

I-40 west at Airport Blvd, one mile from I-540/NC 540 at Morrisville

Project I-5700: Airport Blvd and I-40 Interchange Improvements converts the parclo interchange at Exit 284 into a DDI. Work also adds an auxiliary lane along I-40 westbound to Interstate 540.<sup>12</sup> 10/12/23

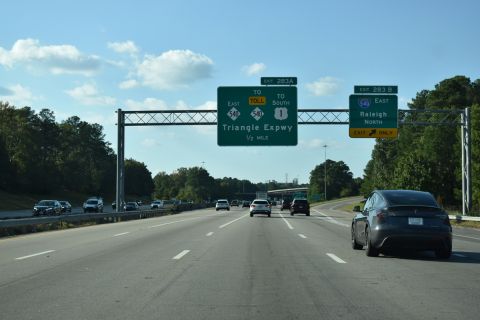

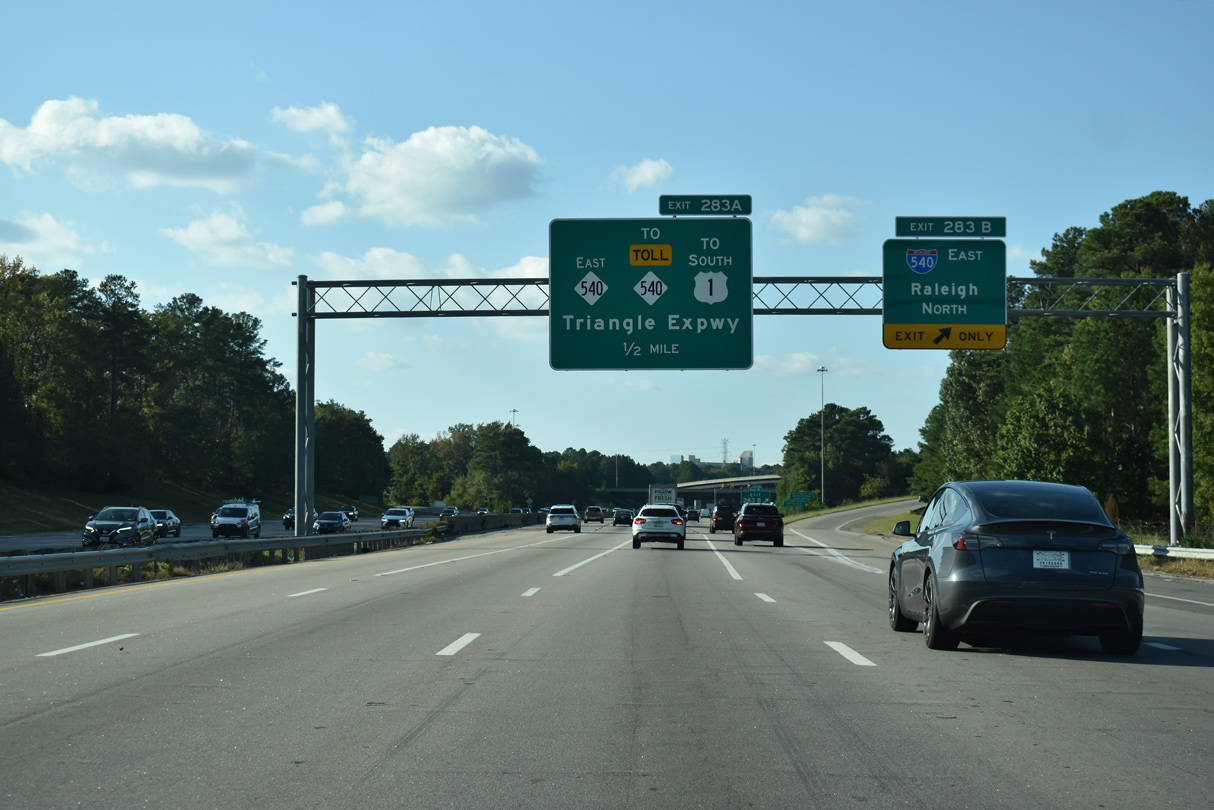

Interstate 40 west at I-540 east to North Raleigh, North Carolina

Interstate 40 advances northwest from Airport Boulevard (SR 3015) to the cloverstack interchange (Exit 283) with I-540 east and NC 540 west. 10/12/23

I-540 West End Throwback

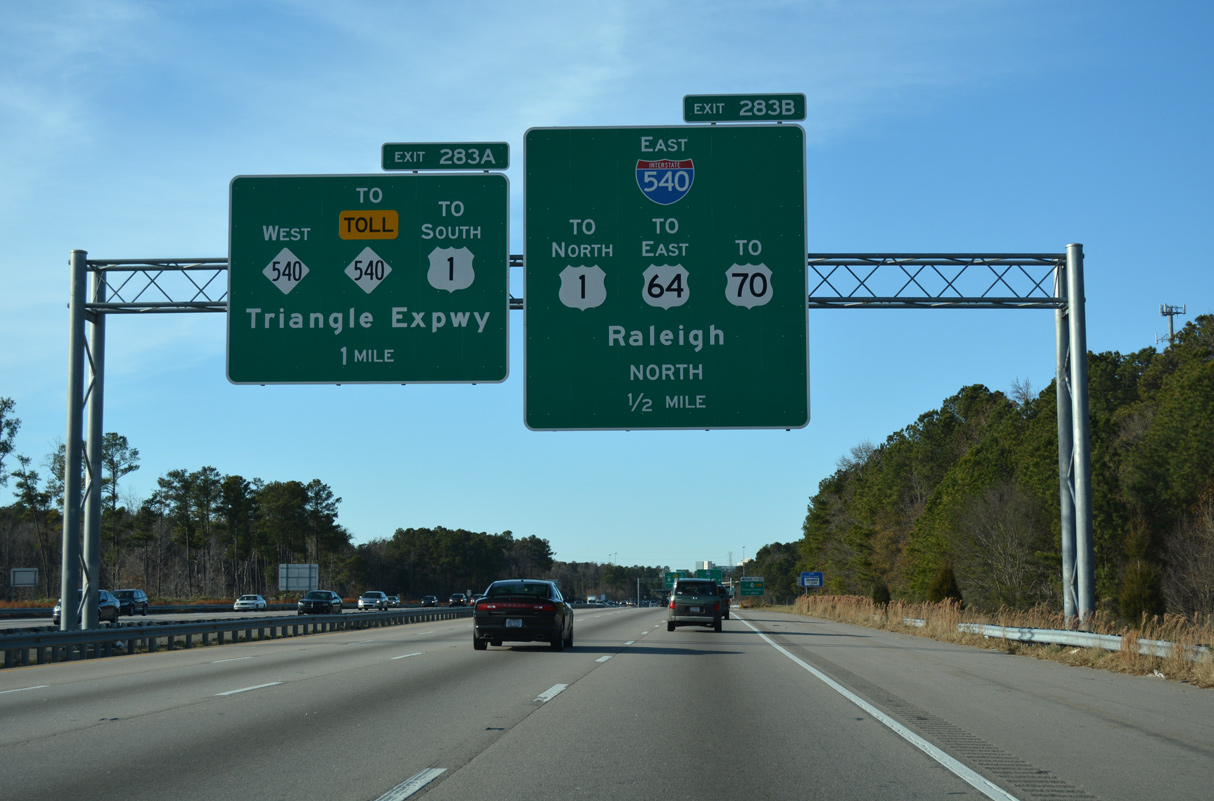

I-40 west a half mile ahead of I-540/NC 540 at Morrisville, NC

Sign replacements made in 2022 removed references to U.S. 1/64/70 for Interstate 540 east at Exit 283 B. 12/15/16

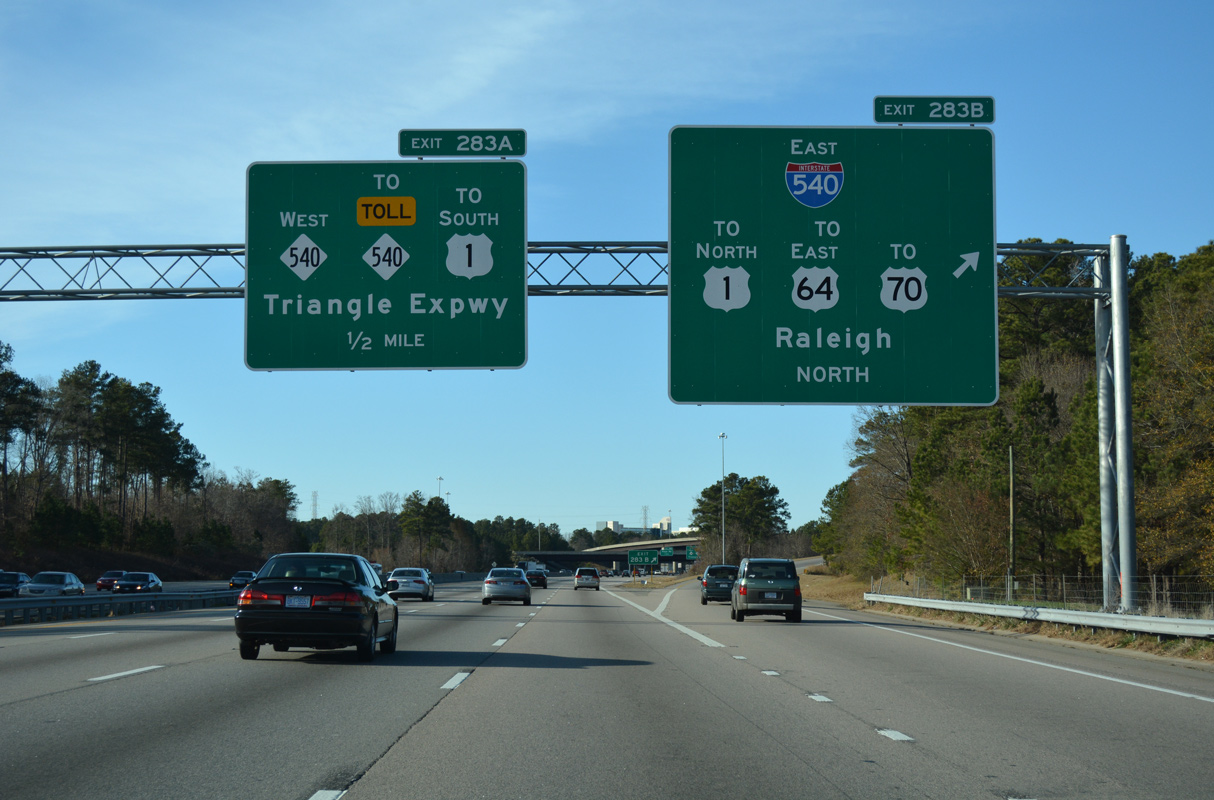

I-40 west at I-540 (Northern Wake Expwy) east in 2016

The original guide signs for Exit 283 B referenced “North I-540 TO U.S. 70” with no control point. Exit 283 A for NC 540 west to the TriEx opened in 2007. 12/15/16

Sources:

Much of the research on this guide was the work of Brian LeBlanc and published on the former Wake County Roads web site. The information reproduced here was done so with his permission.

  1. “540 Outer Loop for southern Wake – To finish 540, DOT must plan to protect mussel – Federal biologists will decide whether highway would jeopardize species’s survival – NCDOT will consider expensive measures to minimize injury to dwarf wedgemussel – One possibility: an elaborate program to propagate mussels in captivity.” News & Observer, May 9, 2016.
  2. “I-540 link to shift traffic.” News & Observer, June 26, 2001.
  3. “Newest section of I-540 soon to offer rush-hour relief.” News & Observer, December 11, 1999.
  4. “Segment links Loop to Creedmoor Road.” News & Observer, December 22, 2000.
  5. “New leg of Outer Loop opens; loop signs soon to say east-west.” News & Observer, August 13, 2002.
  6. “DOT To Start Working On New Section of I-540.” WRAL.com – Traffic, September 5, 2003.
  7. “I-540 link opens today.” News & Observer, January 16, 2007.
  8. “I-40 east lane opens.” News and Observer, September 2, 2003.
  9. Relief Comes Saturday for RTP Commuters.& WRAL TV, July 13, 2007.
  10. “New 540 section opens today – Toll collection starts early Thursday for the 540 Loop south from RTP to Apex.” News & Observer, August 1, 2012.
  11. “Drivers get a new route to RTP – 6-mile TriEx section opens today, completing Holly Springs-to-RTP link.” News & Observer, December 20, 2012.
  12. I-5700: Airport Blvd and I-40 Interchange Improvements. North Carolina Department of Transportation (NCDOT), project description. Page accessed February 1, 2024.

Page updated February 1, 2024.
